LSL Handlebar rise-up Ø22.2

LSL Handlebar rise-up Ø22.2

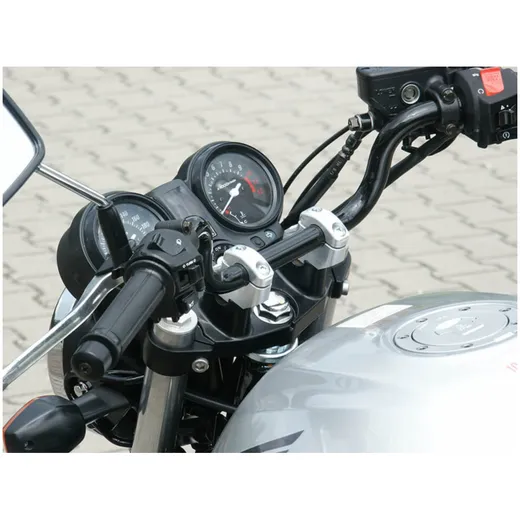

Handlebar riser RiseUp black or silver, for 7/8 inch handlebars (Ø22.2 mm). The handlebar position is moved upwards and 17 mm closer to the rider. So you get a more upright and relaxed sitting position, with ABE, Set.

Handlebar rise-up Ø22.2
handlebar rise-up black or silver, for 7/8 inch handlebars (Ø22.2 mm). The handlebar position is moved upwards and 17 mm closer to the rider. So you get a more upright and relaxed sitting position, with ABE, Set.

LSL handlebar riser RiseUp for 7/8 inch handlebars

clamp blocks which are installed in the standard clamp. By using the milled spacer blocks, the handlebar position is moved upwards and closer to the rider. This will give you a much more upright and relaxed sitting position.

- Material: aluminium
- Material treatment: CNC-milled, anodized
- Offset: 25 mm or 35 mm high, 17 mm closer to the driver
- Fastening: For all motorcycles with 32-35 mm hole spacing and 7/8 inch handlebars (Ø22.2mm)
- Available in black or silver
- With ABE* for many models

- Scope of delivery: 1 set, including mounting screws and part certificates.&ltPlease check before the conversion whether the vehicle intended for the conversion is listed in the ABE attached here!
For each vehicle there are different requirements and conditions which make it possible to convert the clamps.

*The model allocations of the LSL clamping blocks listed in the ABE have been tested for use with the standard handlebars of the vehicle.
The additional use of an LSL accessory handlebar is possible, but may require additional modifications to the vehicle (longer cables or trains) due to a different shape of the handlebar.
Increasing the original handlebars can also lead to additional modifications to the vehicle.&ltCheck whether the following conditions apply to your vehicle (-see ABE):
- Use permitted when using a compensating support for the triple clamp
- with 20 mm longer brake line Use permitted
- with 30 mm longer brake line Use permitted
- with LSL instrument holder Use permitted
- with LSL instrument holder Use permitted
br/&gtIf this is not observed, the operating permit for the vehicle expires!

Conversion should only be carried out by trained specialist personnel.
