LSL heightening clamp 25mm, black

LSL heightening clamp 25mm, black

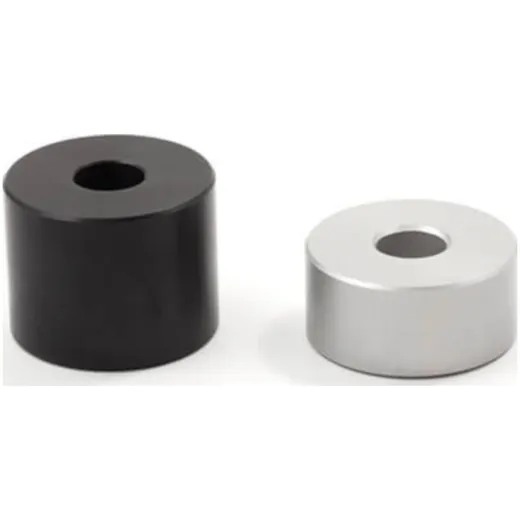

Distance bushes for increasing the height of the clamping block with different offsets and colours

Elevation for X-Bar clamps

These spacer bushes allow the elevation of our X-Bar clamps. They are mounted under the centrally bolted clamps. Please check beforeof the assembly, whether the length of the screws is sufficient!

material: aluminium
material treatment: anodized
position: mounting between fork bridge and X-bar clamps
dimensions: +15 or +25mm
Colour: Available in silver or black.

Supplied with: 1 pair

Note:
When using the spacer bushing set, correspondingly longer screws may be required which are notare included in the scope of delivery.

Tip:
SO DETERMINE THE SCREW LENGTH:
Measure the length so that the original screws on the underside look out of the original clamping blocks. Add to this16 mm (= distance between the screw head support and the lower edge of the LSL clamping block) and, if necessary, the thickness of the selected spacer sleeves.
