LSL LSL clamp kit for: Ducati Scrambler 15, silver clamps

LSL LSL clamp kit Ducati Scrambler 15, silver clamps

Clamp kit Ducati Scrambler 15, available in different colours

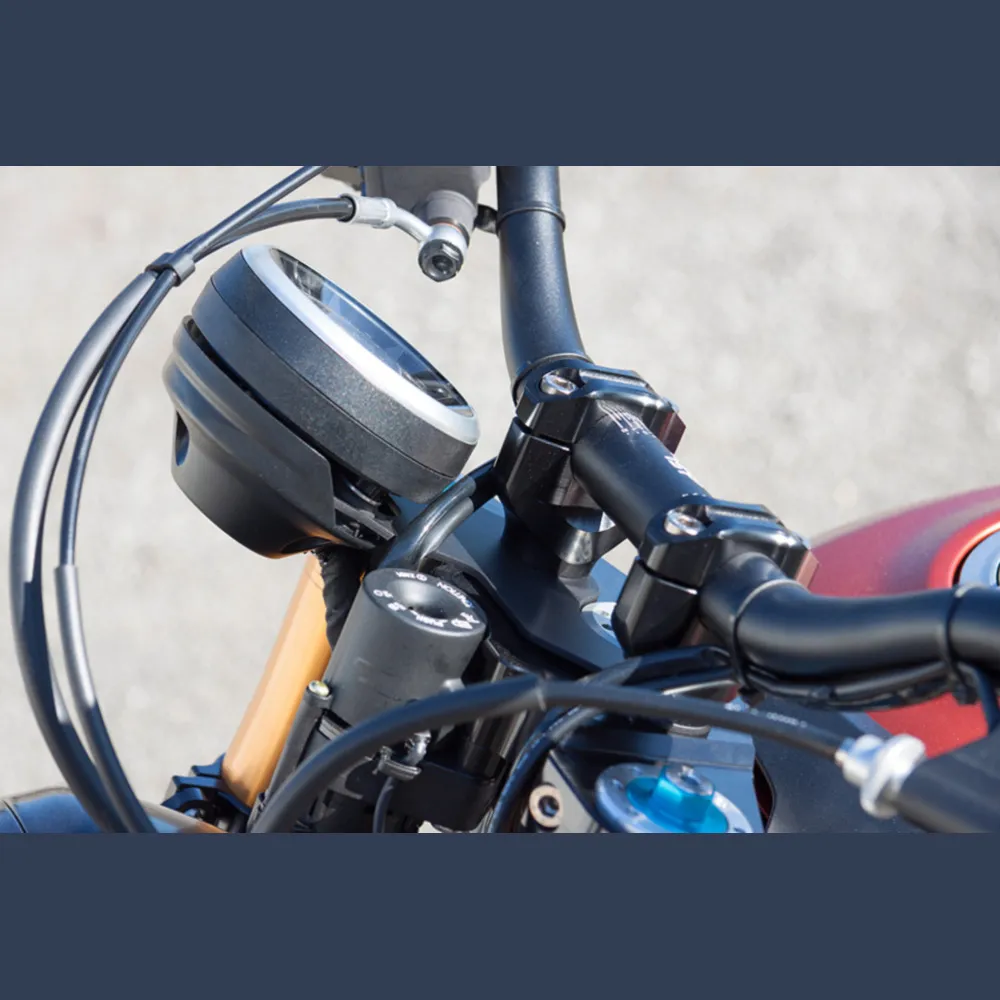

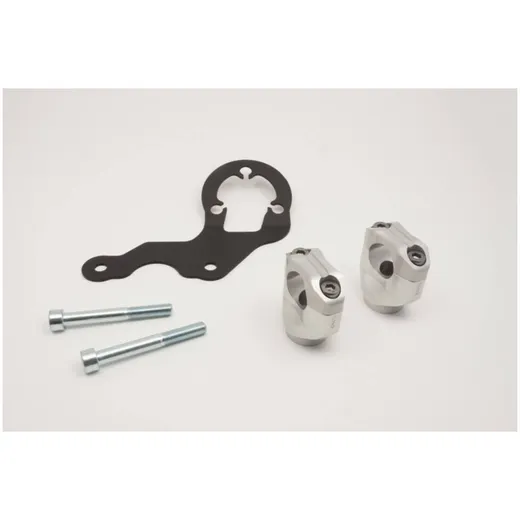

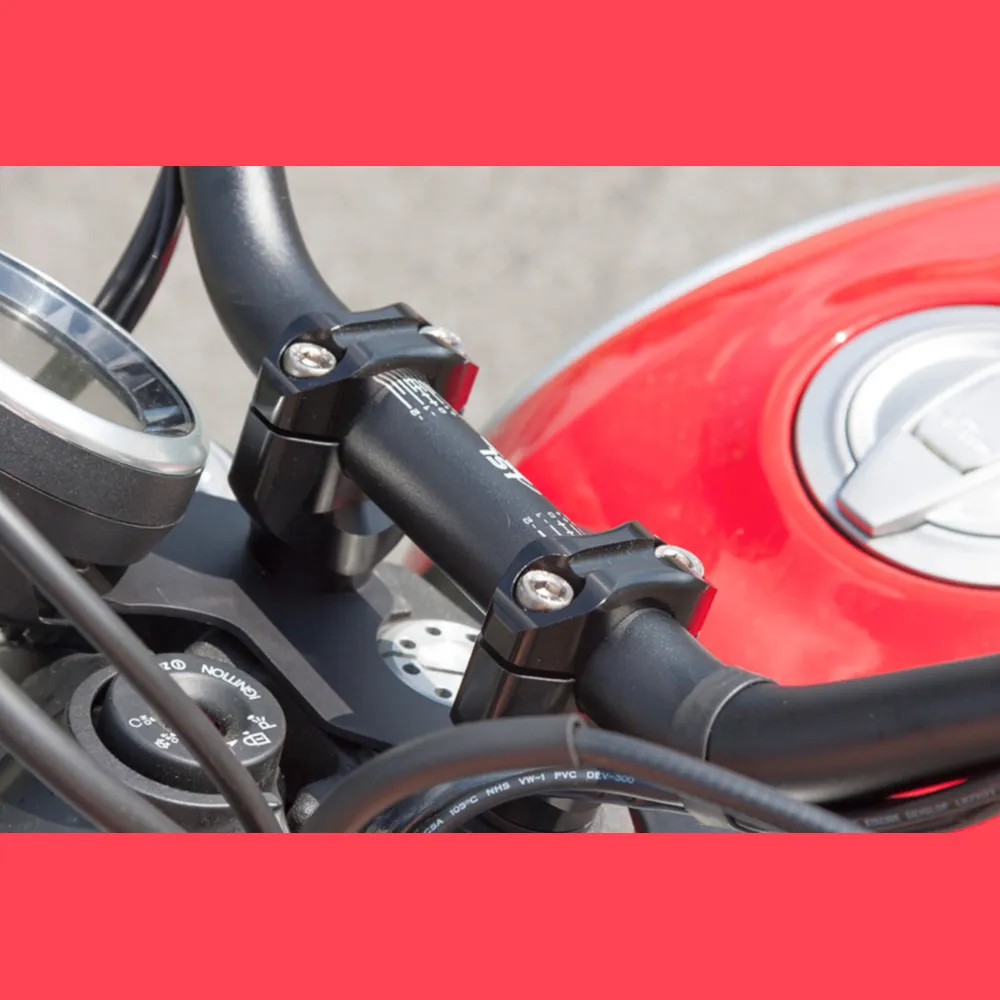

X-Bar clamps (code KM45) silver for 28,6 mm handlebar incl. Dashboard support
fits various Ducati Scrambler models from 2015-.

Material: aluminium
Material treatment: anodized
Adjustment: + 5 mm
Mounting: at original mounting points
Dimensions: 28.6 mm clamping

Our model-specific X-Bar clamps are mounted at the original mounting points. So you can mount an X-Bar handlebar on many models with original 22,2mm handlebar.
For models with standard rubber mounting, this is retained. Depending on the model, the handlebar position changes from -50mm to +30mm, the value for your motorcycle is given under Offset.

ACHTUNG IMPORTANT NOTE: Please check before the conversion, whether the vehicle intended for the conversion is listed in the ABE attached here with!
For each vehicle there are different requirements and conditions that allow the conversion of the clamping blocks.
The model assignments of the LSL clamping blocks listed in the ABE are tested for use with the series handlebar of the vehicle.
The additional use of an LSL accessory handlebar is possible, but may require additional modifications to the vehicle (longer lines or cables) due to a deviating shape of the handlebar.
Elevating the original handlebars may also result in additional modifications to the vehicle.
Check whether the following conditions apply to your vehicle (-see ABE):
- Use permissible with the use of a compensating pad for the triple clamp
- Use permissible with 20 mm longer brake line
- Use permissible with 30 mm longer brake line
- Use permissible with LSL instrument holder

If not observed, the type approval for the vehicle expires!

The following items are compatible with this product: 28.6 mm handlebar X-Bar
