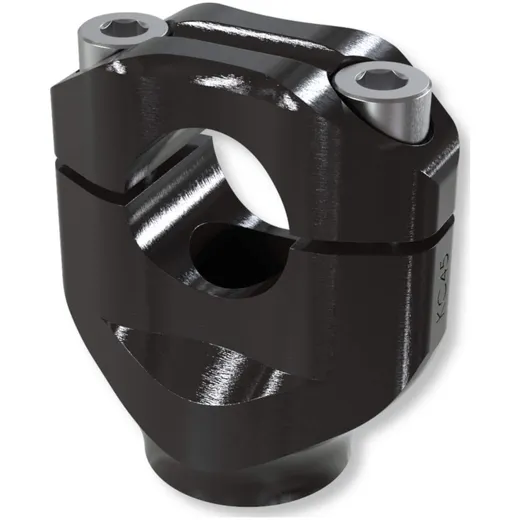

LSL Universal clamp kit Ø 25.4 mm 161X045SW

LSL Universal clamp kit Ø 25.4 mm

Clamp kit Ø 25.4 mm, available in different colours and screw lengths.

Universal clamping blocks Handlebar-Ø25.4 mm

For the use of handlebars with a clamping diameter of 25.4 mm LSL offers the necessary clamping blocks for screwing into the original fixing points of the upper triple clamps. The clamping blocks are CNC-milled from high-quality solid aluminium. They replace the standard clamping blocks to achieve a different height and a better appearance. They can be mounted in the original mounting points with centered M10 x 1.25 mm screws can be mounted. For models with rubber bearings, this is retained. &ltNote: Please check if your vehicle is listed in the ABE and find out the required bolt length. &ltAttention: This item is only unregistered if your motorcycle is assigned to the KC45 clamp in the enclosed ABE and in compliance with all regulations.
For vehicles that are not listed in the model list, an approval by acceptance according to the model list is required. § 19(2) StVZO possible.

Measure the length of the screws:
Measure the length of the original screws that are protruding from the original clamping blocks. That means the usable screw length L, as shown in the technical sketch.

Select the desired colour and required usable screw length.

material: aluminium
material treatment: CNC-milled, anodized
fastening: Central screw connection at the standard fixing points M10 x 1.25 mm
offset: + 45 mm
Dimensions: 1 inch clamp

Scope of delivery:
- Clamps (KC45) 1 pair
- Screws M8x25 4 pieces
- Screws M10x1.25 2 pieces in the selected length
- Washers M10 2 pieces
- Nuts M10x1.25 (self-locking) 2 pieces
