HIGHSIDER control display instrument, aluminium housing, also suitable for installation, tinted glass, 5 displays. Optional handlebar clamp: art.no. 305-011

HIGHSIDER control display instrument

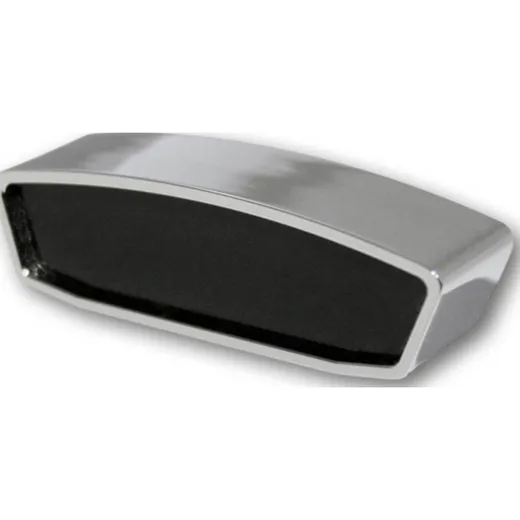

Control display instrument with a CNC-milled aluminum housing and strongly tinted glass for installation. In the operating mode, the symbol corresponding to the function is displayed.

An overview of the displays:
2x turn signals
High beam
Neutral
Oil pressure

That fits you the extensive accessories of HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.

Dimensions:
Width: 57 mm
Height: 17.5 mm
Depth: 18 mm

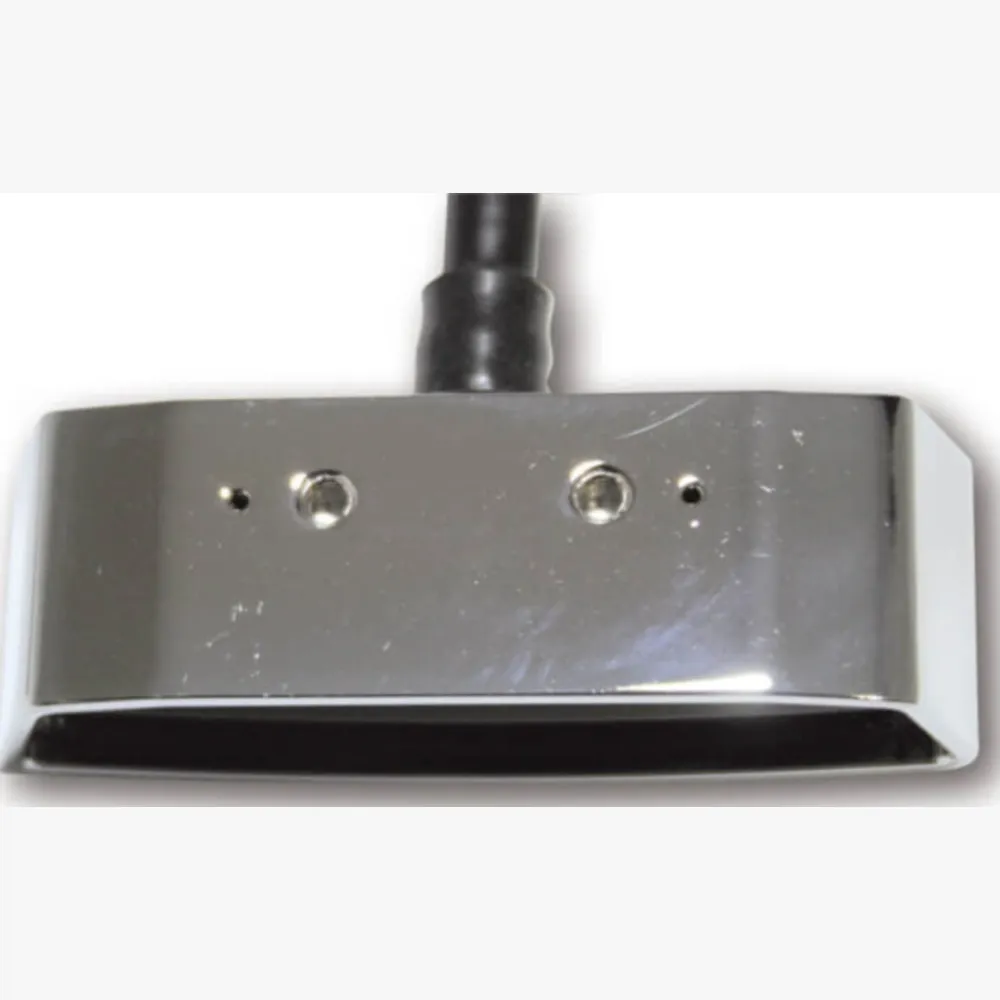

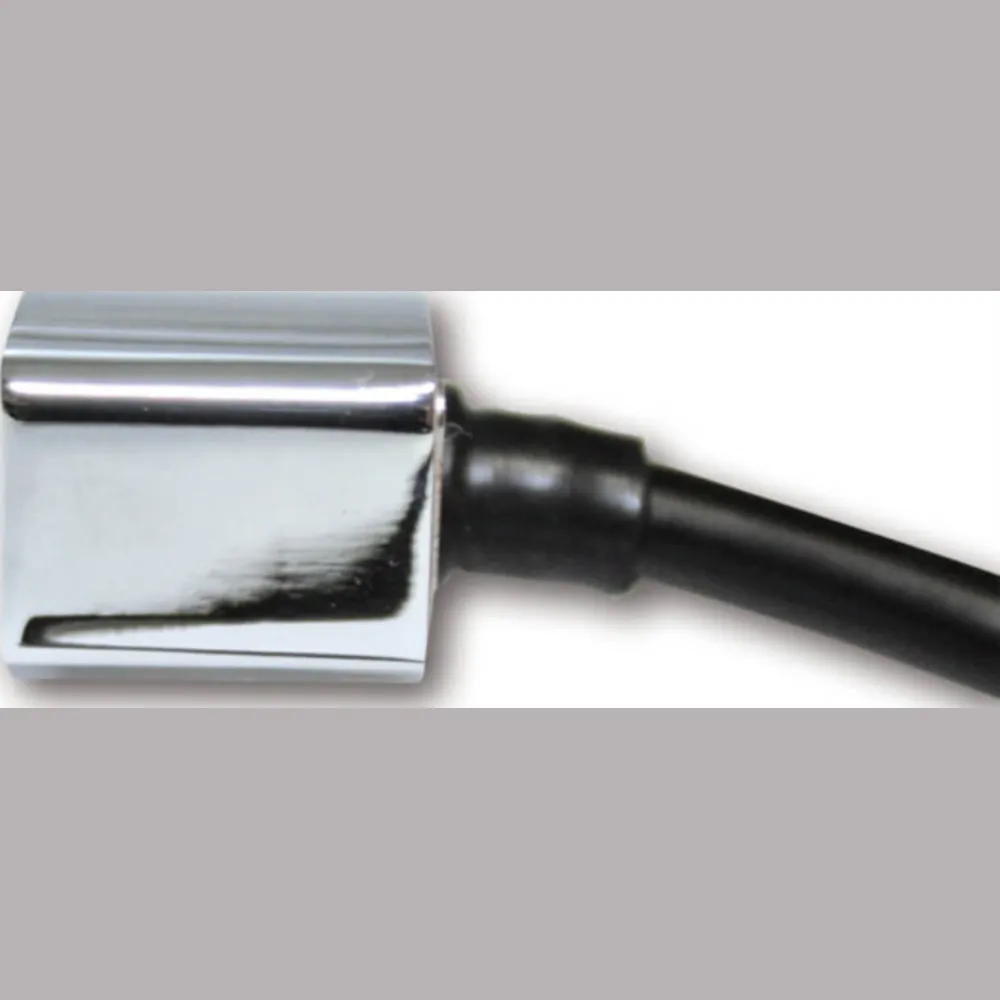

Connections:
black cable (ground) + orange cable = flasher left
black cable (ground) + blue cable = flasher right
black cable (ground) + yellow cable = high beam
br/&gtWhen Neutral or If oil pressure is negative:
Connect grey cable to neutral signal and brown cable to 12V (+)
Connect green cable to oil pressure signal and purple cable to 12V (+)

If neutral or Oil pressure is switched positive:
Connect brown cable to neutral signal and grey cable to ground (-)
Connect violet cable to oil pressure signal and green cable to ground (-)

Scope of supply: 1 piece

Optionally orderable:

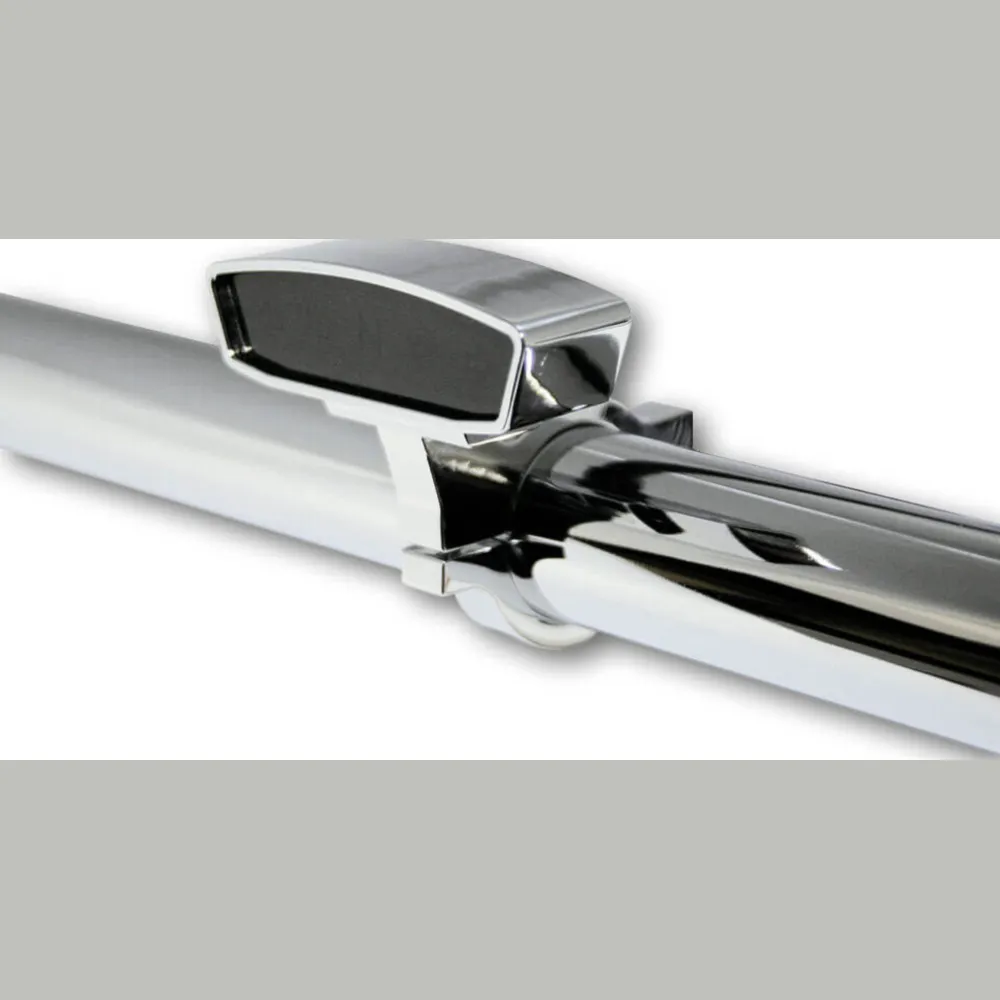

Fitting aluminium retaining clamp for 1 inch (25.4 mm) and 7/8 inch (22 mm) handlebars: Art.-Ing.No. 305-011
Available in various housing colours.
