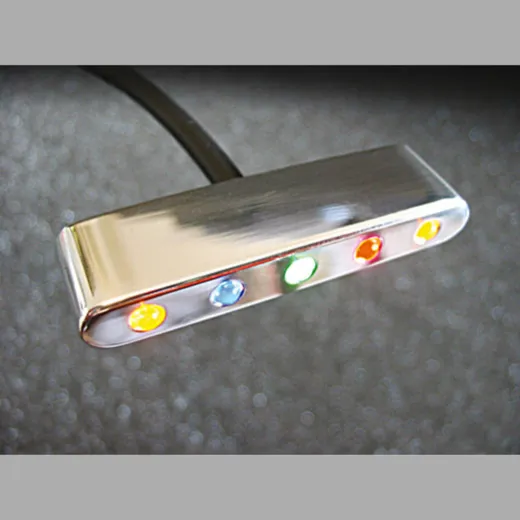

motogadget Motosign mini, polished

motogadget Motosign mini, polished

The motosign mini is the indicator lights unit accompanying the motoscope mini.

The motosign mini is the matching indicator light unit for the motoscope mini.

It is extremely small and equipped with 5 colored LEDs. The series resistors are integrated. The aluminum housing is milled from solid on CNC machines and its surface is anodized or highly polished. Two threaded holes (M3) on the back ensure stable mounting. The components are completely potted and the device is waterproof and insensitive to vibration.

Technical data:
Length, height, depth: 46 x 7 x 13 mm
Weight: approx. 18 g incl. cable
Number of LEDs: 5
Operating voltage: 9 V - 18 V
Operating temperature: -20° + 70°C
Length of the connection cable: approx. 50 cm
Fixing via two threaded holes M3 on the back

LED colors:
Green - turn signals (left and right)
Blue - high beam
Green - neutral switch
Red - oil pressure switch
Orange - check engine/MKL / error

Scope of delivery
motosign mini with approx. 50 cm connection cable (9 wires), wiring diagram.
