motogadget msm combi frame with pilot lights, silver

motogadget msm combi frame with pilot lights, silver

msm combi frame with indicator lights for motoscope mini

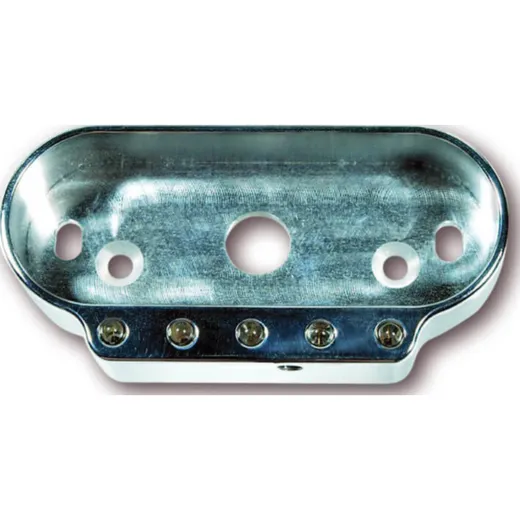

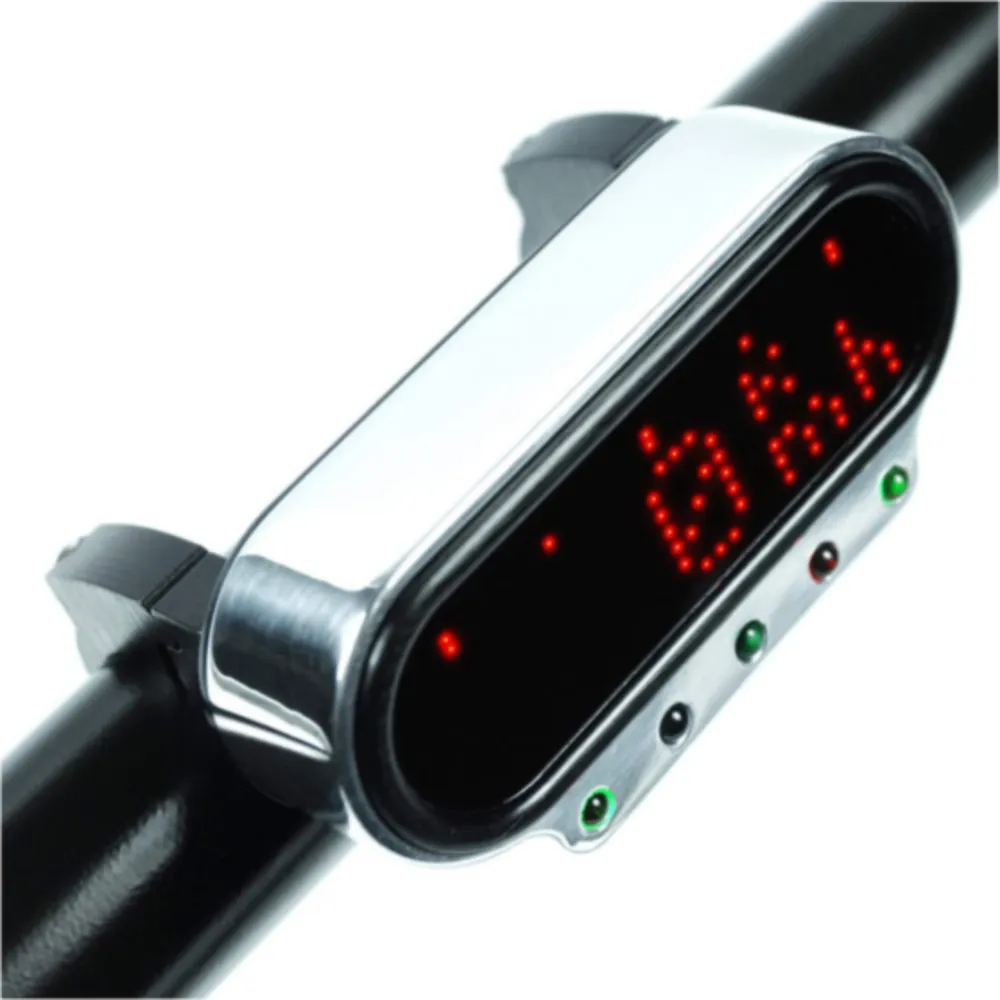

The msm combi frame allows the motoscope mini to be mounted by means of further attachments on the handlebars. 5 indicator lights and series resistors are already integrated. It is available milled from solid aluminium, brushed anodised or polished.

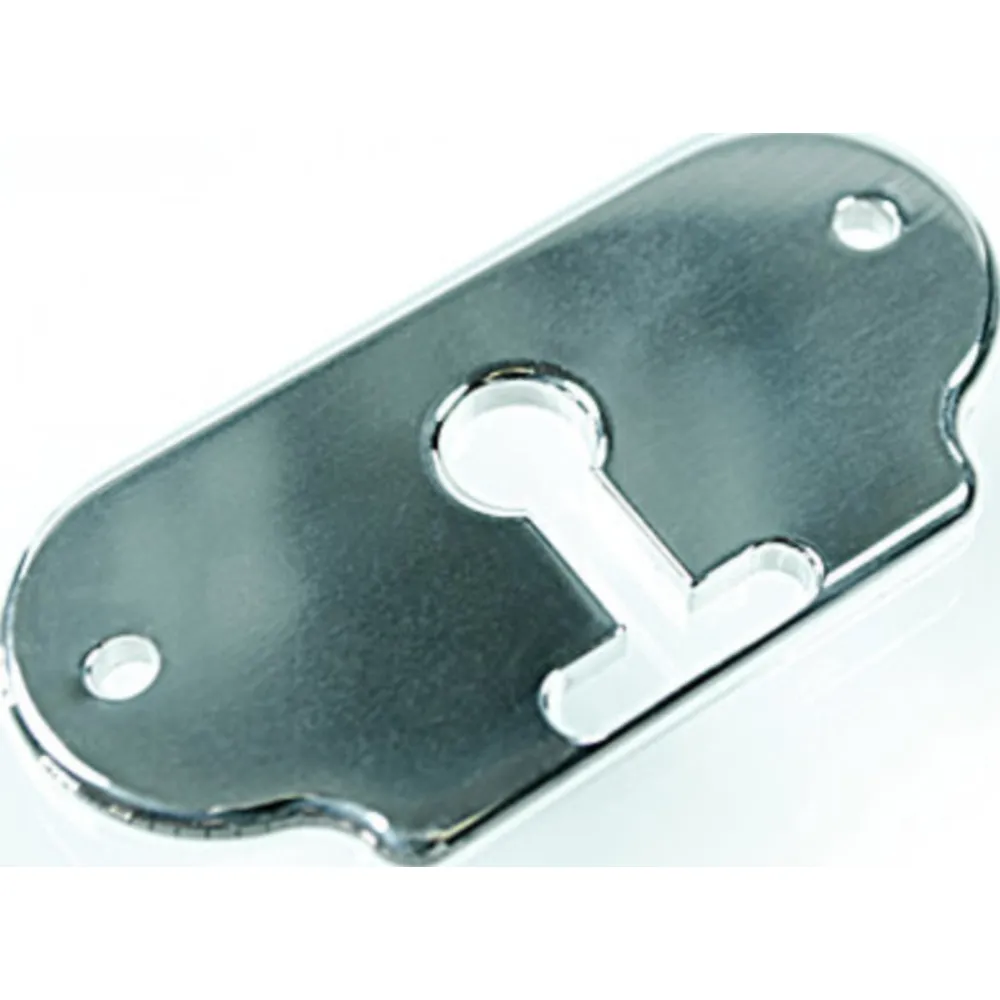

For installation, an additional mounting element such as combi Clip-Kit Bracket, combi Bolt-On Bracket, combi Weld-In Bracket or combi Retainer Plate is required. The motoscope mini is not included.

cable colour - function - polarity
- red - turn signal left - +12V
- blue - turn signal right - +12V
- orange - turn signal ground - ground
- green - high beam - +12V
- yellow - high beam - Ground
- white - neutral - +12V
- black - neutral - ground
- brown - oil pressure - +12V
- purple - oil pressure - ground

Optionally, the right turn signal indicator light can be used for further warning functions, which supply a +12V signal, can be used.
To display both indicators on the left turn signal indicator light, please follow the assembly instructions.&ltScope of delivery:
Combi frame
approx. 50 cm cable
screws
instructions
br/&gtthe motoscope mini is not included in the scope of delivery.
