motogadget Speedometer Chronoclassic speedo, analogue

motogadget Speedometer Chronoclassic speedo, analogue

Chronoclassic Speedo 0-200 km/h, case black, ring available in different colors, green LCD display, with ABE

Chronoclassic Speedo 0-200 km/h, dial and case black, green LCD display

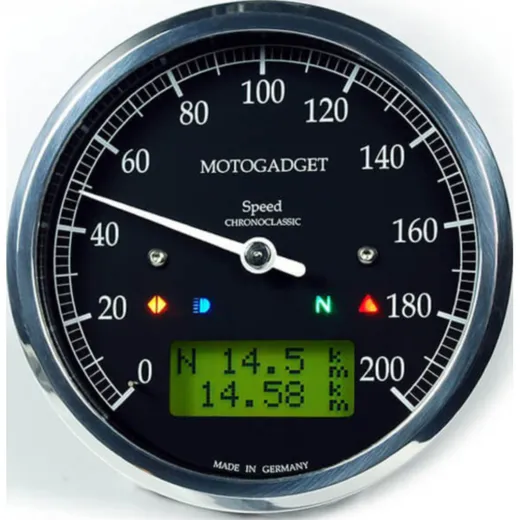

The Chronoclassic Speedo by motogadget is an analog speedo with many digital additional functions in the classic round case.

Technically identical to the motoscope classic speedo, the Chronoclassic speedo is characterized by its black dial and white hand. The design is reminiscent of old Smith instruments. The technically identical instrument is also available with a white dial (see motoscope classic speedo) or as an analog tachometer (see Analog-DZM Series CLASSIC).

Technical data:
Installation diameter: 80 mm
Overall diameter (screw ring): 85 mm
Depth without cable gland: 34 mm
Weight: approx. 230 g
Fastening: 3 x M4 threaded bushings
Power consumption in operation: approx. 200 mA (load-dependent)
Current consumption in idle state: 0 mA
Operating voltage: 9 V - 18 V
Operating temperature: -20° +80°C

Scope of supply:
Instrument with approx. 55 cm connection cable
complete plug connection
fuse
tachometer sensor M5 with 150 cm connection cable
2 x magnet
mini-button
3x VA screws M4
detailed mounting and operating instructions

note:
Please note that temperature and pressure sensors must be ordered separately (see accessories).
