HIGHSIDER CNC license plate mounting plate with Uni holder type 1, black anodized

HIGHSIDER CNC license plate mounting plate with Uni holder type 1, black anodized

HIGHSIDER CNC license plate holding plate with universal holder type 1, black anodized

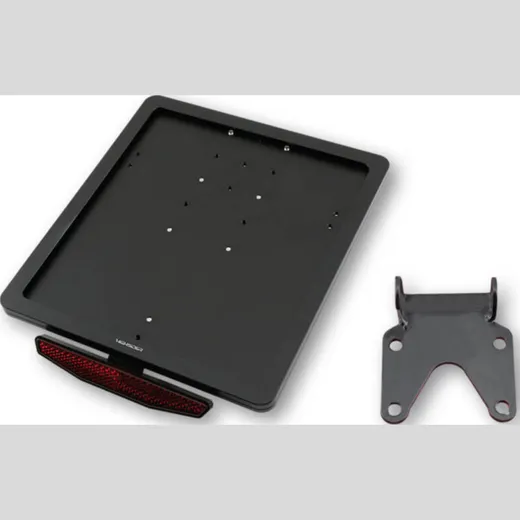

HIGHSIDER CNC license plate holder with universal holder type 1, aluminum black anodized.

Split away from the usually bulky stock rear end for a clear view of the rear wheel.
The universal license plate holder type 1 can be mounted on many sport and naked bikes with little modification. Compare our dimensional sketch with the conditions at the rear of your vehicle, additional drilling may be required for installation.

No more screw holes in the license plate the drilling of the license plate is no longer necessary.
The lightweight, slim aluminum housing consists of a base plate and a seamless frame with the exact fit of a 180x200 mm license plate can be attached.

Precisely matched - the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With the highest level of quality and functionality, you can easily customize your bike to your liking.

Dimensions retaining plate:
- Width: 196 mm
- Height: 216 mm
- Thickness: 5.5 mm
- Frame: 12 mm

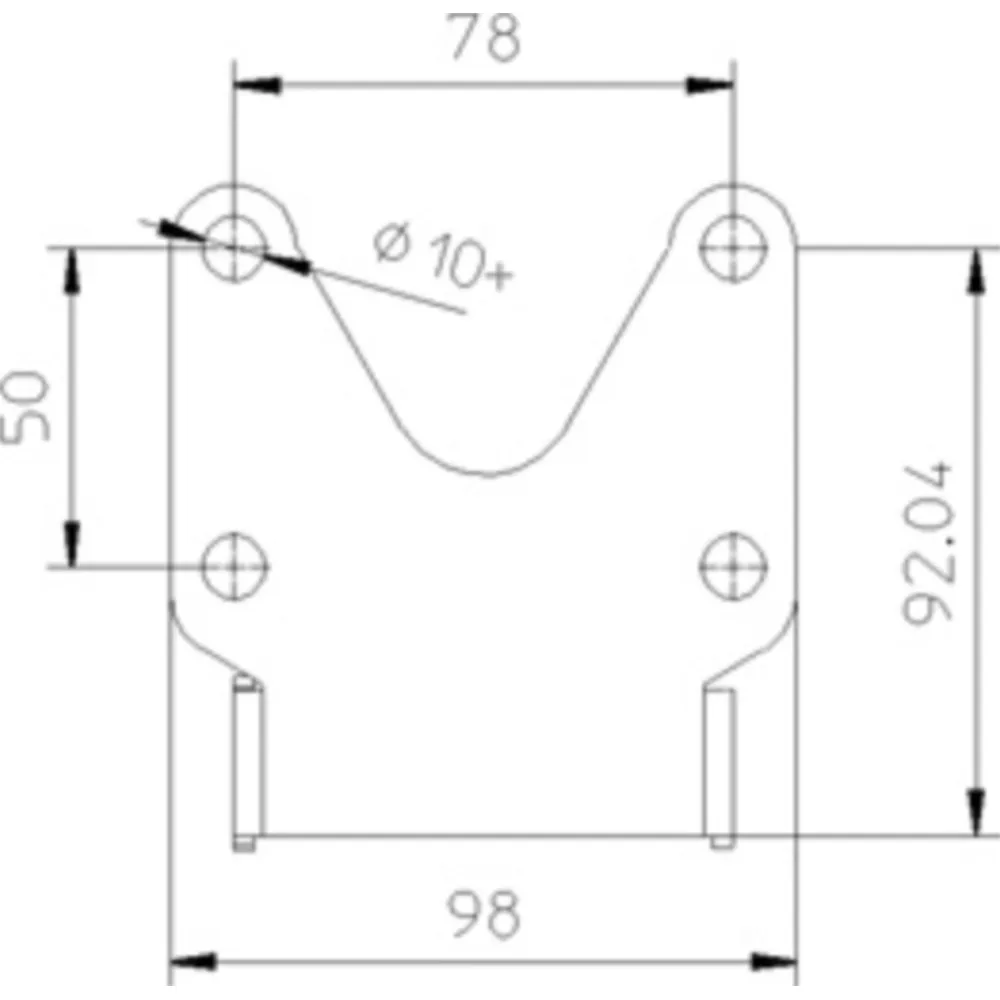

Dimensions of the holder:
- Width: 98 mm
- Width from hole to hole: 78 mm
- Screw hole: M10
- (Dimensions, see also dimension sketch)

Scope of delivery: 1 piece incl. Mounting material
- 2 x angle bracket
- 1 x reflector (E-approved)
- 12 x screws M3x4
- 7x screws M4x6
- 4x washers M6
- 2x washers M4
- 2x spring washers M4
- 1x universal holder type 1

Note:
Should be mounted on your original license plate holder lateral reflectors, these must be reattached in a suitable position or replaced with new ones.
