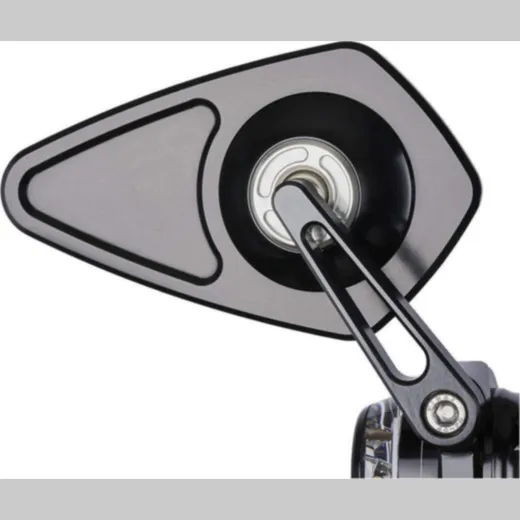

motogadget mo.view blade, glassless handlebar end mirror

motogadget mo.view blade, glassless handlebar end mirror

motogadget mo.view blade, glassless rear view mirror for handlebar ends 1 inch and 22mm, black, without E-mark. Not for use in road traffic!

motogadget now exclusively presents its glassless mirror series mo.view.
The special feature of this motorcycle mirror is the patented mirror surface, which is worked directly into the metal of the body.
The aluminium itself is the mirror surface!
This allows a weightless design without rim and frame and the mirror body itself becomes very thin and light.
Breakage of glass or falling out of glass are simply not possible!

The convex mirror surface is produced by flycutting with a diamond tool on ultra-precision machines.
Then it is made resistant to oxidation, corrosion and scratches by an elaborate plasma coating in a vacuum.

The mirror body, mirror arm and the clamping for the handlebar end are milled from solid aluminium on CNC machines and anodized to a high quality.

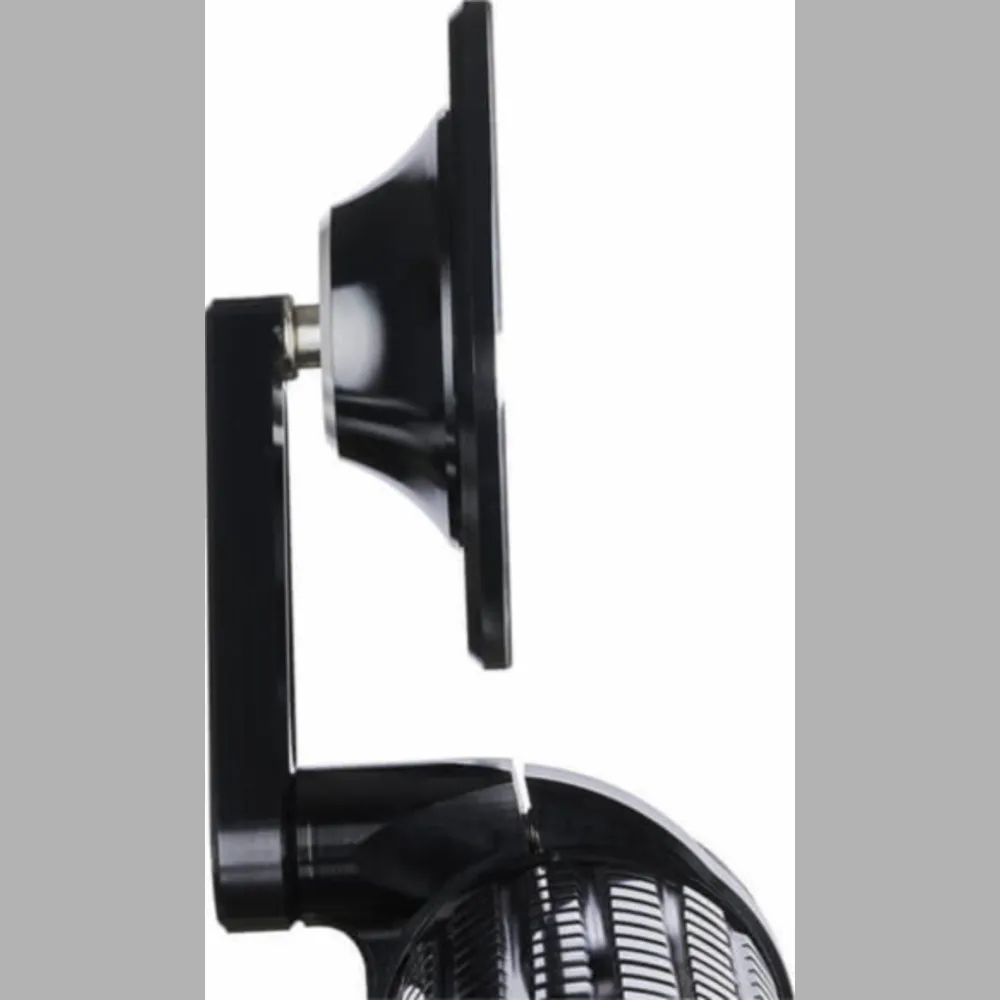

All screws are made of stainless steel. The precise ball-and-socket joint allows comfortable and very stable adjustment of the mirror.

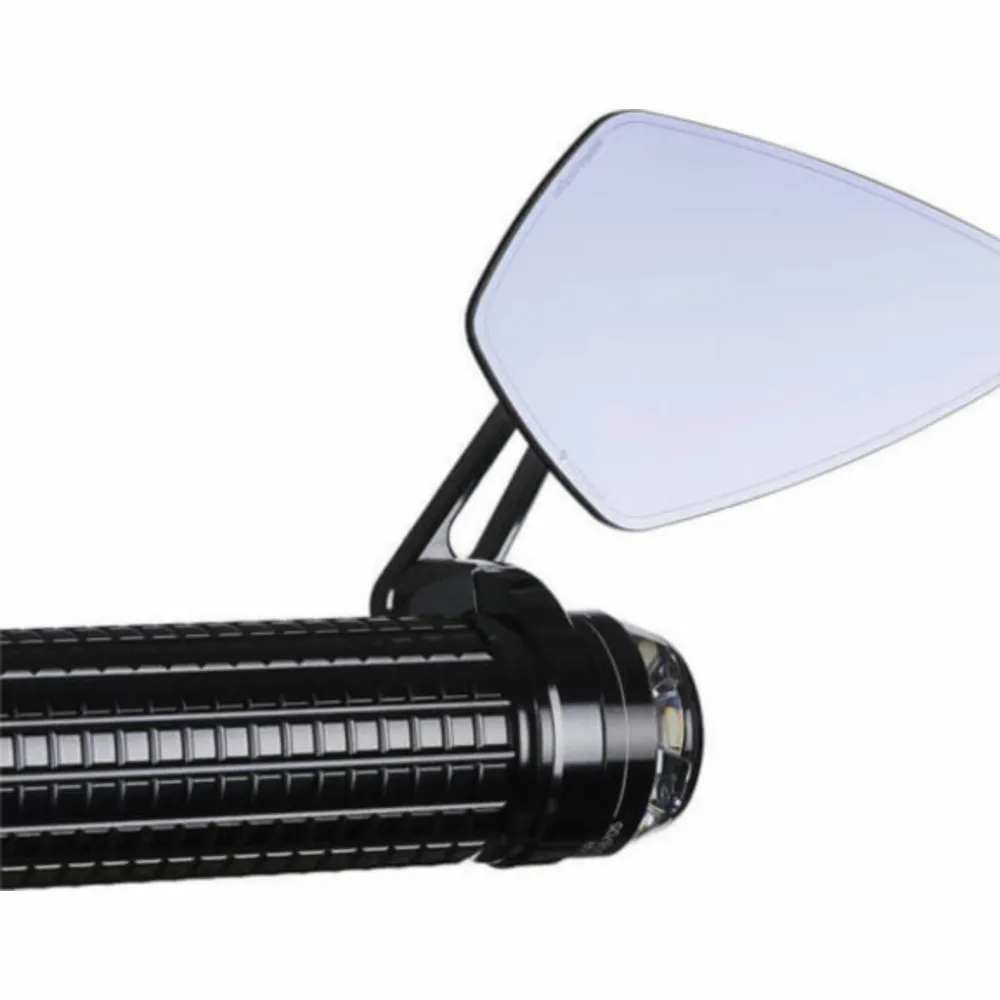

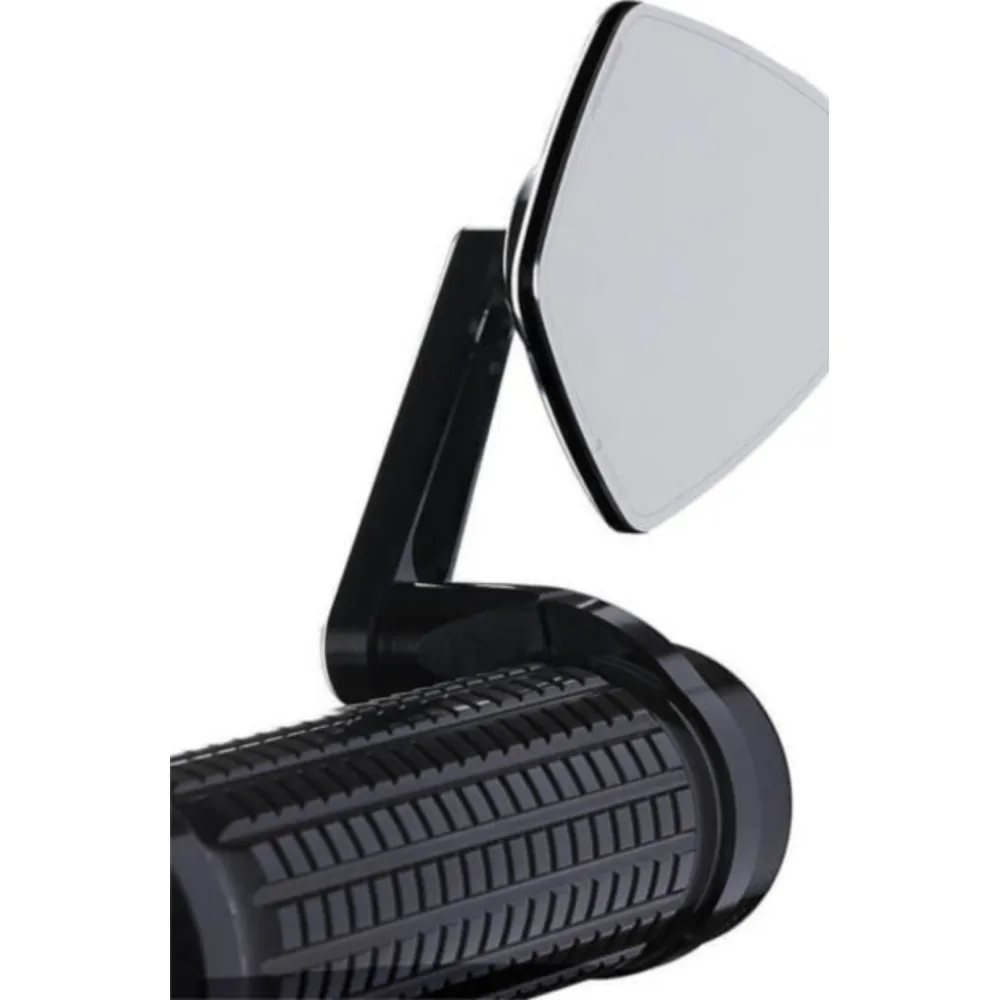

The handlebar end mirror mo.view blade is very small, reduced and fits perfectly to our handlebar end indicators and the handles mo.grip
as well as the switch fittings mo.switch and mo.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side. Mounting is done directly on the handlebar end (22 mm and 1 inch). .

The size of the mirror surface of the mo.view blade does not correspond to the StVZO.
Therefore only suitable for non-EU countries or show vehicles.
Price per piece.

Dimensions:
Width of mirror body: 100 mm
Height of mirror body: 60 mm
Thickness of mirror body without ball head: 4 mm
Length of mirror arm: 61 mm
Clamp diameter: suitable for 22 mm and 1 inch handlebars
Clamp width: 8 mm

Scope of supply
Rearview mirror mo.view blade with arm and clamp, manual
