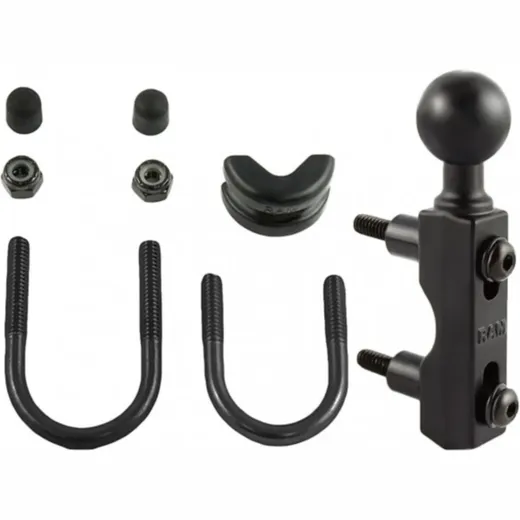

RAM MOUNTS Brake/Clutch Reservoir and Handlebar Base - B Size Ball

The RAM-B-309-7U combination handlebar and brake/clutch reservoir base provides the ultimate flexibility for mounting to your motorcycle. Attach the base to either your handlebar or brake/clutch, and achieve near-infinite adjustability and ideal viewing angles for your phone, GPS unit, or action camera. The zinc-coated metal U-bolt accommodates rails ranging from 12.7mm to 25.4mm in diameter. Hardware included.

 FEATURES

• Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
• Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
• Backed by a lifetime warranty

HARDWARE INCLUDED

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 50.8mm Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/50.8mm Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

CLAMP RANGE

Ø 12,7mm - 31,75mm

BALL/SOCKET SIZE

B Size Ball :2.54 cm (1") in diameter (generally used to support a load of 0-2 kg)

MATERIALS

Marine-grade aluminium

PACKAGING TYPE

Poly Bag

WEIGHT

0.45 lbs
