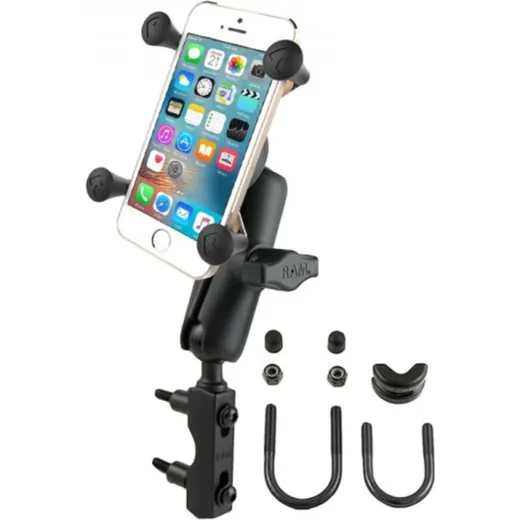

RAM MOUNTS X-Grip® Medium Arm Phone Holder with Brake/Clutch Reservoir U-Bolt Base for Honda, Yamaha, Suzuki

The RAM-B-174-UN10 consists of hardware for mounting to either brake/clutch reservoirs and rails that are 12.7mm to 25.4mm in diameter, double socket arm and universal X-Grip^® phone holder.

Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the X-Grip^® mount to your optimum viewing position. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts.

The included X-Grip^® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip^® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip^® is the cell phone cradle evolved. The X-Grip^® includes a device tether recommended for outdoor applications.

The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

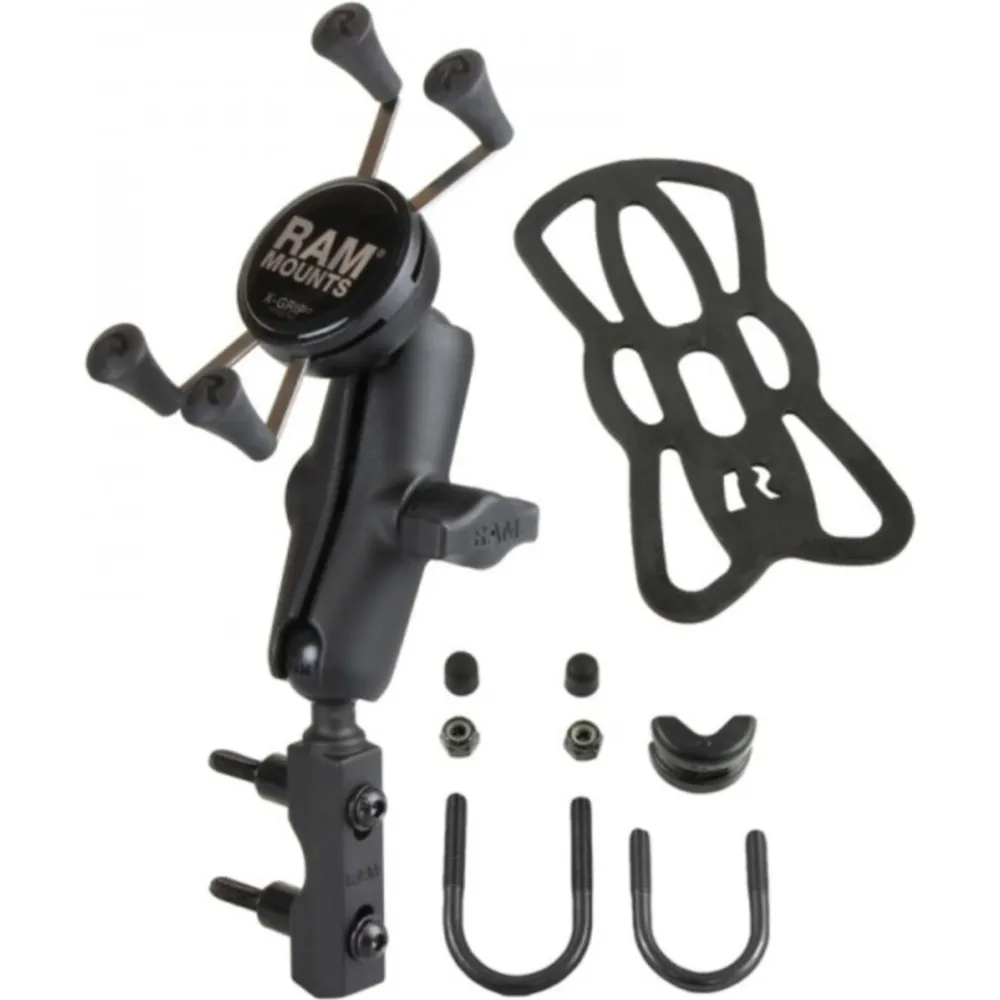

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 50.8mm Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/50.8mm Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

HOLDER DIMENSIONS

Width Range: 48mm - 83mm
Depth Range: 22.2mm max

CLAMP RANGE

Ø 12,7mm - 31,75mm

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminium
High strength composite
Stainless steel

PACKAGING TYPE

Retail Box
