RAM MOUNTS X-Grip® Short Arm Phone Holder with Fork Stem Base for Honda, Yamaha, Suzuki

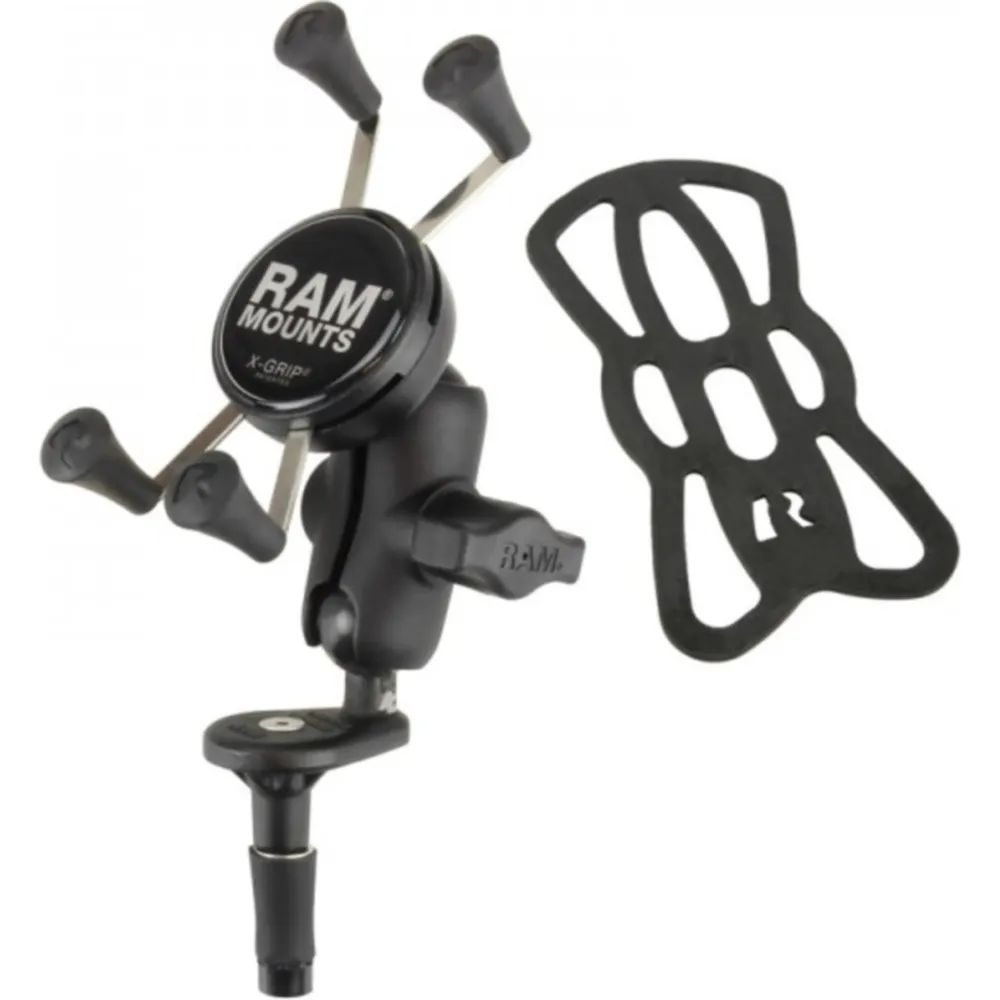

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM X-Grip^® phone holder.

The RAM X-Grip^® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM X-Grip^® fits phones ranging from 47mm to 83mm in width and keeps your device completely functional and accessible.

RAM ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping.

For outdoor applications, the RAM X-Grip^® includes a device tether that is recommended for added security and peace of mind.

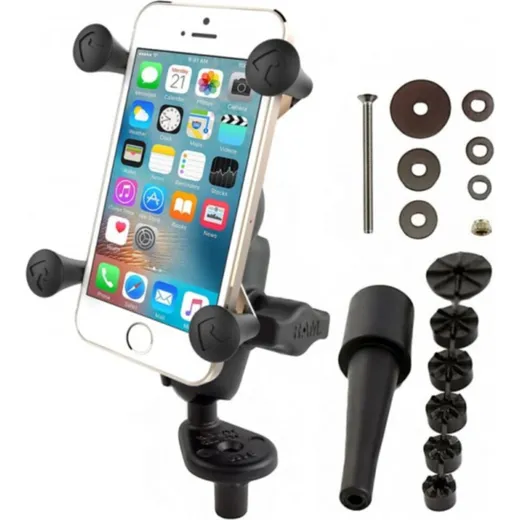

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut

HOLDER DIMENSIONS

Width Range: 25.4mm to 76.2mm
Depth Range: 22.2mm max

SOCKET-TO-SOCKET LENGTH

119mm

BALL/SOCKET SIZE

B Size Ball :2.54 cm (1") in diameter (generally used to support a load of 0-2 kg)

MATERIALS

Marine-grade aluminium
High strength composite
Stainless steel

PACKAGING TYPE

Retail box
