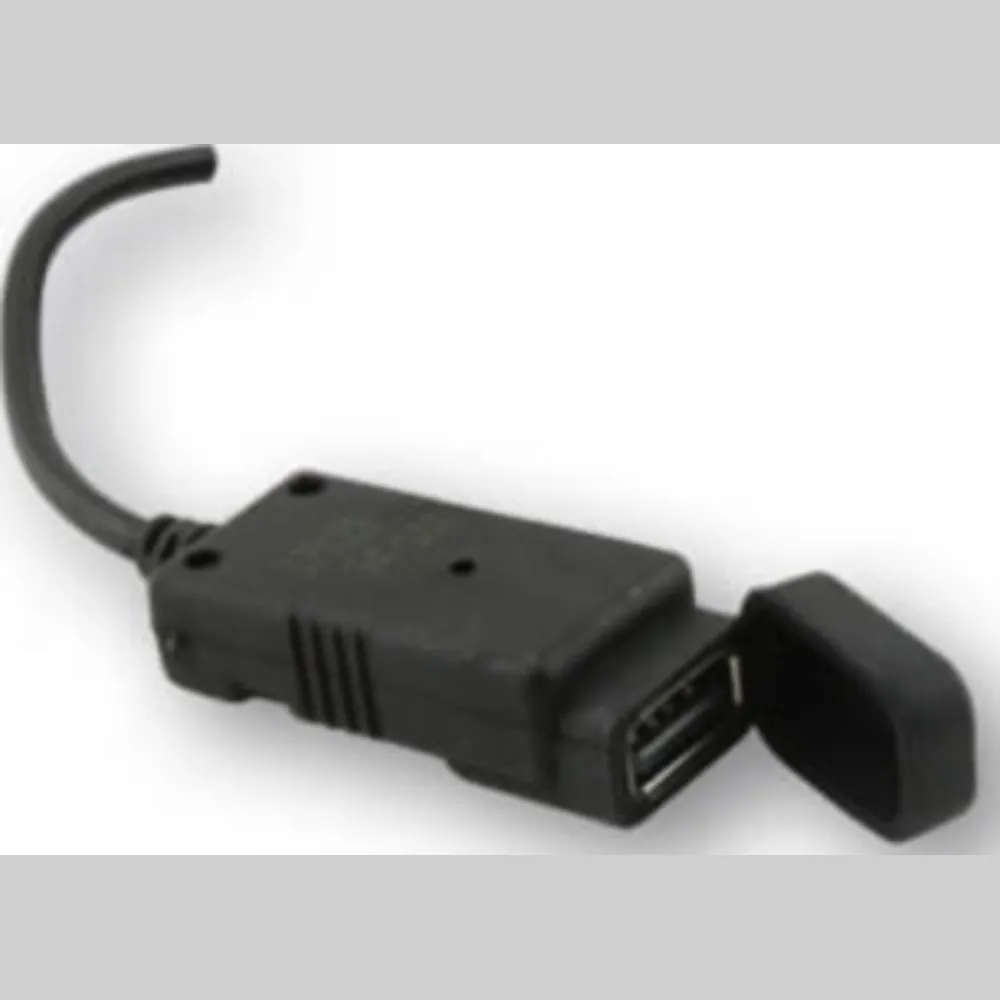

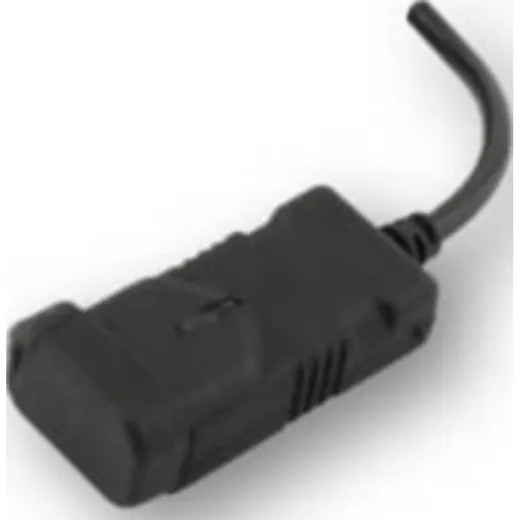

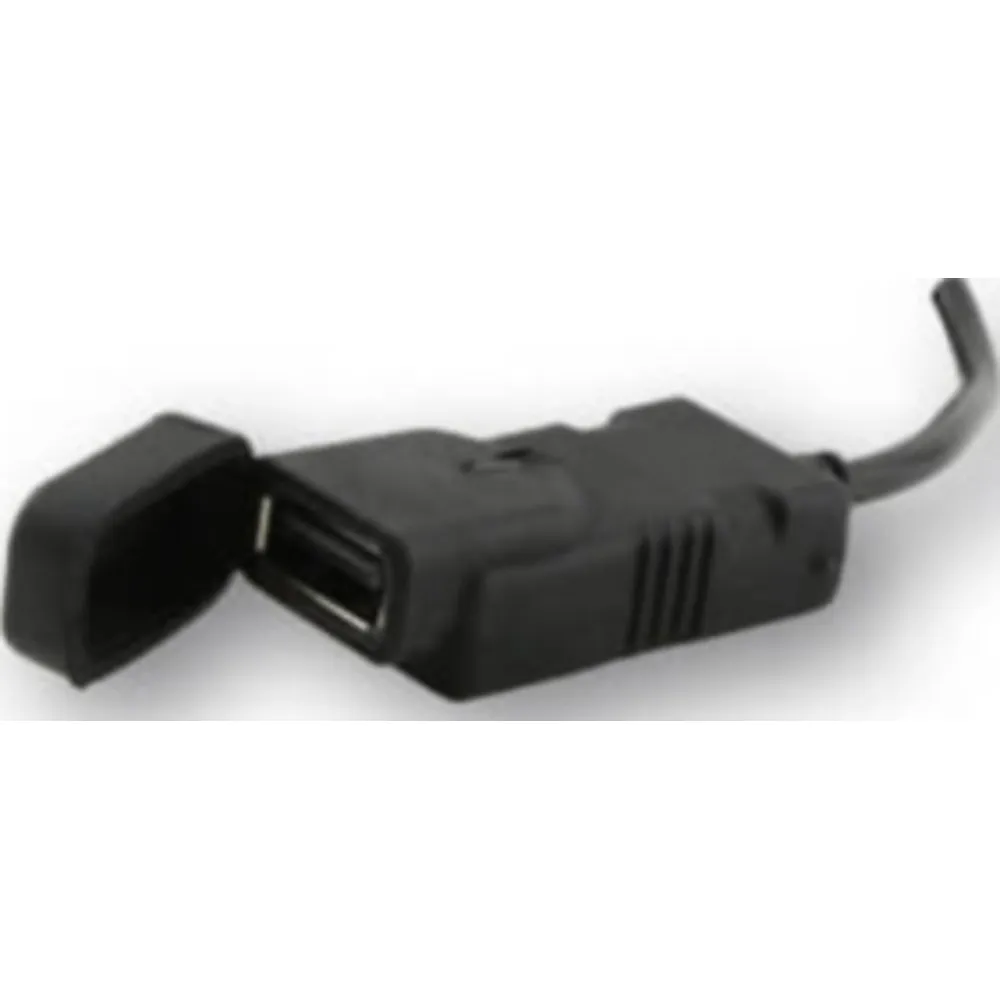

KOSO USB charging socket with safety cut-out

KOSO USB charging socket with safety cut-out

2.0A USB charging socket with safety cut-out

KOSO 2.0A USB charging socket with safety cut-off

For mounting on vehicles with 12V battery. Mobile phone, tablet etc. can be connected to the USB charging socket.

Dimensions:
Width: 20 mm
Height: 13 mm
Depth: 42 mm
Weight: 31 g

Power consumption:
Output: 5 V, 2.1 A
Input: 11.5 V - 16 V

IP 54 - Effective temperature range from - 10 to +60

Connections:
Red = ignition plus (15+)
Black = ground (-)

Scope of supply:
1 x USB charging socket
1x cable tie
1x self-adhesive velcro tape

Notes:
If the vehicle battery voltage is too low, the USB charging socket switches off so that the vehicle battery is not discharged by the connected loads. This can be recognized by the LED at the top. From 11.5V the LED indicates blue (OK) below 11.5V the LED flashes red (NO)
