motogadget Standard Relay

motogadget Standard Relay

mo.relay, very small relay for controlling almost all consumers

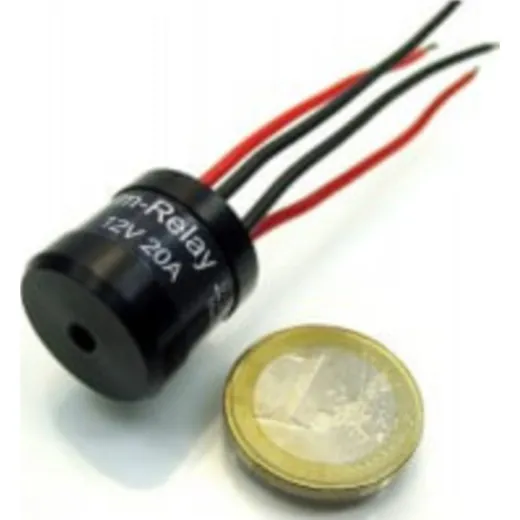

The mo.Relay is a very small relay for the control of almost all loads.

Z.B. High beam, low beam, horn, ignition etc. can be switched easily and almost lossless. Larger working currents are thus placed close to the consumer (e.g. lamp). Only a minimum control current needs to be conducted via the ignition lock and/or handlebar switch. Failures and charred contacts are a thing of the past. In addition, the brightness of the lighting, for example, is noticeably improved by reduced line losses - a clear plus in safety!

A central threaded hole on the upper housing surface enables simple mounting at almost any location, even when several mo.relays are mounted. The housing of the mo.Relay is made of solid aluminium and black anodized. It is completely waterproof and vibration resistant.

Dimensions:
Diameter without cable 19 mm
Height 19mm

Scope of supply: 1 piece

ACHTUNG!
The mo.Relay is not suitable as push button control! These can be found under mo.Unit.
The mo.Relay is not suitable as a flasher relay! These can be found under mo.Flash, mo.Wave, mo.Stop or with push button control under mo.Relay+.
