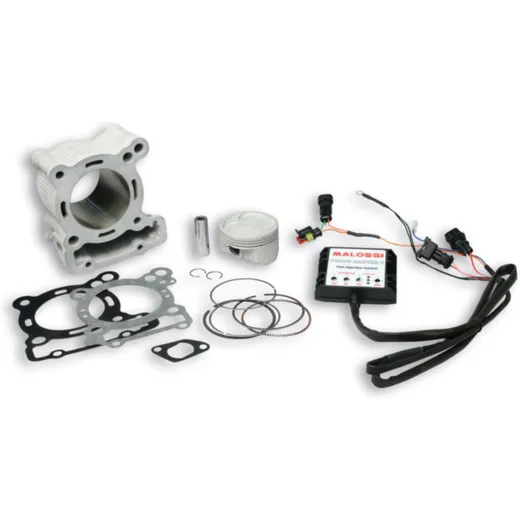

MALOSSI I-Tech Cylinder Kit - Ø67mm

Cylinder

• Bore Ø 67 mm
• Stroke 47 mm
• Displacement 166
• Compression ratio: 12:1
• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
• Machining: on machine tools with high precision numerical control
• Cylinder-piston connection with an allowance of 0.05 mm
• Recalculated and upgraded heat exchange surfaces

Piston

• Ultra compact with 3 rings
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
• Machining on machine tools with numerical control
• Lightened and reinforced
• Upgraded heat exchange surfaces

Piston rings

• Special rings with high sliding ease and very high mechanical resistance
• I° ring compression in nitrided and chromium steel
• II° special cast iron ring Three - piece scraper ring made of chromium-plated special steel alloy

CDI FORCE MASTER 2

• Carburation adjusting
• ± 20% at min/medium/max
• RPM limiter: + 1000 RPM

Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use
