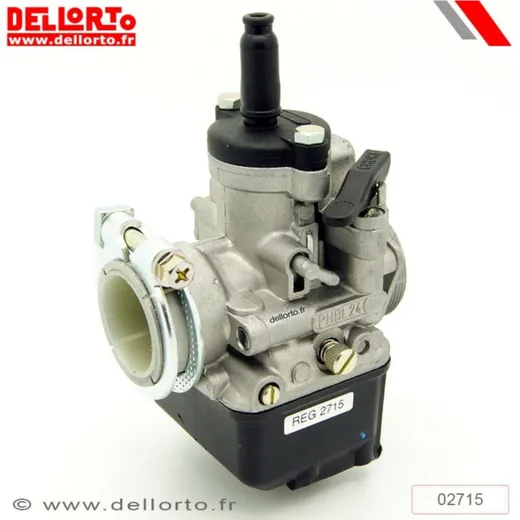

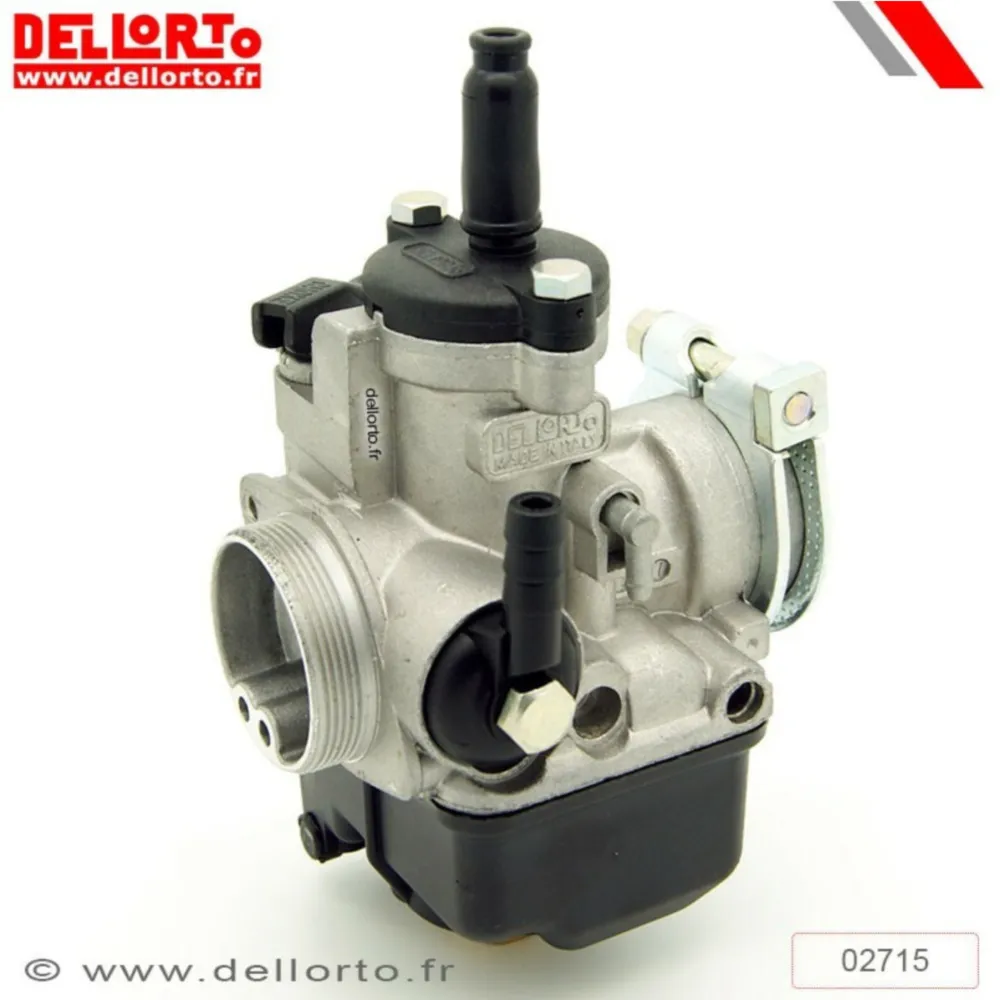

DELL ORTO PHBL AS Ø24mm Carburetor

Carburettor without separate lubrication

M38 x 1.25 Threaded air intake connection

Rigid clamp type engine connection to suit 28,5mm diameter stub

Lever choke

Idle and mixture screws on left side

Standard Jetting

• 40 Slide
• D22 Needle
• AQ 264 Needle Jet
• 100 Main jet
• 50 Idle jet
• CPL200 Float valve
• 02 Float
