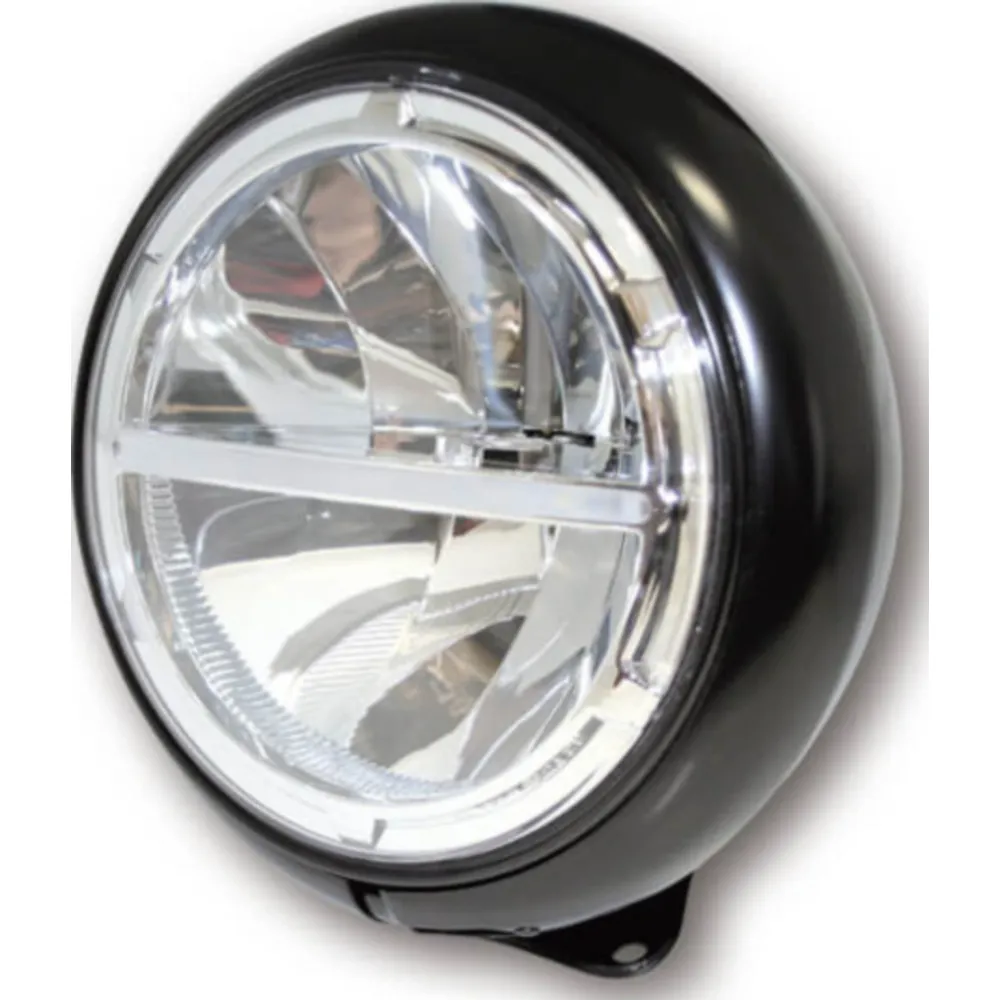

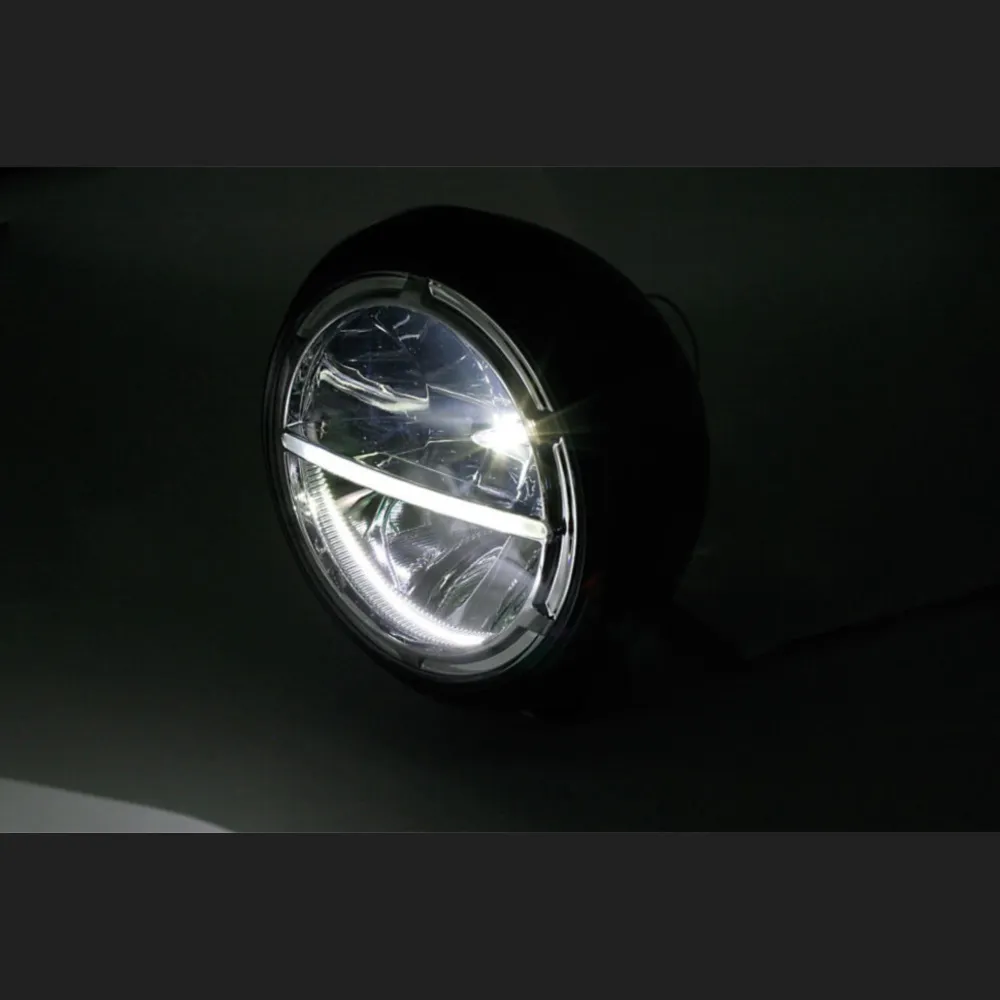

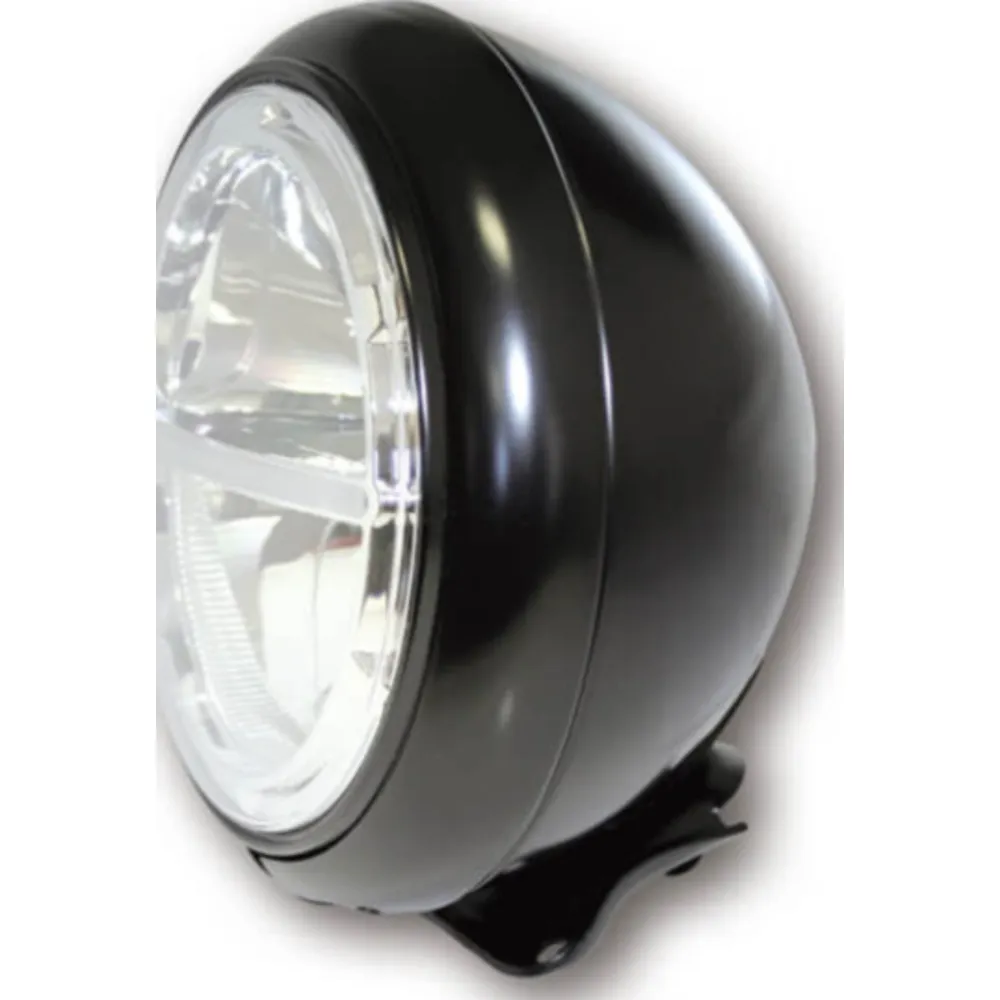

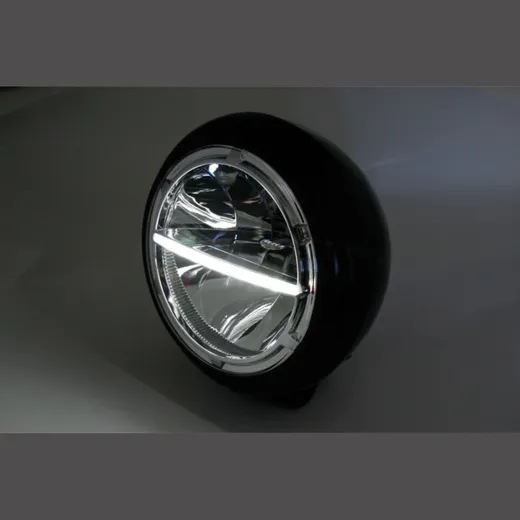

HIGHSIDER 7-inch VOYAGE HD-STYLE LED headlight, bottom mount 223-165

HIGHSIDER 7-inch VOYAGE HD-STYLE LED headlight, bottom mount

HIGHSIDER VOYAGE HD-STYLE LED Spotlight, 7-inch, metal housing with insert, clear glass, round, bottom mount, E-marked.

In various colors available.

HIGHSIDER 7 inch LED main headlight VOYAGE HD-STYLE for bottom mounting

Innovative power LED headlight in a puristic design with parking light function. The oval metal housing isblack lacquered or chrome-plated, the insert is chrome-plated The LED technology and the inserted reflector produce a symmetrical, bright light and provide for an optimal perception of bikersby other road users, E-tested.

Our highlights - give your bike a distinctive style! The fancy design and the perfect technology ofHIGHSIDER headlamp series make it a highlight in any case!
br/&gtBody diameter: 220 mm
Diameter of headlamp insert: 178 mm
Depth: 155 mm
Distance of the mounting holes onHolder (middle - middle): 65 mm
br/&gtcurrent consumption at 12.5 Volt:
Dipped beam: 1.4 Ampere (approx. 17.5 Watt), approx. 1170 Lumen.
high beam: 1.5 Ampere (approx. 18.5 Watt), approx. 1200 Lumen.
br/&gtconnections3-pin combo plug:
Black cable = ground (-)
White cable = low beam (+)
Yellow cable = high beam (+)
Red extra cable = parking light (+)
Supplied with: 1 piece
br/&gtNotes:
SymmetricalReflector - also approved for left-hand traffic.
replacement insert: Part no. 226-160
