HIGHSIDER Main headlight OREGON 223-056

HIGHSIDER Main headlight OREGON

HIGHSIDER OREGON main headlight, rectangular, clear glass, H4 12V 60/55W, lower mounting, with parking light, E-approved

In various colors available.

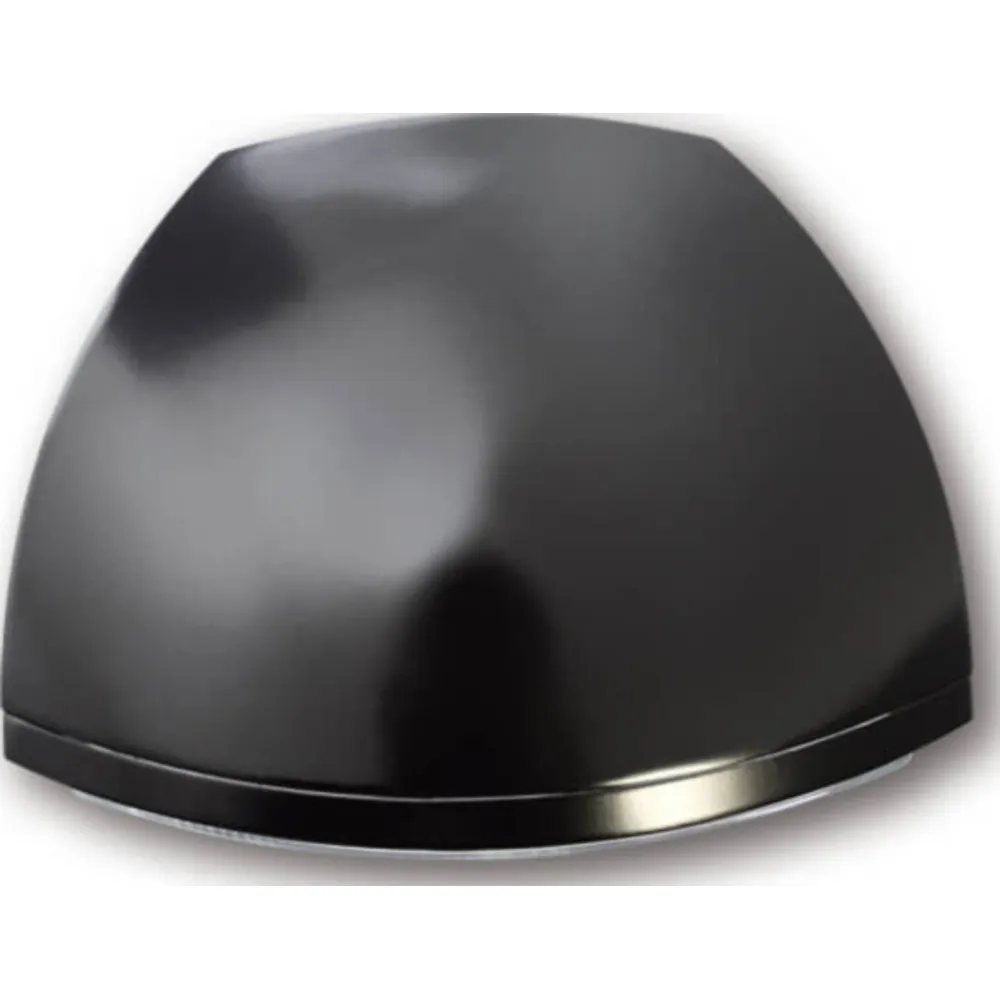

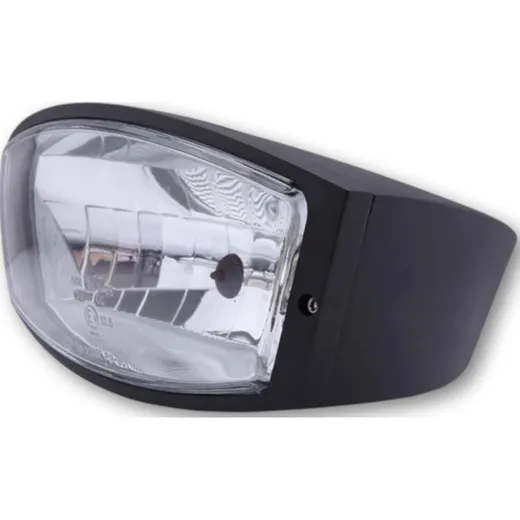

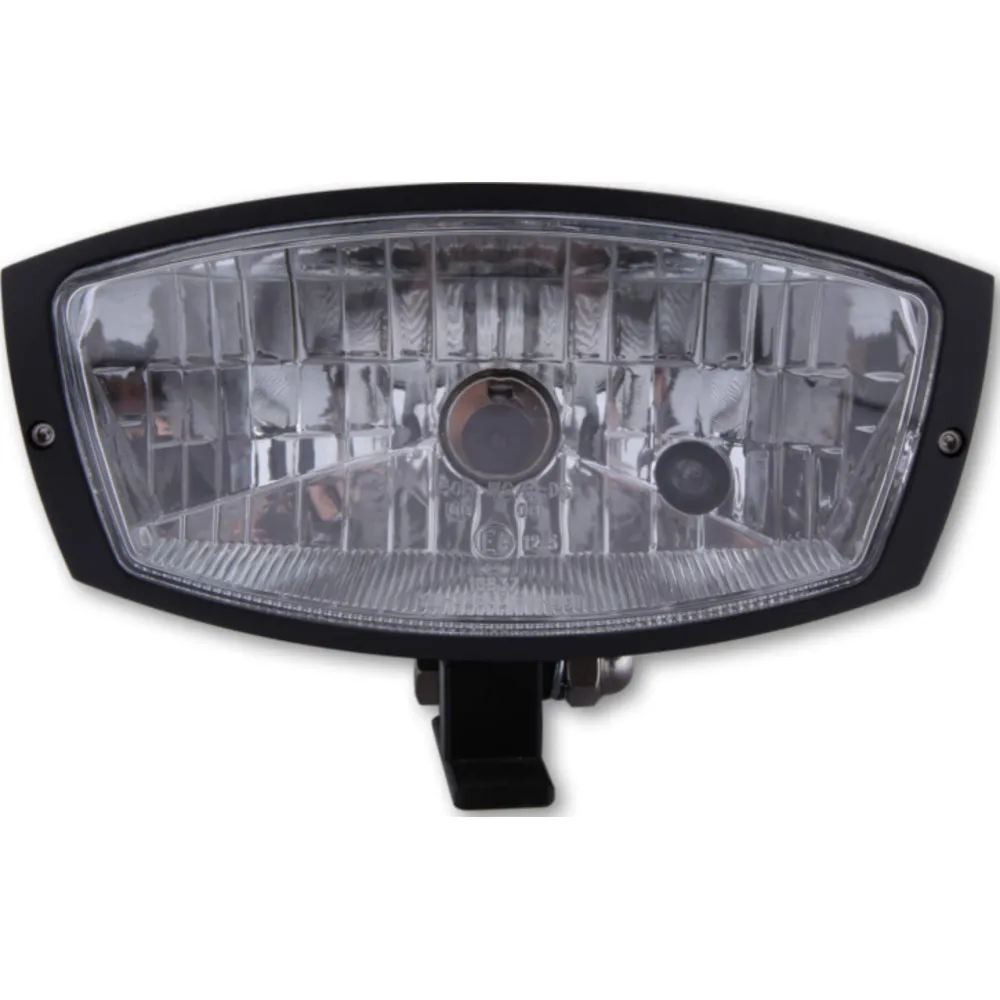

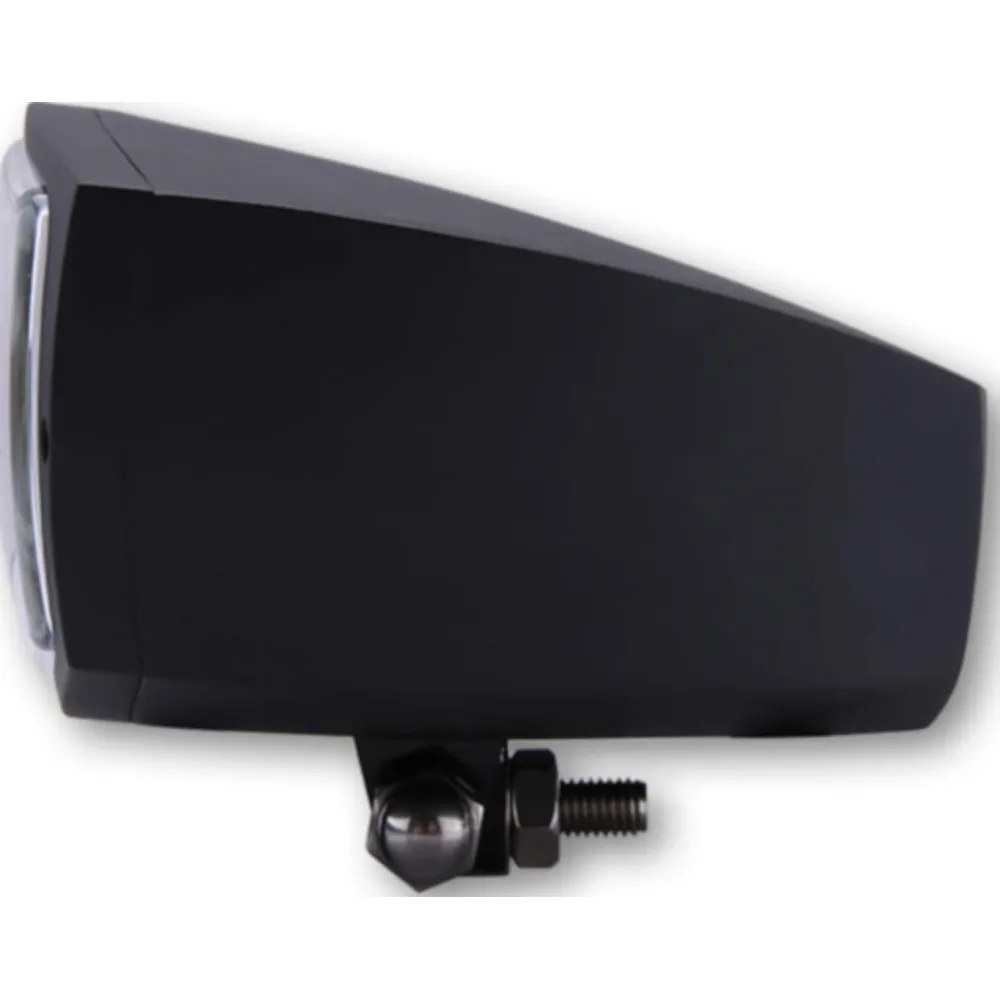

HIGHSIDER OREGON headlight for lower mounting. Black or chrome H4 halogen headlight with stand light and galvanized metal housing. The reflector emits a bright, symmetrical light - for good road illumination and optimum visibility. The trapezoidal headlight captivates by its soft, curved lines and the noble high-gloss housing, E-approved.

See and be seen give your bike an unmistakable style! The fancy design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Technical specifications:
Lamps: H4, 12 V 60/55W
Width: 195 mm
Height: 95 mm
Depth: 155 mm (with glass)
Fixing: bottom, 3-fold adjustable with M 10 x 1.5 mm fixing bolts.

Connections H4 headlight:
Black cable = Ground (-)
Yellow cable = Low beam (+)
Blue cable = High beam (+)

Connectors Parking light:
Black cable = Ground (-)
Green cable = Plus (+)

Scope supplied: 1 piece

Spare parts:
Application: 226-155 Clear glass H4 symmetrical
Spare bulb: 209-105 H4
