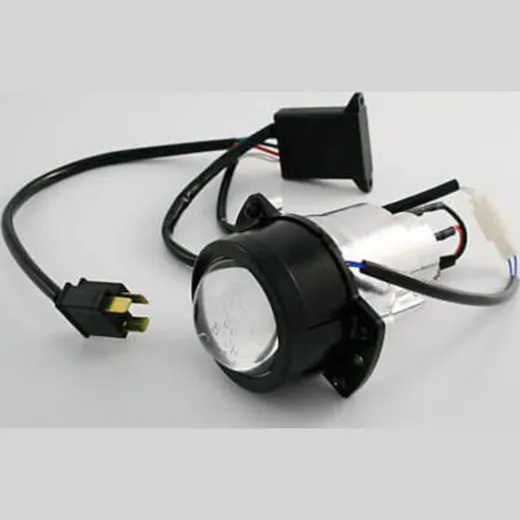

SHIN YO Ellipsoid headlamp 50 mm with cover for high beam and low beam, H1

SHIN YO Ellipsoid headlamp 50 mm with cover for high beam and low beam, H1

SHIN YO ellipsoid spotlight 50 mm with diaphragm for high beam and low beam, H1 55 Watt, E-tested.

SHIN YO ellipsoid headlamp
This headlamp has no parking light function but a magnetically controlled aperture which changes between high and low beam. Integrated holder with two 5 mm holes. Both light functions are E-approved.

Dimensions:
Lens diameter 50 mm
Lens height 20 mm
Frame diameter outer lens 67 mm
Housing length with lens approx. 123 mm
Installation depth approx. 100 mm
Width Bracket: 93 mm
Lamp: H1 55 Watt

Supplied: 1 piece

Accessories:
Optional LED parking light Art. no. No. 223-325 or 223-327 can be used.
