HIGHSIDER LED spotlight SATELLITE

HIGHSIDER LED spotlight SATELLITE

HIGHSIDER LED spotlight SATELLITE, matt black aluminium housing with holder, lens diameter: 50 mm, E-marked.

HIGHSIDER SATELLITE LED spotlight with holder, E-approved

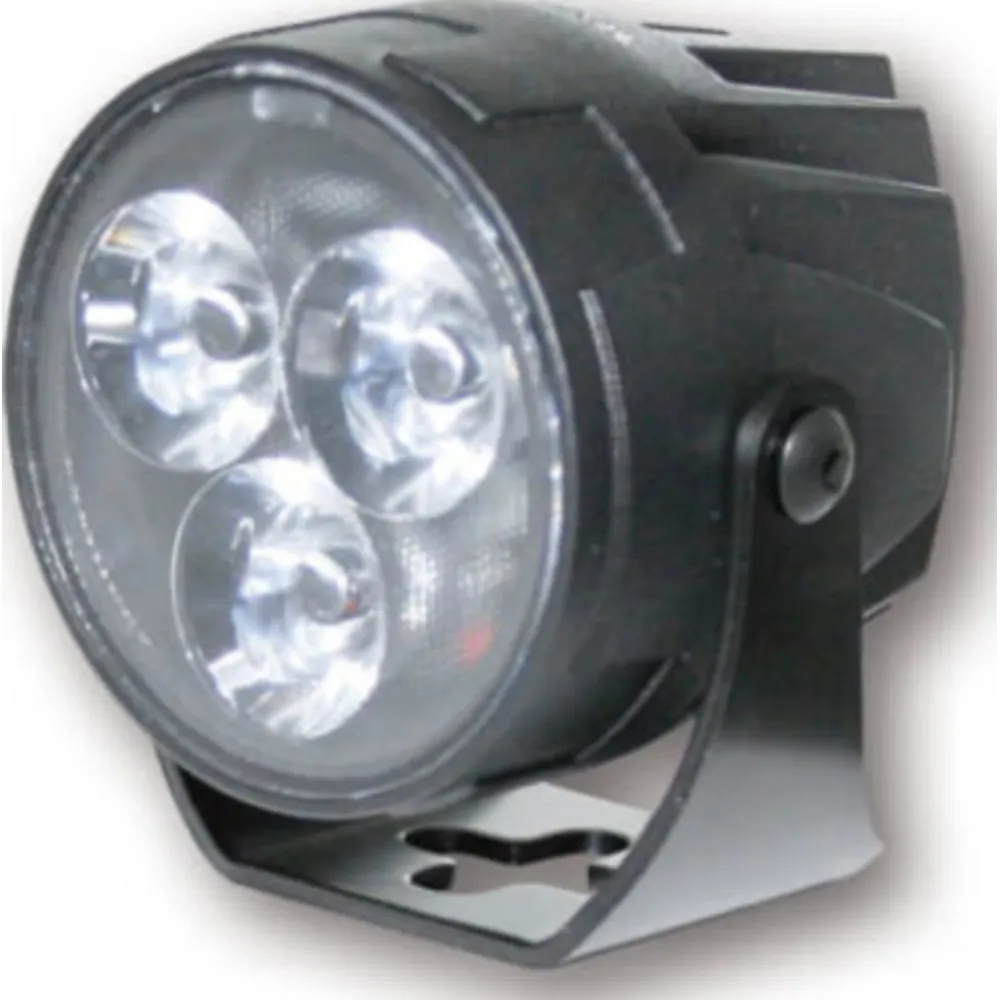

Small, powerful spotlight with 3 power LEDs (8 watts each) in a matt black aluminium housing with round lens, enclosed in a sturdy steel holder. The LED technology and the insert used produce a symmetrical, bright light for optimum perception of bikers by other road users.

See and be seen - give your bike a distinctive style!
The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!

Dimensions headlamp and holder
Lens diameter: 50 mm
Maximum housing diameter: 64 mm
Housing length: 62 mm
Base plate holder with slotted holes: 33 x 33 mm
Max. Width Holder: 59 mm

Dimensions Box
Height: 16 mm
Width: 49 mm
Depth: 19mm

Current consumption at 12.5 volts DC (suitable for 8 - 16 volts DC): approx. 0,9 Ampere, 800 Lumen

Connections
Black cable: Ground (-)
Red cable: Plus (+)

Scope of delivery: 1 piece

Note
The headlamp must not be connected without the supplied black electronics box (voltage control)!
