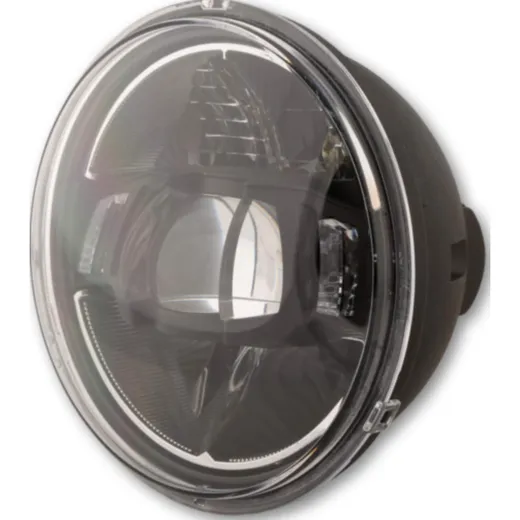

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 10

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 10

5 3/4 inch LED main headlight insert TYPE 10, high beam, low beam and parking light function, symmetrical insert, round, E-approved.

HIGHSIDER 5 3/4 inch LED main headlight insert TYPE 10 with parking light, E-approved

Dimensions:
Diameter A = 145 mm
Diameter GA = 132 mm
Diameter I = 125 mm
T = 60 mm
R = 10 mm
Cable length: 210 mm
Weight: 658 g

Connections: (3 pin plug)
Red = low beam (+)
Yellow = high beam (+)
White = position light (+)
Brown = ground (-)

Supplied: 1 piece
