HIGHSIDER LED Headlight Insert JACKSON, 5 3/4 inch

HIGHSIDER LED Headlight Insert JACKSON, 5 3/4 inch

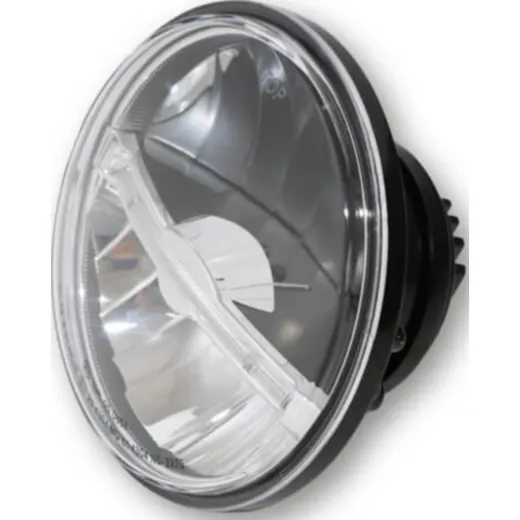

HIGHSIDER LED main headlamp insert JACKSON, round, with chrome-plated reflector, 5 3/4 inch, high beam, low beam and sidelight strip (light guide system), E-tested.

HIGHSIDER LED Main Headlamp Insert JACKSON, 5 3/4 inch

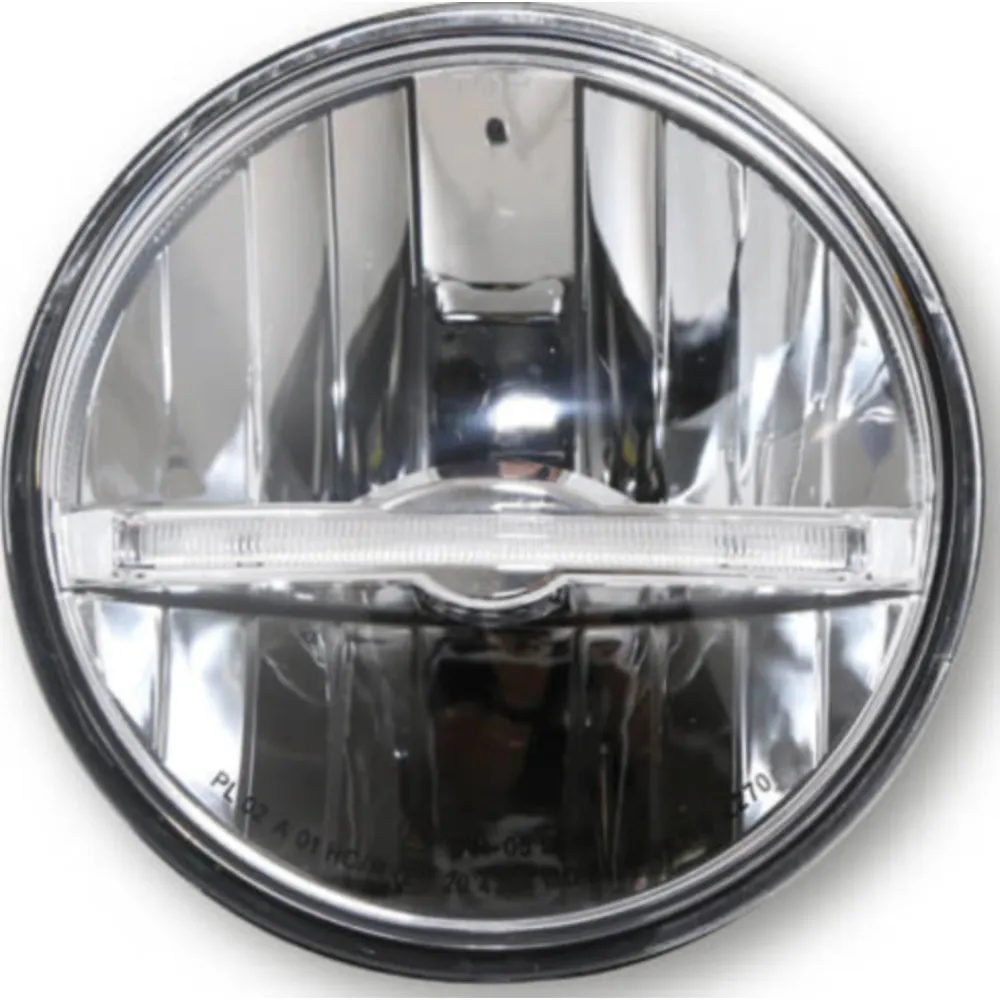

This round, chrome-plated reflector features high beam, low beam, parking light and clear glass. The parking light function is shown in the middle of the insert as a light strip (Light Guide System). The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-tested.

Attracting attention, give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm
T = 60 mm
R = 11 mm

Technical Data
Voltage: 12 V

Triple Plug Connectors
Black = Ground (-)
Blue = Low Beam (+)
Red = High Beam (+)
Separate Cable:
Red = Parking light/parking light (+)
Black = Mass (-)

Scope of supply: 1 piece

Optionally available:
Complete spotlight:
5 3/4 inch LED headlight JACKSON, black and chrome: Art.-No. 223-028 and 223-029
5 3/4 inch headlight #223-014, 223-015
plug for H4 bulbs, with 210 mm cable #396-042
Fits not into BATES STYLE headlight, 5 3/4 inch (#222-018, -019)
