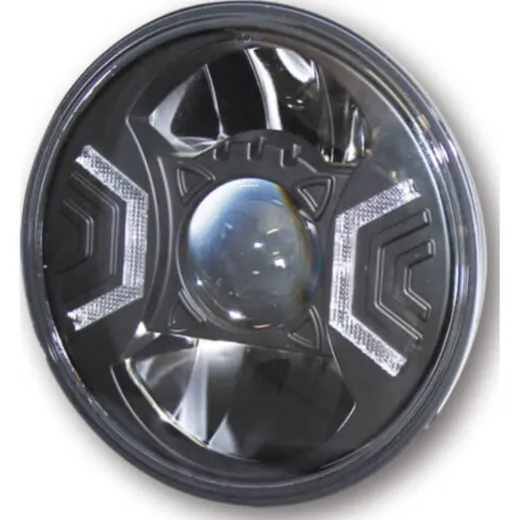

HIGHSIDER LED Main Headlamp Insert Type 2, 7 inch, black

HIGHSIDER LED Main Headlamp Insert Type 2, 7 inch, black

HIGHSIDER LED main headlight insert TYPE 2, round, with reflector, 7 inch, high beam, dipped beam and parking light function E-examined

Available in various colours.

HIGHSIDER 7 inch LED main headlamp unit TYPE 2

This round, black or chrome-plated reflector has high beam, low beam and parking light functions and shines an asymmetrical - onlyapproved for right-hand traffic - luminous flux off, E-tested.

See and be seen - give your bike a distinctive style!
The unusual design and the perfect technologyof the HIGHSIDER headlight series make it a highlight in any case!
br/&gtDimensions:
Diameter A = 176 mm
Diameter GA = 165 mm
Diameter I = 160 mm

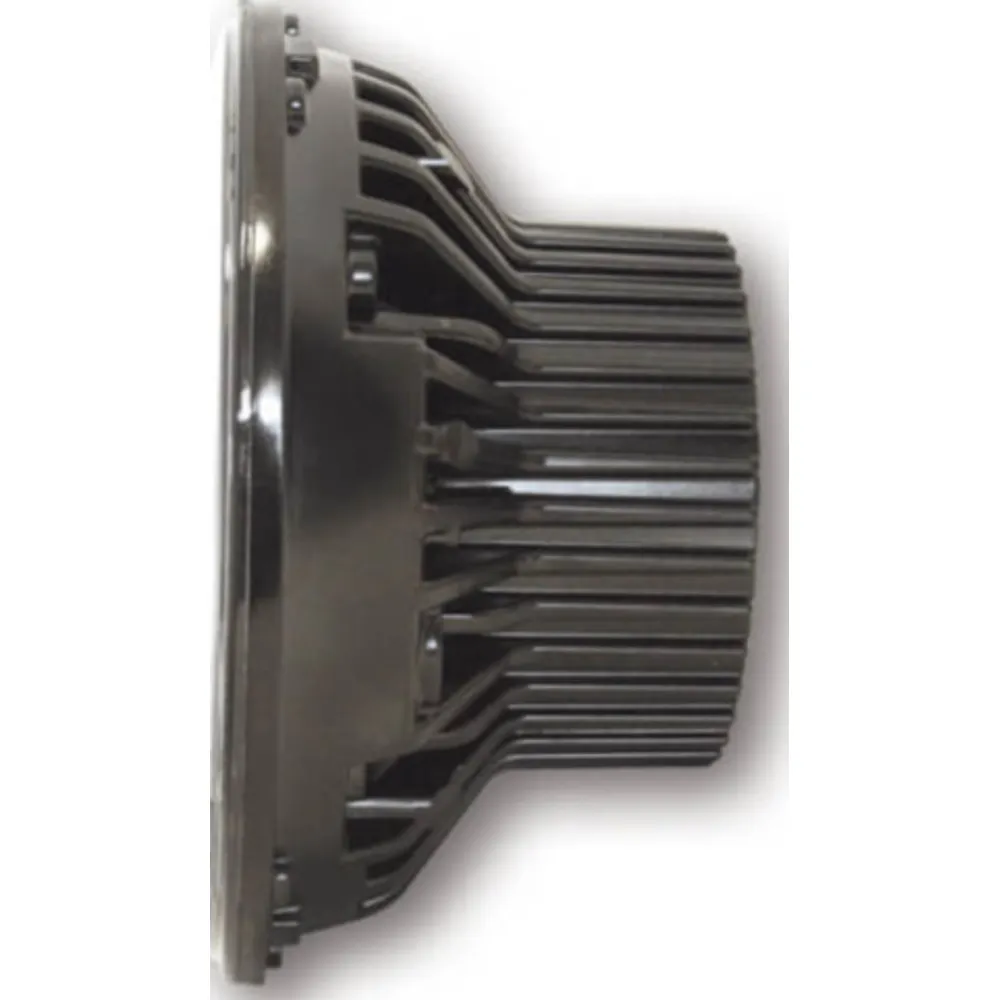

Diameter heat sink K = 99 mm
T =81 mm
R = 8 mm
br/&gtTechnical data:
Current consumption at 12.5 Volt DC:
Dipped beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1450 Lumen

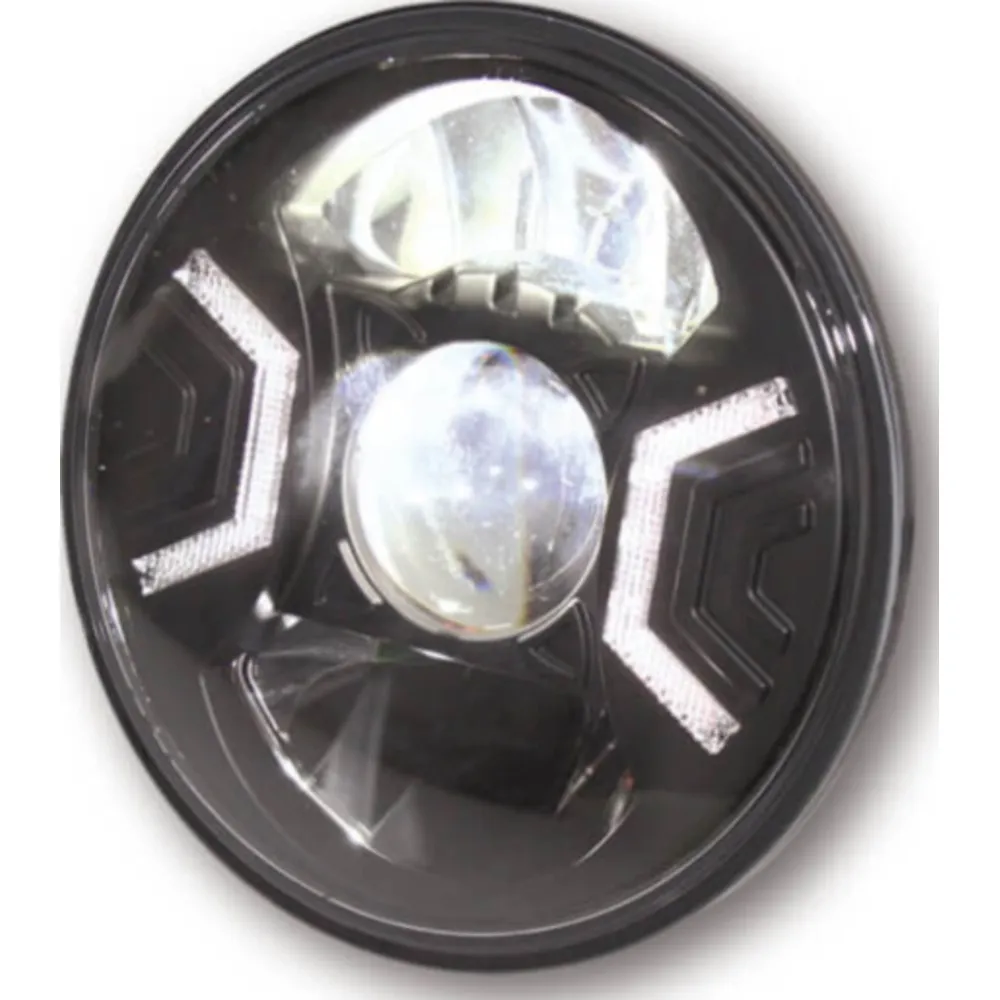

Only the upper reflector and the middle reflector are illuminatedEllipsoid insert.

High beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1582 Lumen
Only the upper and the lower reflector are illuminated. When the headlight flasher is activated, the middle ellipsoid insert goes out.

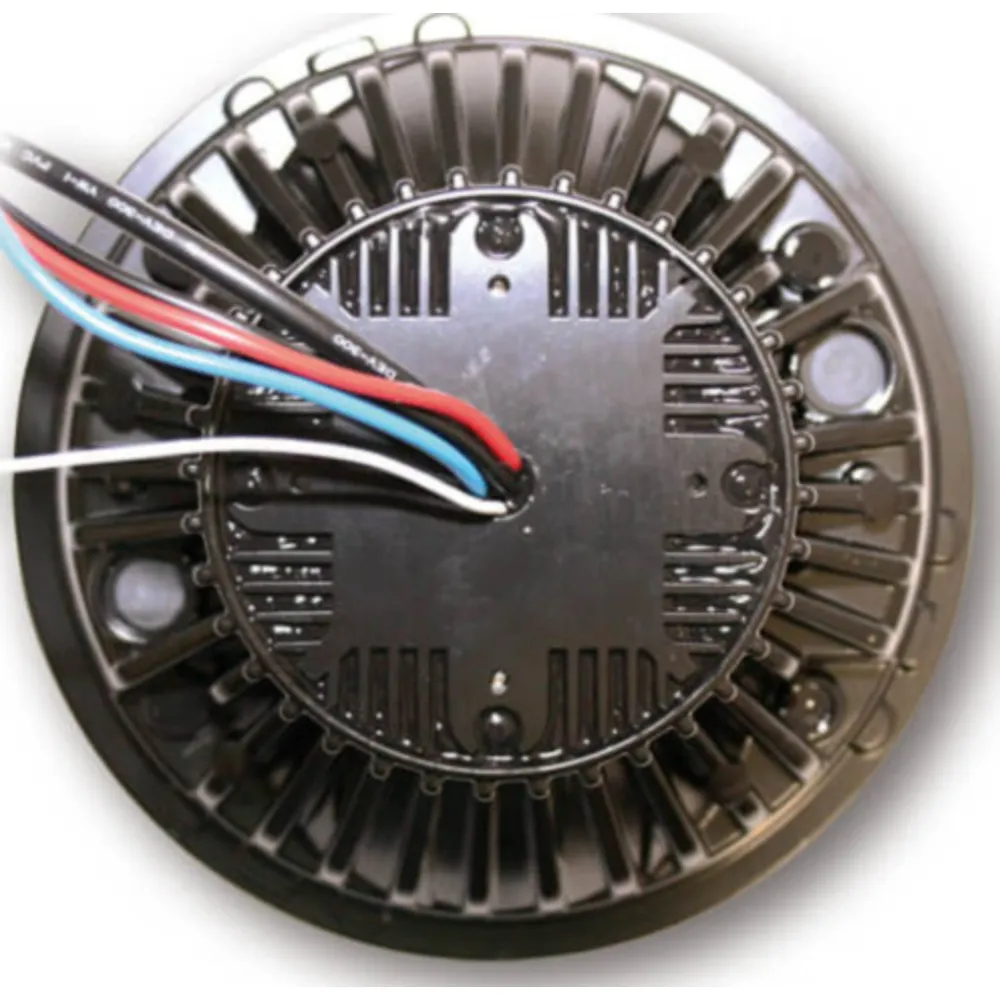

Connections:
The following 3 cables end in a combi-connector:
Black = Ground (-)
Red = Plus high beam (+). &ltBr/&gtBlue = Plus dipped beam (+). Br/&gtAdditional 2 cables for parking light: Br/&gtBlack = ground(-)
Red = Parking light (+)
White= Connection for indicator light (can be used optionally)

Supply includes: 1 piece

Notes:
Asymmetrical use, approved for right-hand traffic only.
TheReflector can also be ordered complete with black housing:
Art. no. 223-184 and 223-131.
