HIGHSIDER LED Main Headlamp Insert VOYAGE, 7 inch

HIGHSIDER LED Main Headlamp Insert VOYAGE, 7 inch

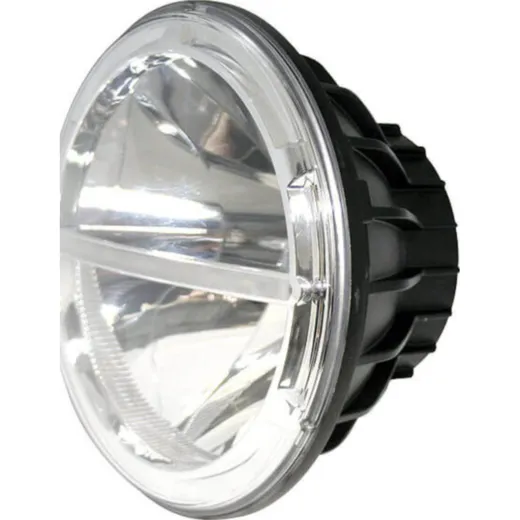

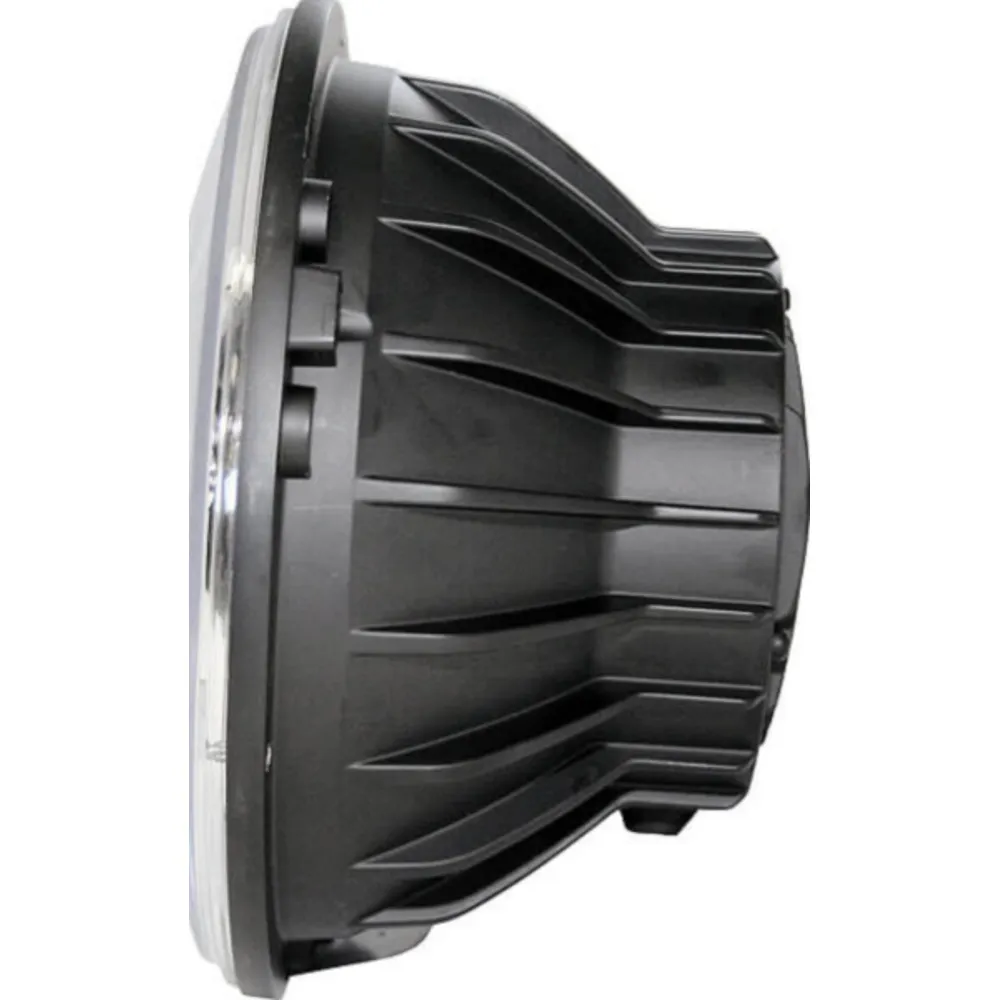

HIGHSIDER LED headlight insert VOYAGE, round, with chromed reflector, 7 inch, high beam, low beam and parking light function E-marked.

HIGHSIDER 7-inch LED headlight insert VOYAGE

Chrome-plated insert in a round shape. The LED technology and the used reflector produce a symmetrical, bright light and provide for an optimal perception of bikers by other road users, E-examined.

Sensational give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions:
Diameter A = 177 mm
Diameter GA = 167 mm
Diameter I = 157 mm
T = 85 mm
R = 8.5 mm

Technical data:
Power consumption at 12.5 Volt:
Dipped beam: 1.4 Ampere (approx. 17,5 Watt), approx. 1170 Lumen.
High beam: 1,5 Ampere (approx. 18.5 watts), approx. 1200 lumens.

Connectors, 3-pin combination plug:
Black cable = Ground (-)
White cable = Low beam (+)
Yellow cable = High beam (+)
Red extra cable = Parking light (+)

Scope of supply: 1 piece

Notes:
Symmetrical reflector - also approved for left-hand traffic.
The reflector can also be ordered complete with housing:
Art.-No. 223-160, 223-161, 223-162, 223-163, 223-164 and 223-165.
