HIGHSIDER LED main headlamp insert TYPE 3, round reflector and cover, 7 inch

Available in different colours

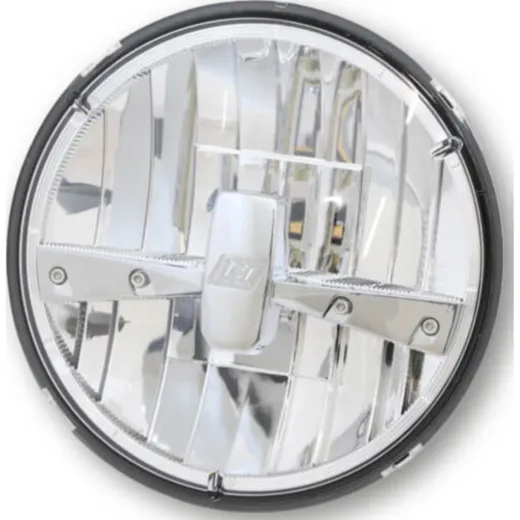

HIGHSIDER LED Headlight Insert TYPE 3

This round, chrome-plated reflector with black or chrome-plated bezel has high beam, low beam and parking light functions and emits an asymmetrical luminous flux - only permitted for right-hand traffic, E-approved.

Our highlights give your bike your unmistakable style! The fancy design and the perfect technology of the HIGHSIDER headlight series makes your bike a highlight in any case!

Dimensions:
Diameter A = 177 mmDiameter GA = 168 mmDiameter I = 160 mm
T = 61 mm
R = 10 mm
Connections:
Black cable = Ground (-)
Red cable = Low beam (+), Power consumption: at 12 Volt 18 Watt approx. 1132 Lumen.
White cable = high beam (+), power consumption: at 12 Volt 30 Watt approx. 1770 Lumen.
Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt

Scope of supply: 1 piece

Notes:
Application asymmetrical, approved for right-hand traffic only.
Complete spotlight Art.-No. 223-146 and 223-148
