HIGHSIDER LED main headlight insert type 4, DRL, 7 inch

HIGHSIDER LED main headlight insert type 4, DRL, 7 inch

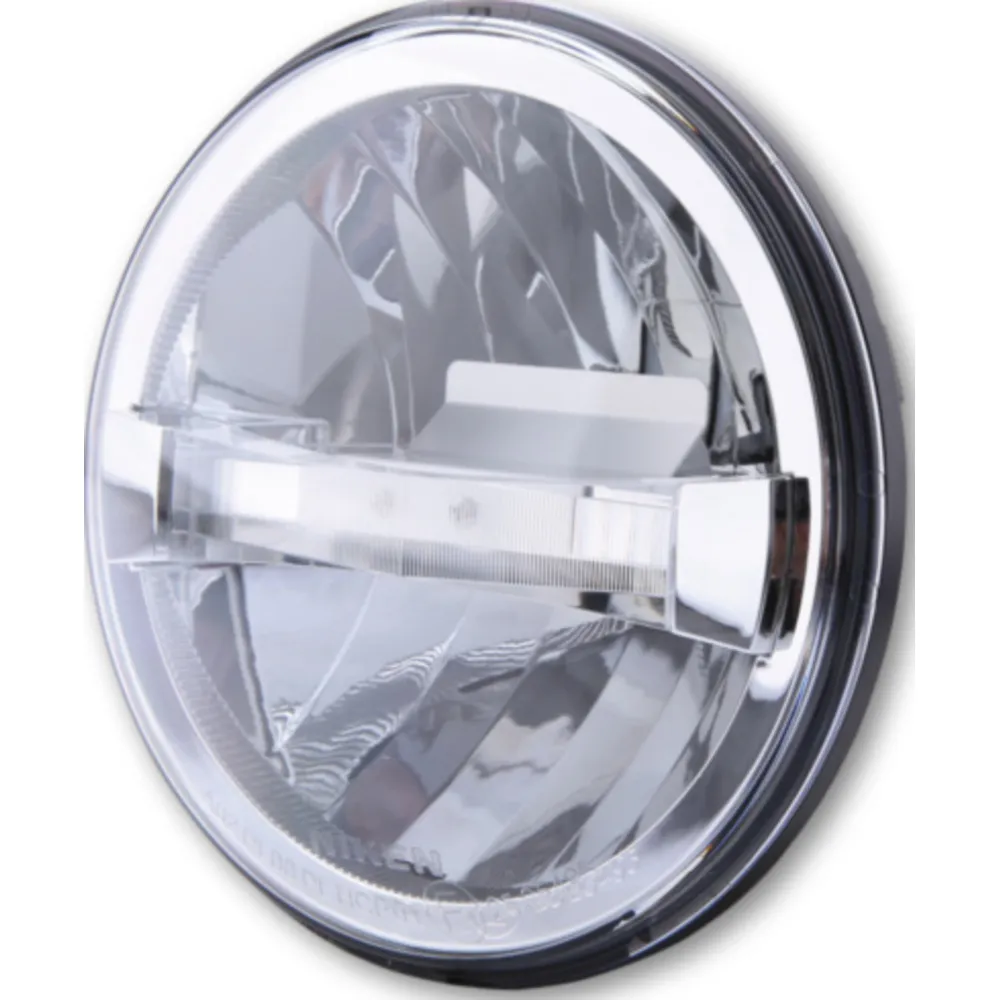

HIGHSIDER LED main headlamp insert TYPE 4, round, with chromed reflector, 7 inch, high beam, dipped beam, parking light and TFL function E-marked.

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created - the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux - only approved for right-hand traffic -, E-examined.

Our highlights give your bike your unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!

Dimensions:
Diameter A = 177 mm
Diameter GA = 168 mm
Diameter I = 160 mm
T = 61 mm
R = 10 mm

Connections:
Black cable = ground (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at12V: 1.3A, 13W
Black cable = ground (-)
TFL:
Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W
White cable = position light (+), power consumption at 12V: 0,2A, 2,4W

scope of supply: 1 piece

Optionally available:
Complete HIGHSIDER spotlights with this reflector
7 inch LED spotlight RENO TYPE 4, chrome, Art.-No.:223-152
7 inch headlight HD-STYLE, chrome, Art.-Nr.: 223-154
7 inch headlight BRITISH-STYLE, chrome, Art.-No.: 223-156

Note 1:
Use asymmetrical, approved for right-hand traffic only.
The enclosed 3-pole standard plug must be installed by the customer after installing the reflector.
View of plug contacts:
Driving light (yellow) = right
Dipped beam (blue) = top
Ground (black) = left

Note 2:
Daytime running light can also be used on vehicles without light switch. The following components are required for this:
Switch: Art. Nr. 240-044
HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
