HIGHSIDER CNC headlight holder BOTTOM TYP1 220-221

HIGHSIDER CNC headlight holder BOTTOM TYP1

CNC aluminium headlight holder BOTTOM TYP1

HIGHSIDER CNC aluminium headlight holder BOTTOM TYP1

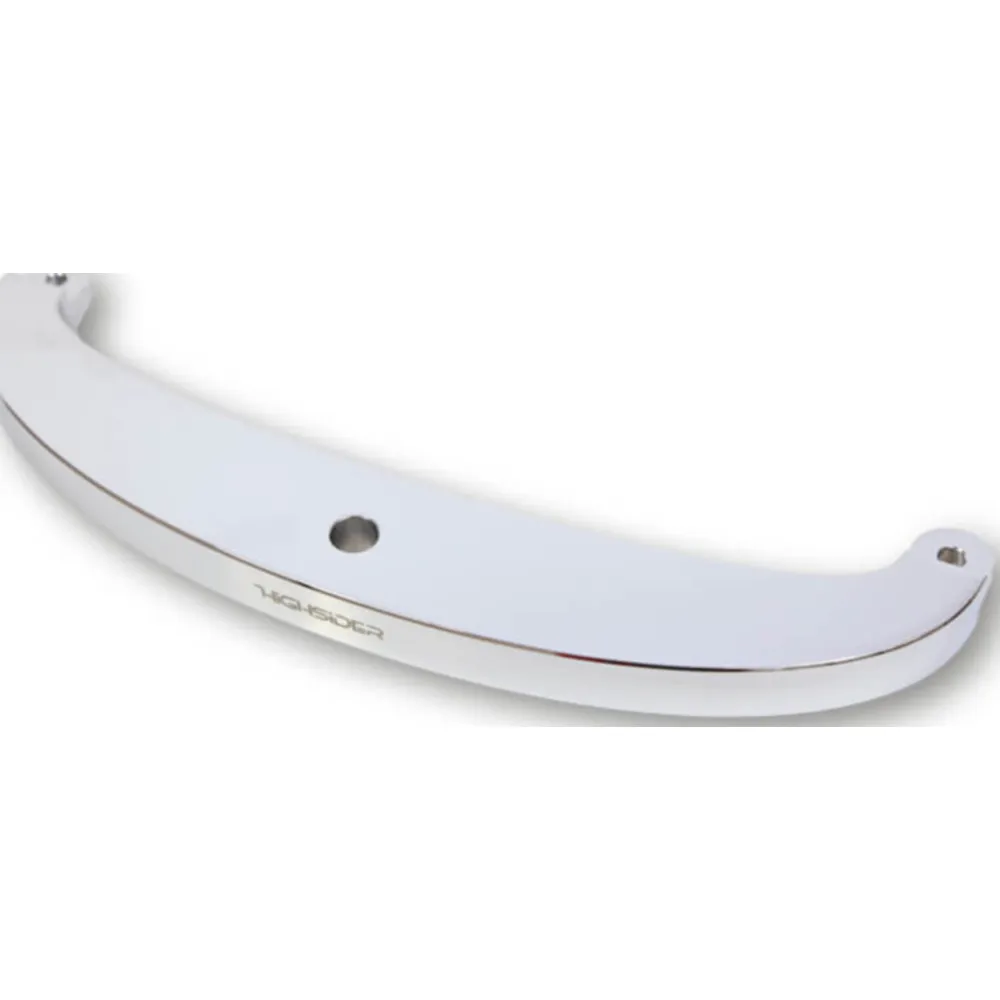

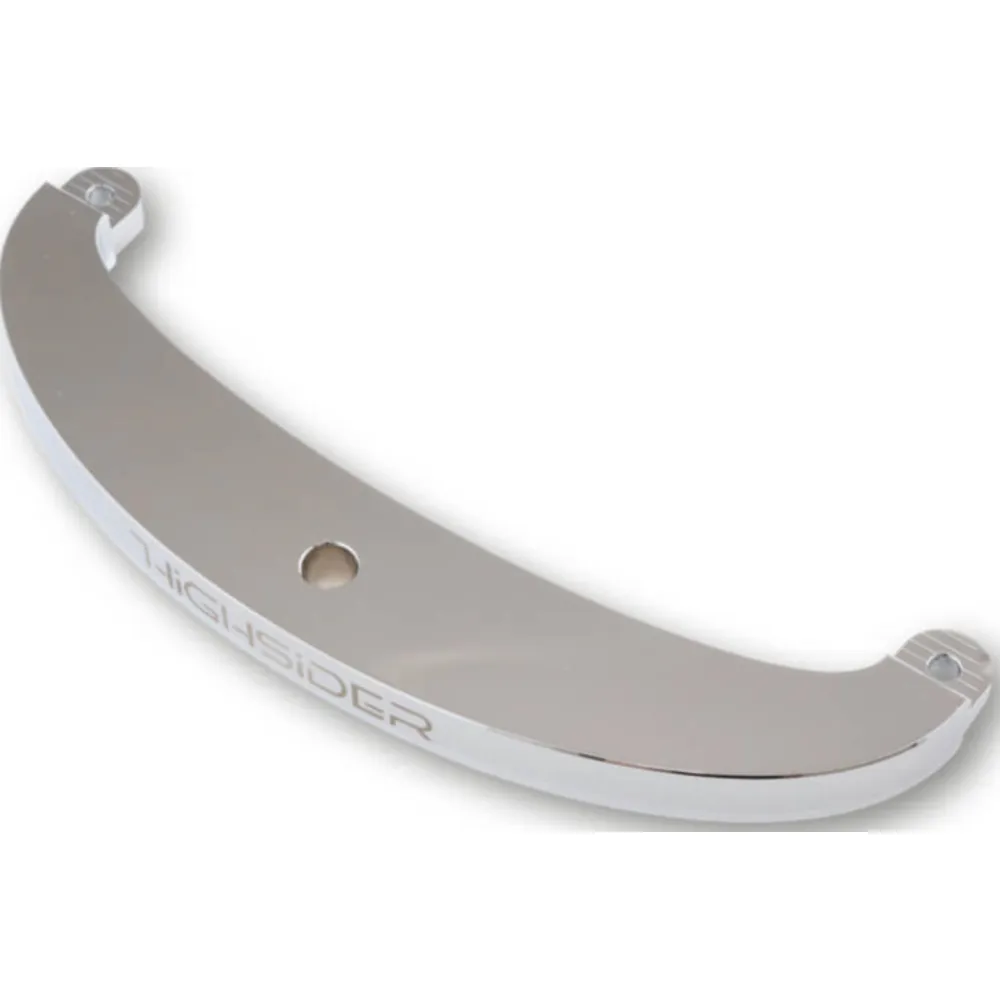

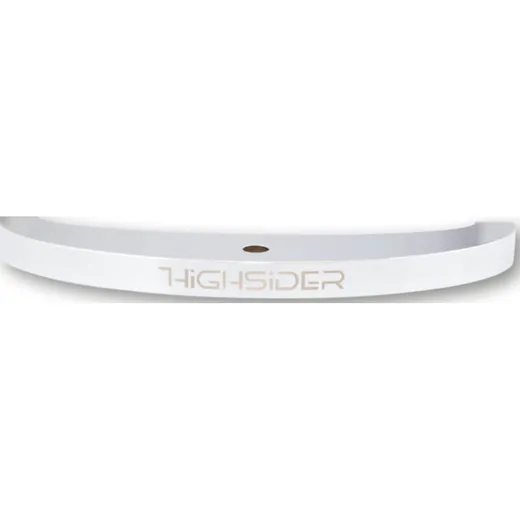

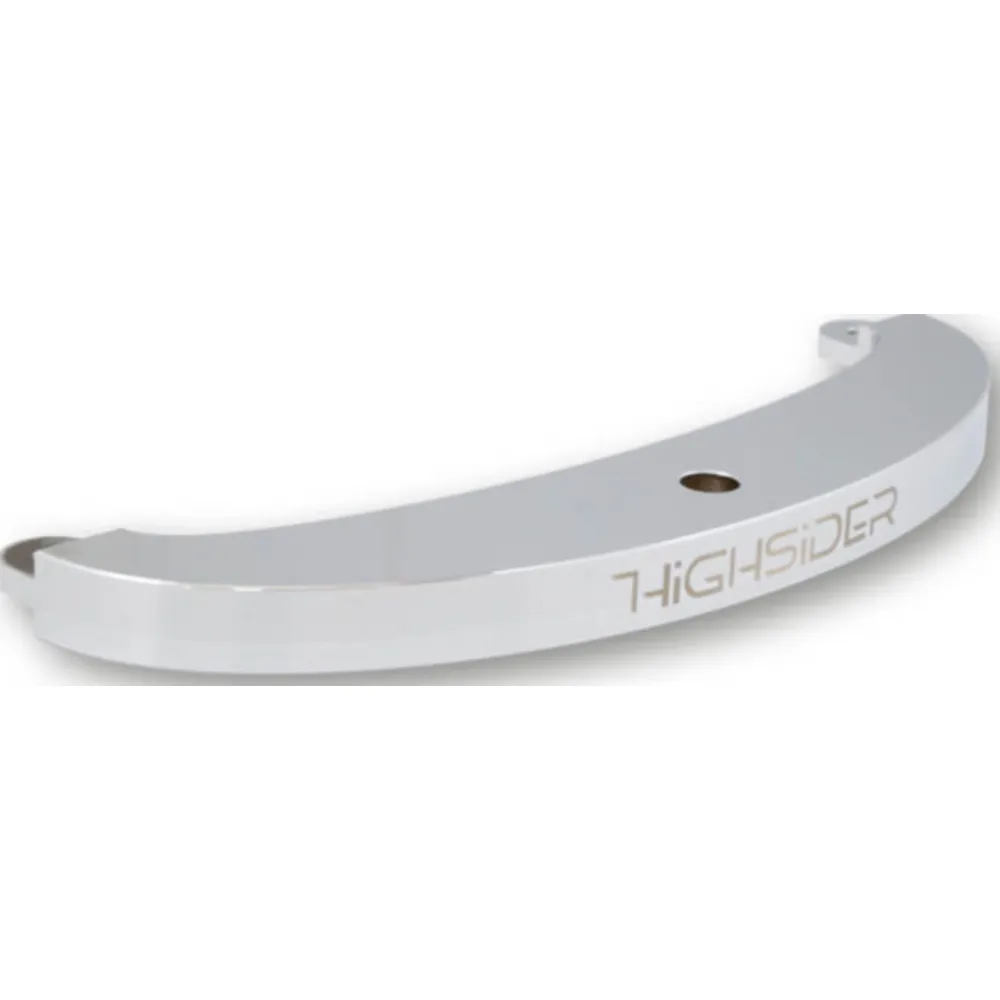

CNC-milled holder made of aluminium for mounting headlights with lower mounting.
Bore for fixing the headlight max. M 10. Suitable for forks with a width of 180 mm to 220 mm (measured from the centre of the fork standpipe to the centre of the fork standpipe).
The exact width is adjusted by changing the mounting angle on the bracket using the additional standpipe clamps required.

Precisely matched the extensive range of accessories from HIGHSIDER is perfectly tailored to your motorcycle. With a maximum of quality and functionality you can easily design your bike according to your wishes.

Dimensions of the holder:
Overall width: 217 mm
Width: 200 mm (from attachment to attachment)
Depth: 37 mm
Height: 15 mm

Scope of supply: 1 piece

Note: You will also need the standpipe clamps specially manufactured by HIGHSIDER (each supplied as a pair) for the following standpipe diameters:
Artnr. 207-403 = 35 mm - 37 mm
o. 207-405 = 38 mm - 41 mm
o. 207-409 = 42 mm - 43 mm
o. 207-419 = 50 mm, 52 mm, 54 mm
