HIGHSIDER APOLLO module LED taillight, brake light, turn signal

HIGHSIDER APOLLO module LED taillight, brake light, turn signal

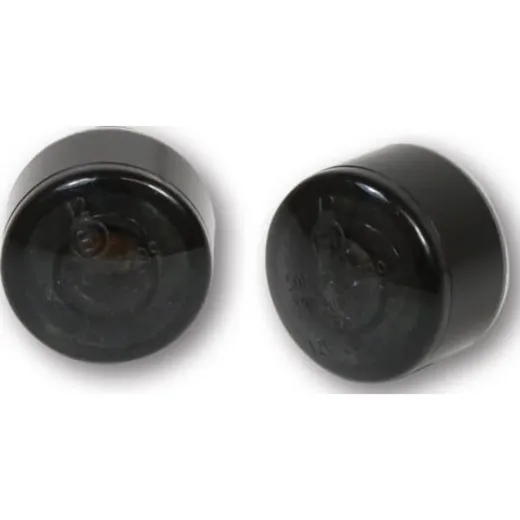

HIGHSIDER APOLLO module LED rear light, brake light, turn signal, black aluminium housing, tinted glass, pair, E-approved.

HIGHSIDER APOLLO MODUL 3in1 LED rear, brake light, turn signal, E-approved for rear

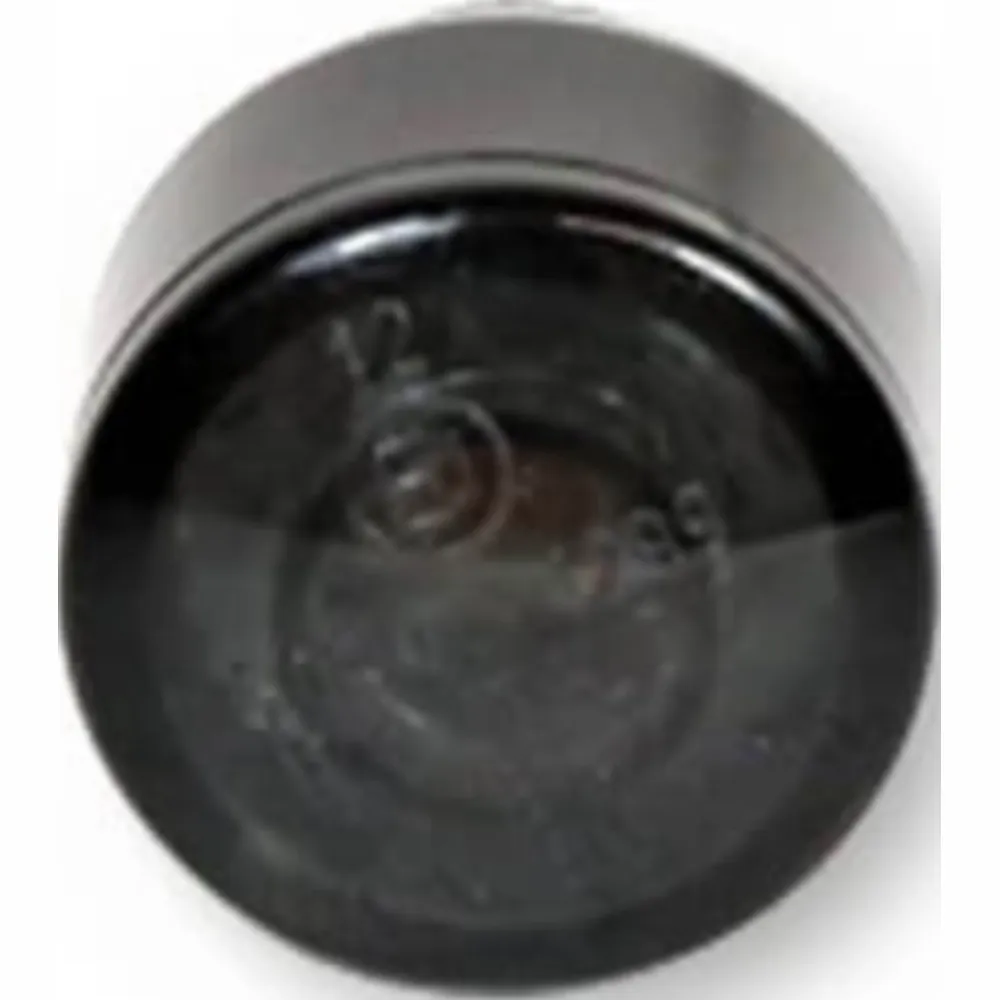

LED rear, brake light, turn signal module suitable for mounting or fitting, black aluminium ring with tinted glass. In the center 2 very bright SMD are installed. The outer ring consists of COBs (Chip On Board). In this technique, the semiconductor (without a package) is bonded directly to a printed circuit board. This module comes with a black anodized aluminum ring that fits over the base body.

The best is saved for last - the tail light and taillight/turn signal series from HIGHSIDER give you the safety you need and the look you want - whether cruiser, sportsman or speedster.

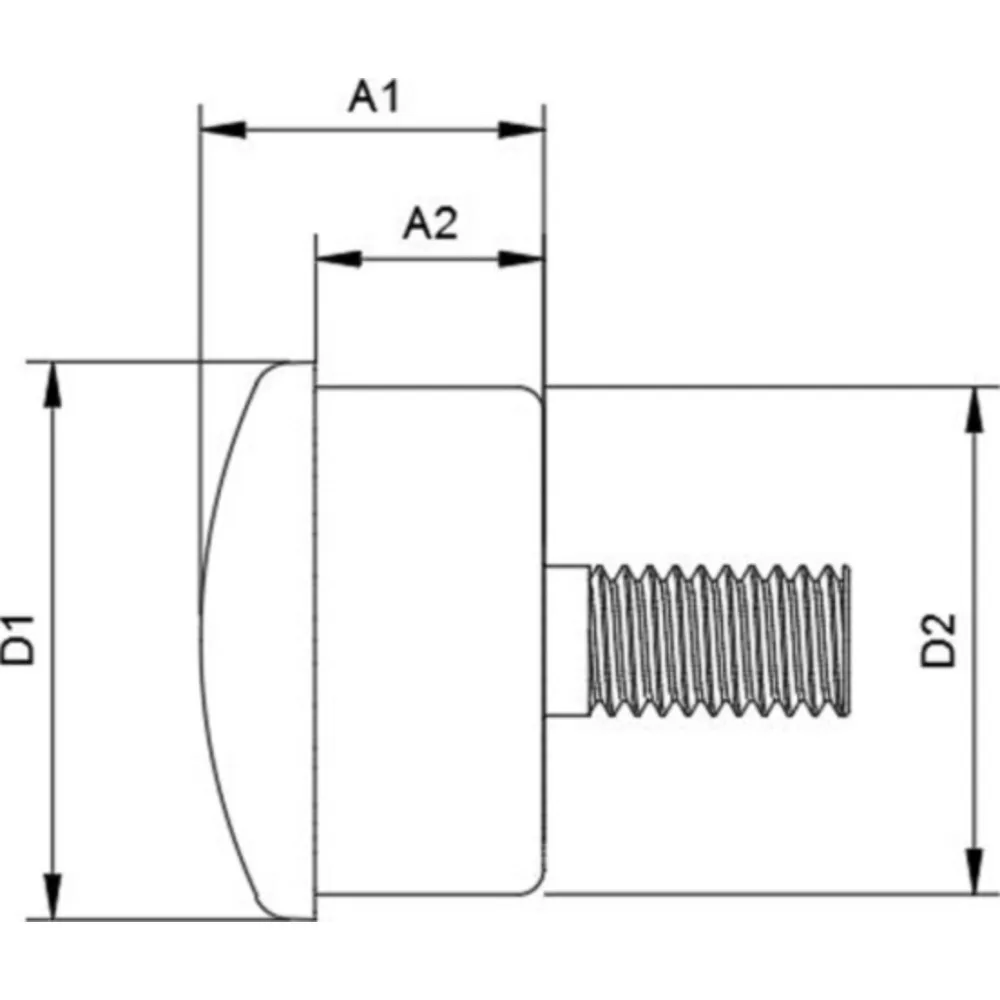

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Thread bolt: M8, length 12 mm

Connections:
Black wire = ground (-)
Yellow wire = tail light (+)
Red wire = brake light (+)
Blue = turn signal (+)

Scope of supply: 1 pair

Note:
The unit can be installed flat without the aluminium ring, so that only the lens is visible. For this purpose, a 20 mm wide hole must be drilled. Alternatively, the unit can be mounted with the aluminium ring on e.g. a retaining plate on the vehicle.
