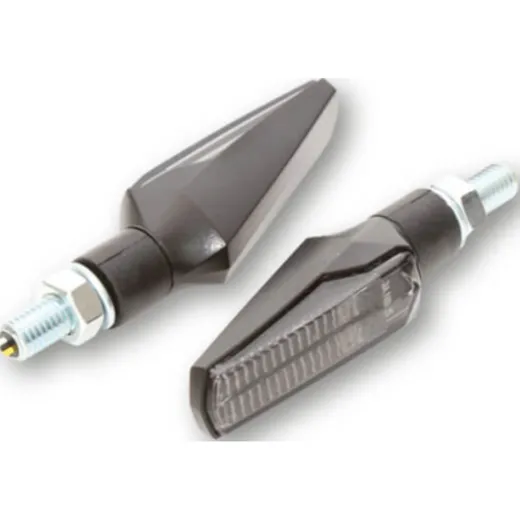

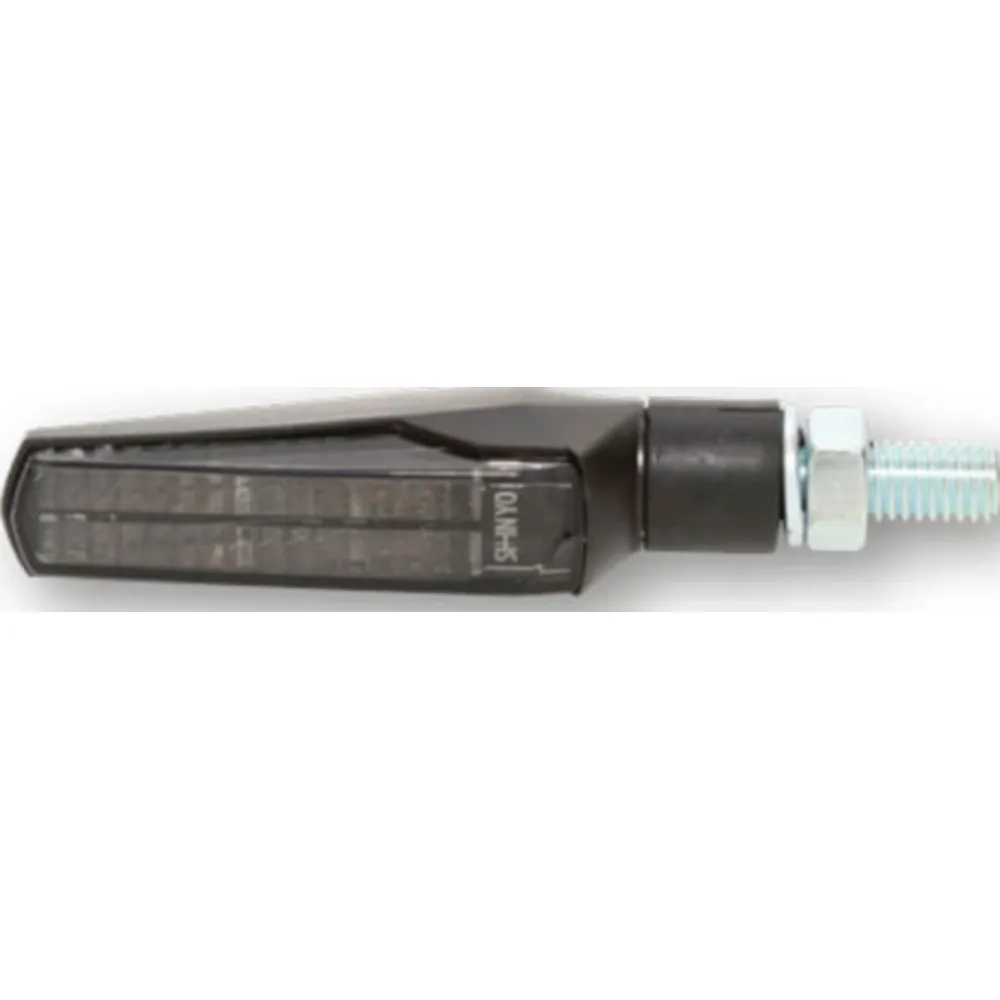

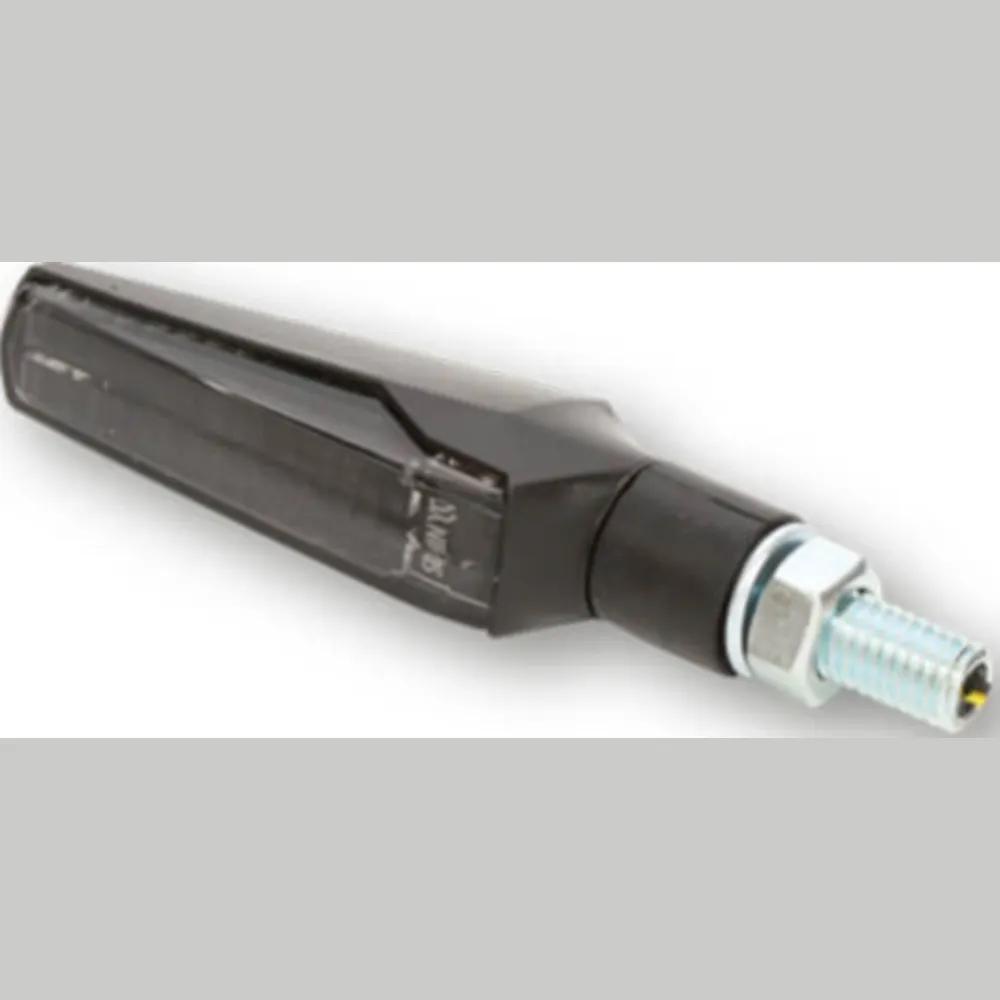

SHIN YO LED tail light, brake light, turn signal unit FINELINE, tinted glass

SHIN YO LED tail light, brake light, turn signal unit FINELINE, tinted glass

LED rear light, brake light, turn signal unit FINELINE, with light guide system, black housing, tinted glass, E-tested, pair.

SHIN YO LED tail light, brake light, turn signal unit FINELINE with black plastic housing and rubber handle. E-approved for rear.

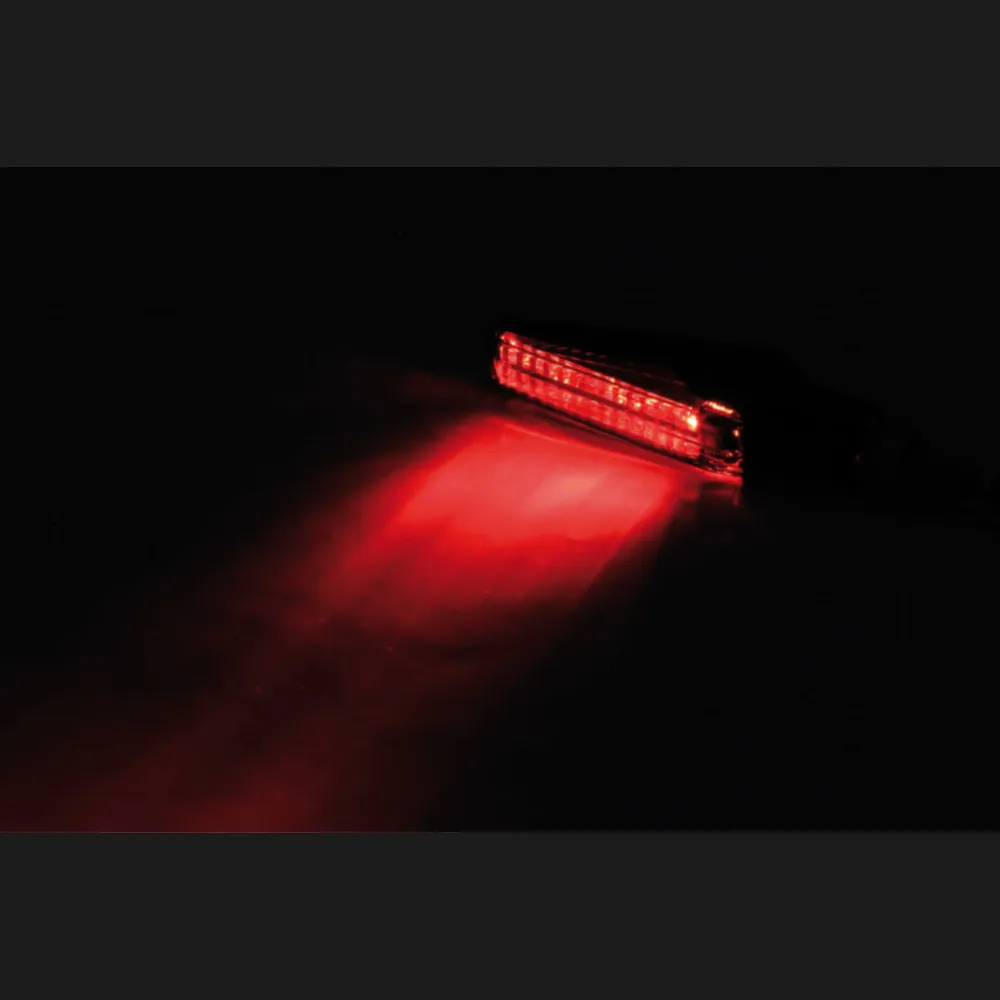

The FINELINE with tinted glass has a Light Guide System installed with 4 SMD LEDs. For all those who place high demands on their new light source and rely on light colour and brightness for their lighting. You will be surprised how much power and brightness comes from this future-oriented technology. The light guide system is designed to transport light from the light source to a point with minimal loss. This creates a beautiful light effect without seeing the LEDs.

Dimensions:
Width A: 58 mm
Width B (rubber shaft 12 mm): 70 mm
Height C: 17 mm
Depth D: 25 mm
Threaded bolt: M 8x 1,25

Connections:
Yellow cable = taillight
blue cable = turn signal
red cable = brake light
black cable = ground (-)

scope of supply: 1pair

can be ordered optionally:
fitting LED turn signal FINELINE, article no.204-174
Fitting LED Indicator / Position Light FINELINE, Article-No.204-175
