HIGHSIDER LED daytime running light Aluminium Housing

HIGHSIDER LED daytime running light Aluminium Housing

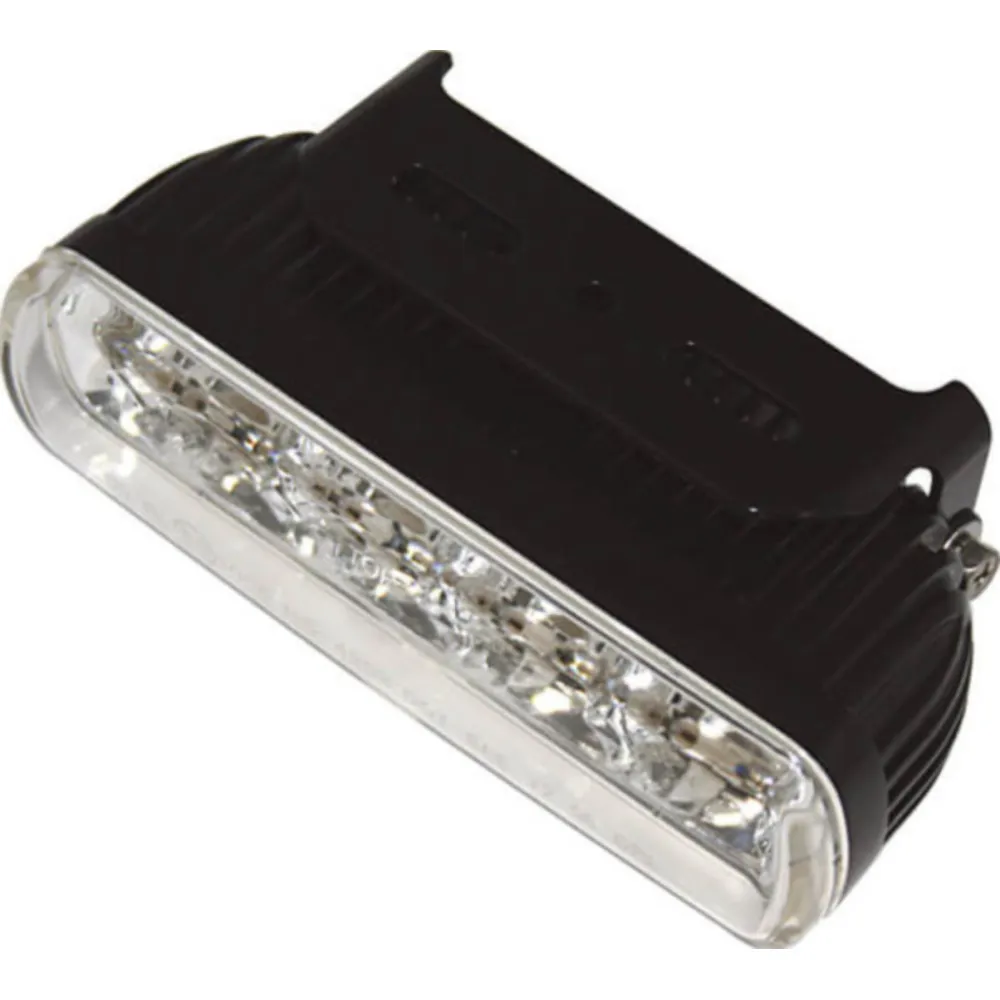

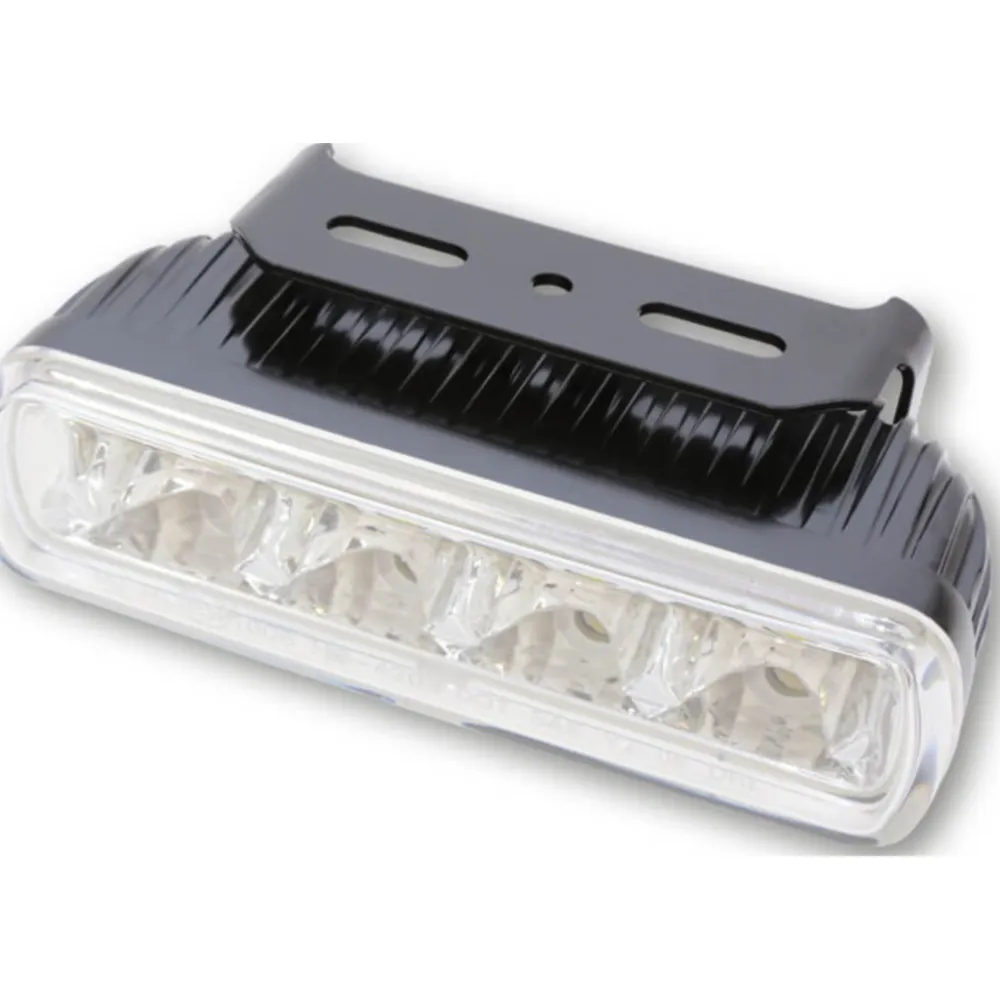

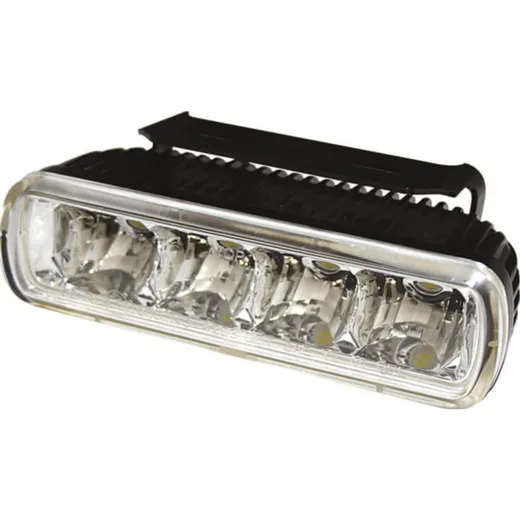

LED daytime running light with 4 LEDs, rectangular aluminium housing, black, with universal holder, E-marked

HIGHSIDER LED daytime running light
The LED daytime running light with 4 LEDs à 1 Watt is built into a rectangular, black housing made of aluminium. The powerful LEDs significantly increase the perceptionof motorcyclists by other road users. Including universal holder, E-approved.

See and be seen - give your bike personality! The fancy design and theperfect technology of the HIGHSIDER headlight series will definitely make you a sensational highlight!

Dimensions:
Width: 145 mm
Height: 40.5 mm
Depth: 66 mm

TechnicalSpecifications:
Current consumption at 12.5 Volt: only 0.3 Ampere (approx. 3.75 Watt)
Light current at 12 Volt: 215 Lumen

Connections:
Black cable: ground (-)
Red cable = plus (+), is connected to switched plus(ignition) connected.
White cable = is connected to the dipped beam control cable

Supplied with: 1 piece

Note 1 - with existing light switch:
Prerequisite forOperation of the daytime running light (TFL) is a manually switched low beam (light switch), as otherwise the function of the TFL would be cancelled.
According to the road traffic regulations, the TFL must bemust be connected so that it goes out when the main headlamp is switched on.
(Exception: Operating the headlamp flasher). The rear tail light must always remain switched on, i.e. on ignition pluslegen.

Note 2 - without existing light switch:
The daytime running light can also be used on vehicles without a light switch. The following components, for example, are required for this purpose:
Switch: Art. No.240-044
HIGHSIDER DRL CONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
