HIGHSIDER LED taillight unit MONO

HIGHSIDER LED taillight unit MONO

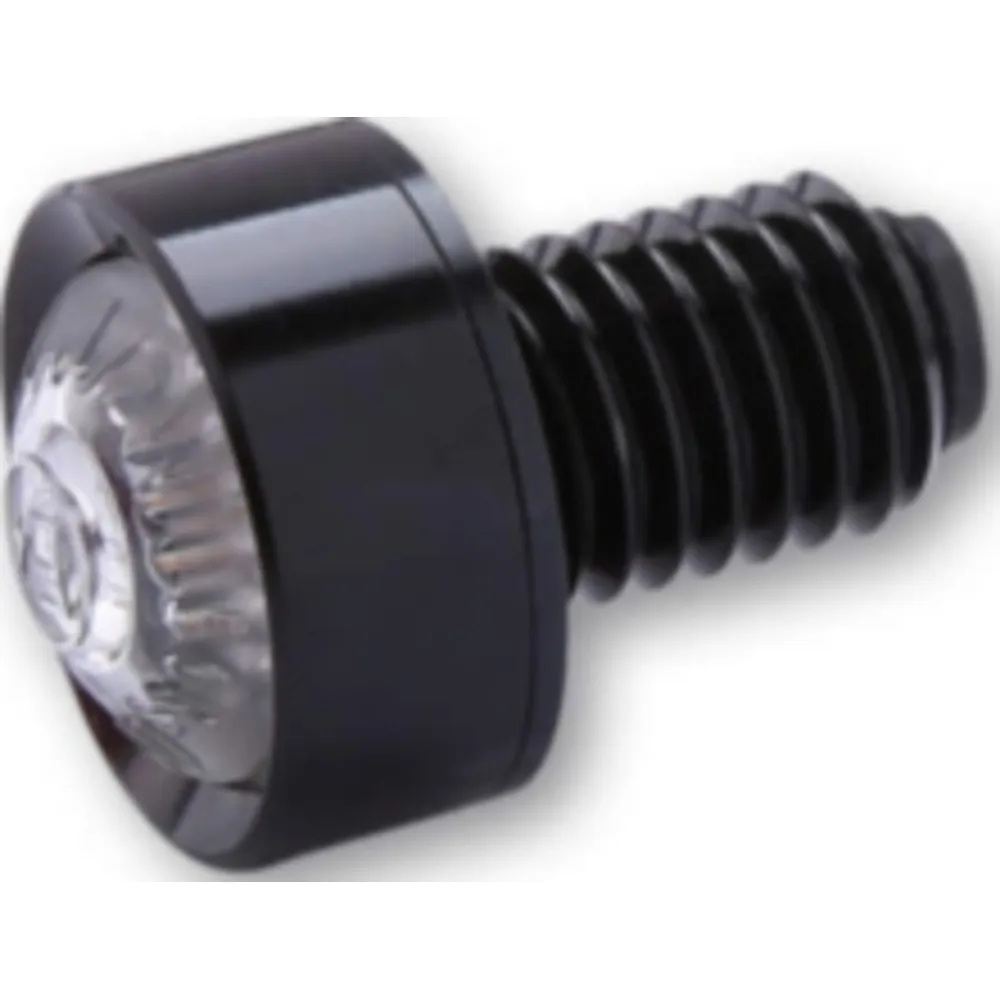

HIGHSIDER LED taillight unit MONO, clear glass, d. 18 mm, E-tested.

HIGHSIDER LED taillight / brake light combination unit MONO

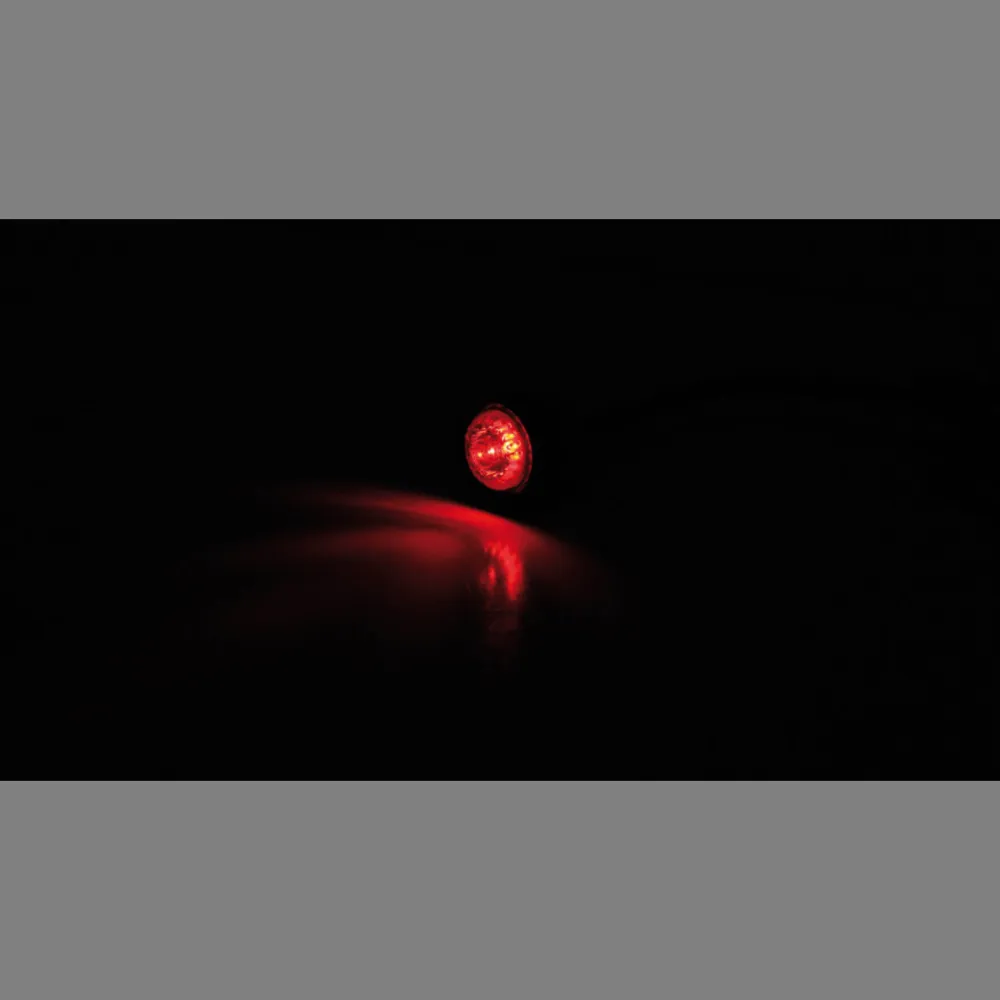

taillight with a power LED and clear glass, embedded in a round aluminum housing, E-marked.

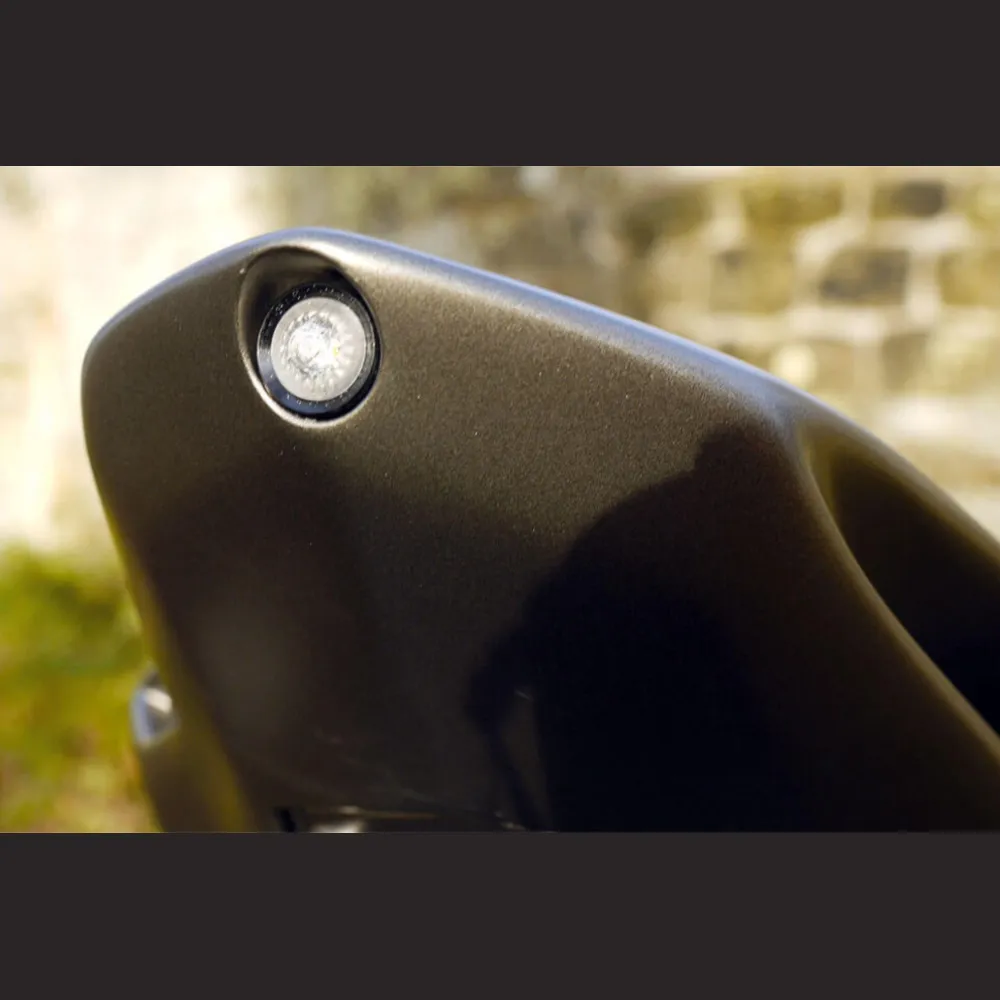

The HIGHSIDER taillight and taillight/indicator series are sure to be seen to give you the safety you need and the look you want whether cruiser, scooter or speedster.

Dimensions:
Diameter: 18 mm
Height: 8 mm
Fixing: Threaded bolt M10 x 1.5 mm, length: 13 mm and nylon nut.

Current consumption at 12.5 Volt:
rear light = 0.02 Amperes
brake light = 0.13 Amperes

connections:
Black cable = ground (-)
Yellow cable = rear light (+)
Red cable = brake light (+)

Scope of supply: 1 piece, housing color selectable.

Optionally available:
Fitting LED indicators: Art.-No. 203-215
