SHIN YO LED taillight LIGHT GUIDE

SHIN YO LED taillight LIGHT GUIDE

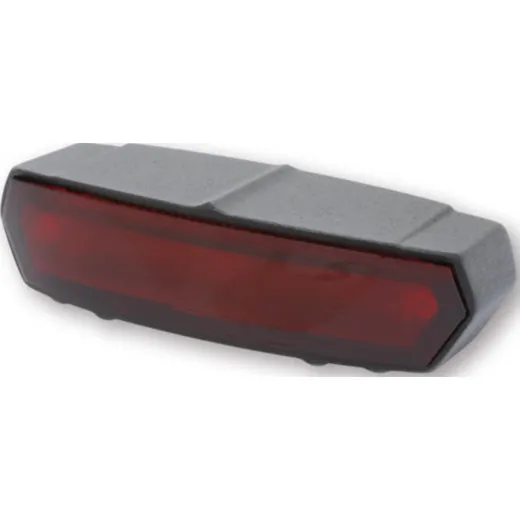

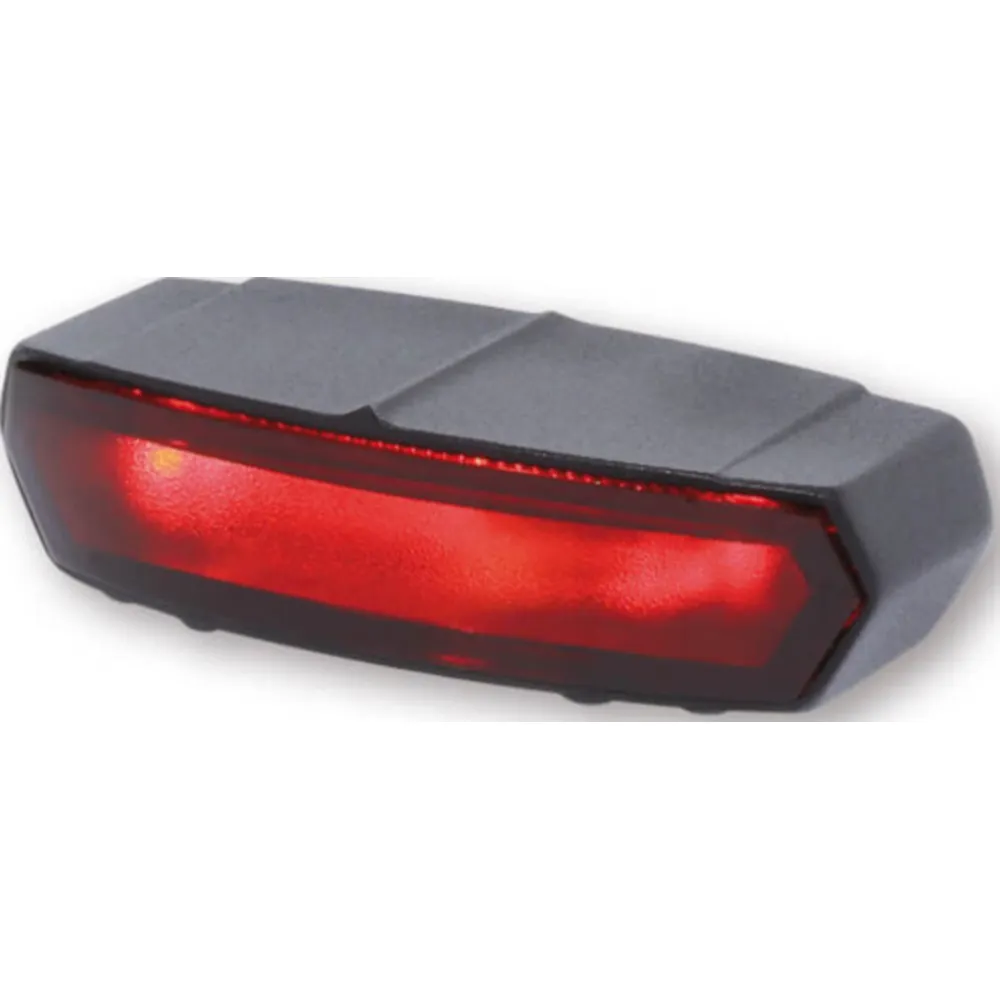

SHIN YO LED taillight LIGHT GUIDE with license plate light, metal housing, red glass, E-marked.

SHIN YO LED- tail light LIGHT GUIDE with brake light function.

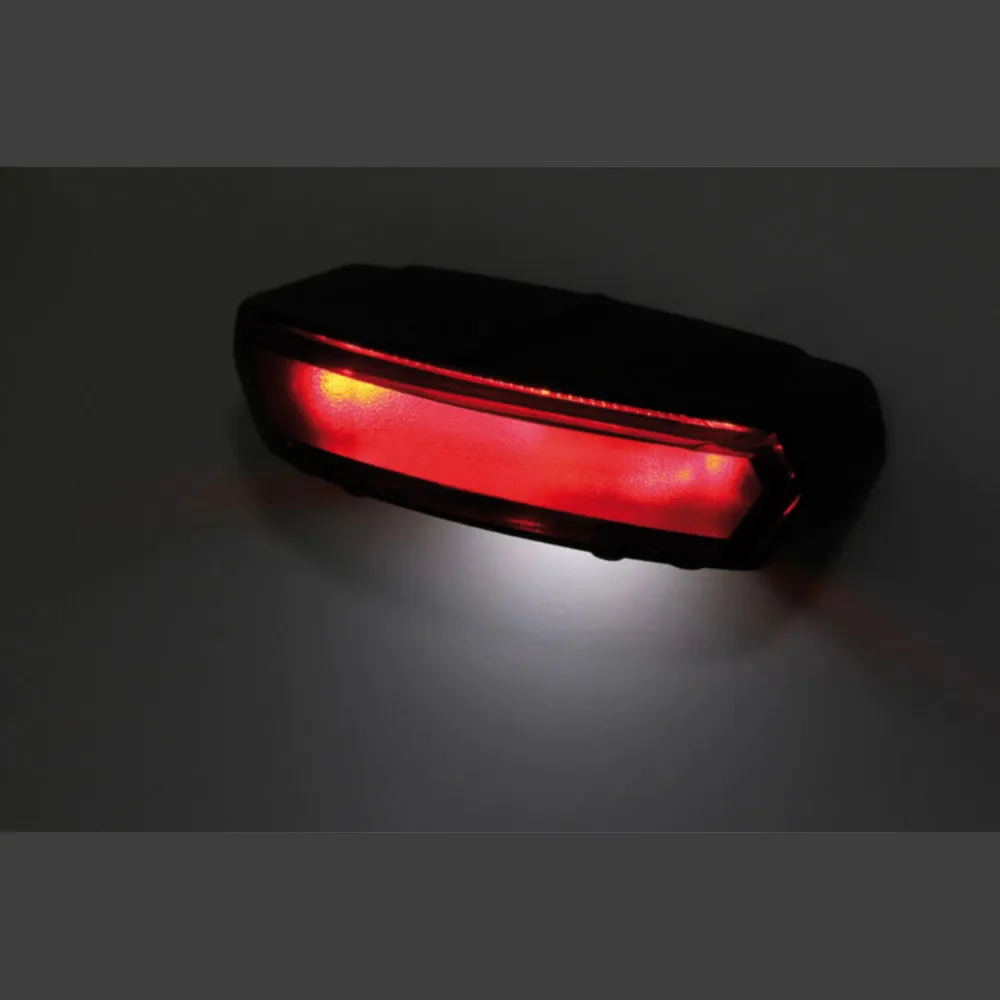

Universal use LED tail light with license plate light, packed in a high quality metal housing and red glass. Due towith the innovative LIGHT-GUIDE technology the light emission appears as a continuous strip, E-.tested.

dimensions
width: 84 mm
height: 25 mm
depth: 37 mm

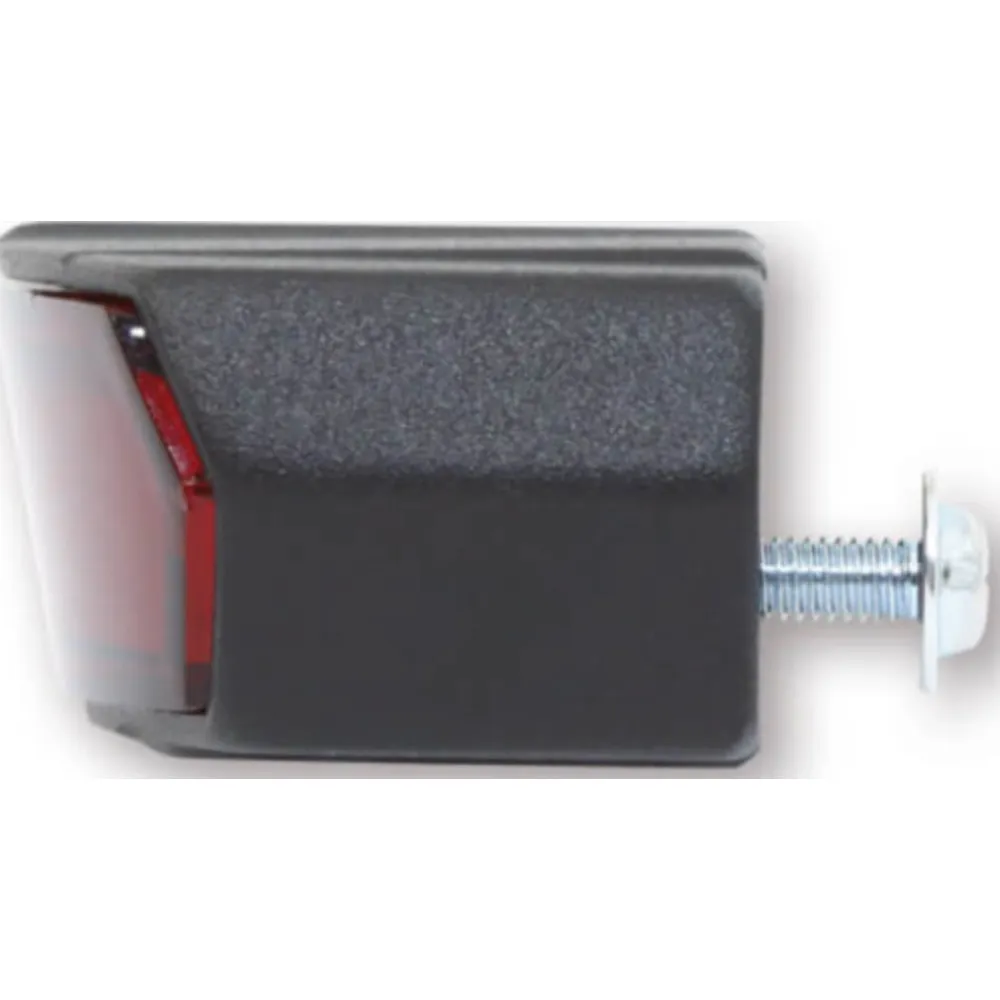

br/&gtfixing screws: 2 x M4(rear side of housing)

Connections:
Green cable = ground (-)
Yellow cable = tail light (+)
Blue cable = stop light (+)

&gtBlue cable = brake light (+)

Blue cable = brake light (+)

Blue cable: 1 piece, in different housing coloursavailable.

Note: The tail light must not be connected without the black electronics box included in the scope of delivery!
