SENSOR TYRE PRESSURE CONTROL SYSTEM SCHRADER

SCHRADER SENSOR TYRE PRESSURE CONTROL SYSTEM

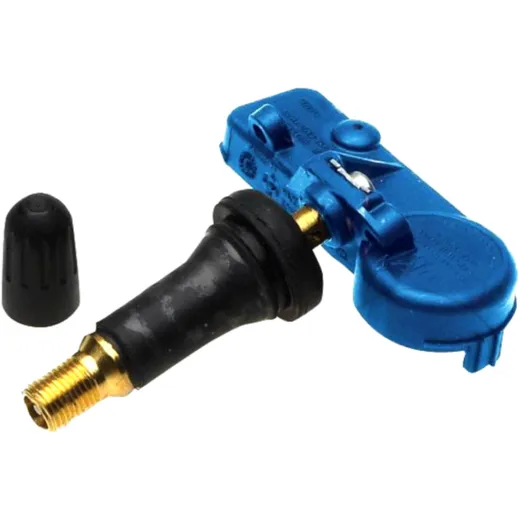

The Schrader RTPMS sensor with a snap-in valve provides an efficient solution for monitoring tire pressure. This comprehensive system includes a plastic housing that integrates the sensor's measuring electronics with an aluminum valve, forming a complete valve unit.

It is essential to activate the sensor with the appropriate programming device specific to the vehicle. The assembly is determined by the original manufacturer, whether it be the vehicle itself or the wheels made of aluminum or steel. Different valve units vary in the angle of the valve to the housing and the types of seals required.

During tire changes, it is crucial to replace the valve insert, valve cap, seal, and hex nut with genuine Schrader spare parts to ensure optimal functionality.

Sensor Specifications:

• Sensor: RTPMS with snap-in valve
• Tightening Torque for Sensor: 1.4 Nm (connection screw from sensor to valve)
• Compatible Wheel Types: Steel / LM (Alurad)

Compatibility:

Fits the following models:

• Citroën: C4 Picasso (05/2006 - 09/2013), DS4 (12/2010 - 01/2014), DS5 (06/2011 - 01/2014), Jumper (01/2006 - 11/2013)
• Peugeot: 3008 (11/2008 - 09/2013), 307 (04/2007 - 12/2007), 308 (04/2007 - 08/2013), 5008 (09/2009 - 09/2013), RCZ (12/2009 - 09/2013)

OE Reference Numbers:

• 5430W0 Citroen
• 5430W0 Peugeot

Schrader Reference: 3000
