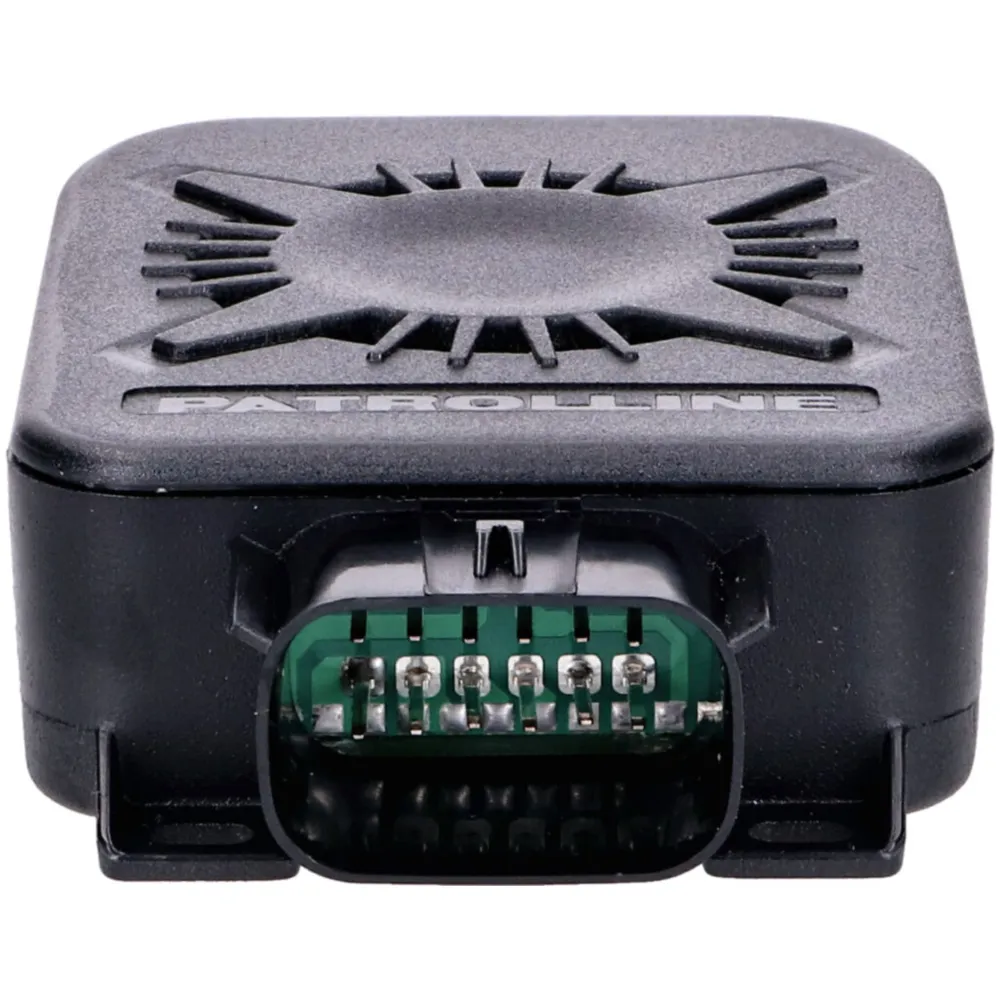

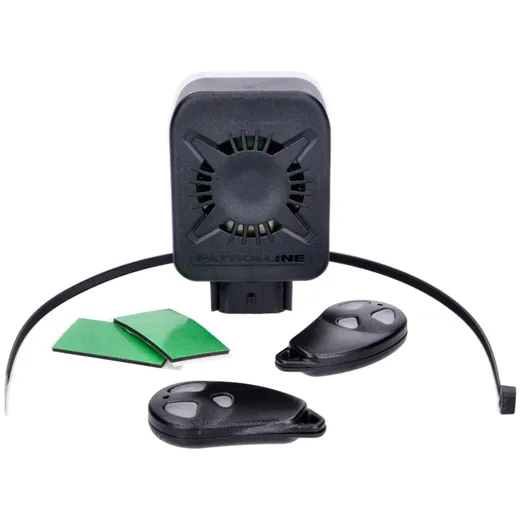

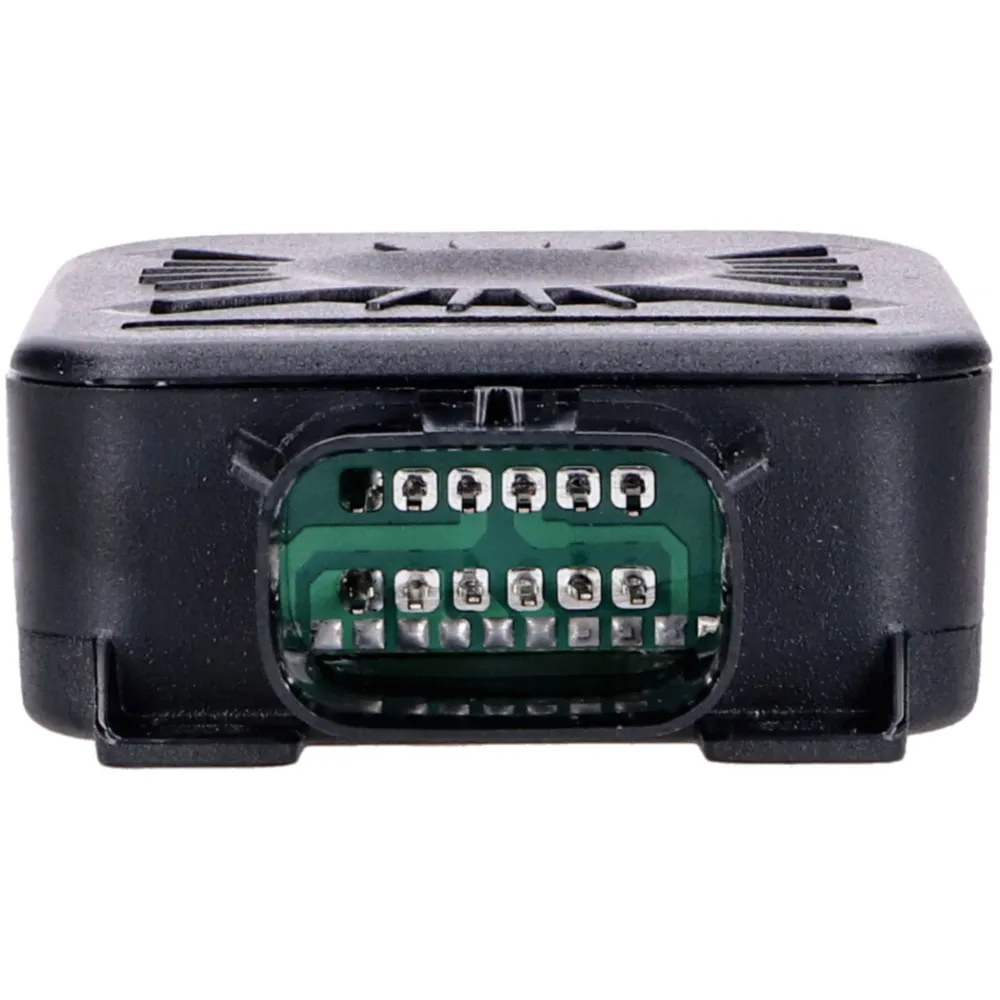

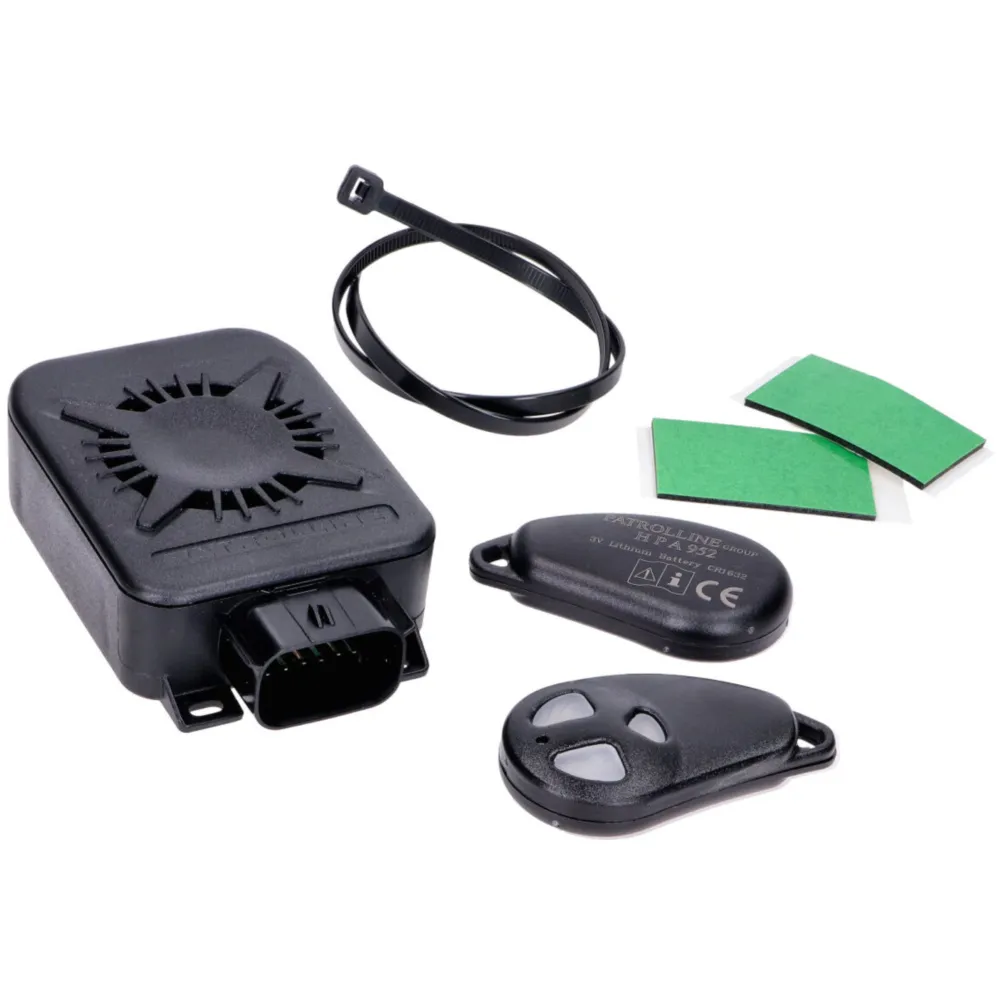

Universal alarm system HPS 940 from Patrol Line with two remote controls including operating instructions (German).
Small-sized, waterproof anti-theft device with adjustable vibration sensor that triggers a loud warning tone (113 dB) when the vehicle moves, activates all turn signals and the vehicle's immobilizer. The integrated emergency battery triggers the alarm even if the vehicle's power supply is interrupted. The security can be further increased by a variety of additional sensors.
.The wireless alarm system can be mounted on any vehicle in combination with a universal wiring harness. Prefabricated wiring harnesses for many models of Aprilia, Benelli, Honda, Kawasaki, KTM, Kymco, Moto Guzzi, Piaggio, SYM, Suzuki, Triumph, Vespa or Yamaha are available separately from the manufacturer. The scope of delivery does not include a wiring harness. This must be ordered separately.
Technical data:
Dimensions:
Small-sized, waterproof anti-theft device with adjustable vibration sensor that triggers a loud warning tone (113 dB) when the vehicle moves, activates all turn signals and the vehicle's immobilizer. The integrated emergency battery triggers the alarm even if the vehicle's power supply is interrupted. The security can be further increased by a variety of additional sensors.
.The wireless alarm system can be mounted on any vehicle in combination with a universal wiring harness. Prefabricated wiring harnesses for many models of Aprilia, Benelli, Honda, Kawasaki, KTM, Kymco, Moto Guzzi, Piaggio, SYM, Suzuki, Triumph, Vespa or Yamaha are available separately from the manufacturer. The scope of delivery does not include a wiring harness. This must be ordered separately.
Technical data:
- Voltage supply: 12V DC (10-15V) .
- Current consumption: < 1.5mA .
- flasher relay max current: 5A + 5A
- Avoid relay max. current: 5A
- Operating temperature: -40 °C to +85 °C
- Integrated emergency battery: 7.2V 60 mA, Ni-MH (approx. 5 minutes autonomy with own power supply)
Dimensions:
- Dimensions: 90x58x24mm (installation dimensions 110x58x24mm)
- Weight: 84g
