rev limiter / speed limiter analog remote control - universal 38954

Analogue speed limiter with remote control.

Basic function:
With this analogue speed limiter 6 different capacitors can be combined. This results in 63 different choke stages for crude adjustment. In addition, an edited adjustment can be made via a stepless rotary potentiometer which is a big advantage compared to other speed limiters (of with up to 4 capacitors only)
As soon as the ignition is switched on, the limitation is automatically active. Depending on the vehicle model, the rev limiter is deactivated via push button / magnetic sensor + brake (double check), brake lever code (6-digit freely programmable), remote control or rocker switch. When restarting the engine, all vehicle models (except the version with rocker switch) are automatically reactivated.

Compatibility:
Suitable for nearly all common scooter or moped models with 2-stroke or 4-stroke engine.
Not suitable for direct injection with electronic immobiliser! The limiter is also only compatible with engines complying with the Euro3 standard and older.
Recommended lowest throttle speed is 35km/h and a reduction of the final speed by maximum 30%.

Dimensions:
Housing: 45x45x18mm
Cable length measures 45-50cm, the push button / rocker switch / magnetic sensor cable is about 100cm long.

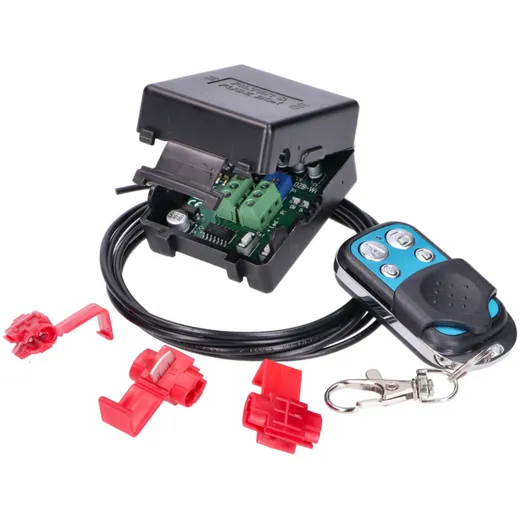

Scope of delivery:
- Speed limiter
- Operating instructions (German)
- 3x quick connector
- 1x remote control
