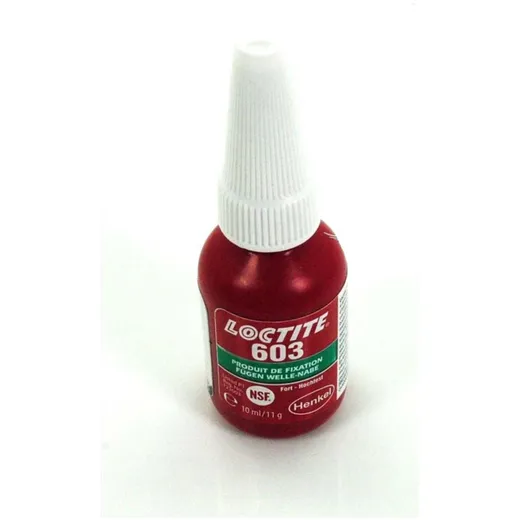

LOCTITE® joining product 603, high-strength
Special joining product with very high gap filling capacity and fast hand strength. For bonding parts that are used in gearboxes, on pulleys or similar applications
Used for bonding cylindrical parts, especially in cases where clean surfaces cannot always be guaranteed. The product cures in the absence of air between close-fitting metal surfaces and prevents self-loosening and leaks caused by impacts and vibrations. Typical applications include the fastening of roller bearings or oil-impregnated bushings in bearing housings.
As parts of motors, gearboxes, pumps and compressors, shaft-hub connections are part of our daily lives. These cylindrical connections are used to transfer torsional forces from shafts to hubs. They can also transfer axial loads, shear forces and bending moments. There are generally four different types of connection for joining shafts, pins and axles to hubs, e.g. for gearboxes, gearshifts, bushes and bearings.
Ideal for cylindrical parts with small gaps
For cylindrical joining parts that cannot be thoroughly degreased
Particularly suitable for fastening bearings
Area of application: Bonding bushings and bearings, press fits, clearance fits
Adhesive sealing gap: up to 0.07 mm
Color: green, fluorescent
Strength: high strength
Temperature range: -55°C to +150°C
Curing mechanism: anaerobic
Approvals: P1 NSF Reg. no.: 123003, WRC (BS 6920): 0412505
Contents: 10 ml
Hazard pictograms:
![GHS07]()
GHS07![GHS08]()
GHS08![GHS09]()
GHS09
Signal word: Danger
Hazard warnings:
H 315: Causes skin irritation
H 317: May cause an allergic skin reaction
H 318: Causes serious eye damage
H 335: May cause respiratory irritation
H 412: Harmful to aquatic life with long lasting effects
