Schmitt Premium cables are manufactured true to the original in Austria: Absolutely accurate fit and handmade in the highest quality. Fast machine manufacturing processes to save costs are deliberately not used here.
The inner cables are made from special cable steel (and not from the today mostly used brittle stainless steel). Therefore, the Schmitt Premium cables do not break as quickly as those from mass production.
Schmitt cables for classic vehicles are manufactured in the same design as it was standard at the time of production of the vehicles. Thus, for all fans of classic vehicles, a cable true to the original is used here. Since an inner cable manufactured in the old way tends to rust, it is lubricated with an Interflon high-performance fluid grease for life.

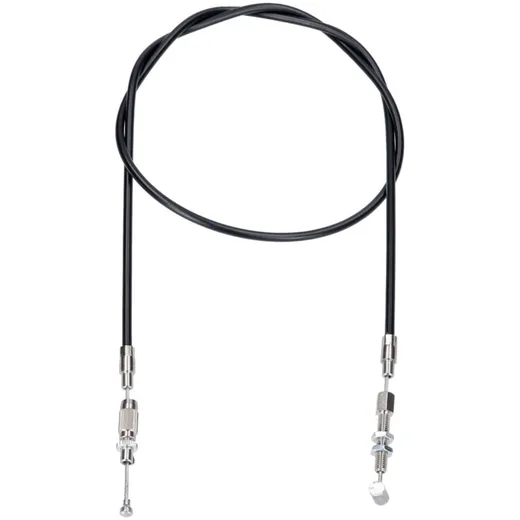

Fits Puch Rider Macho 2-speed vehicles. OEM number for comparison purposes only: 910.8.18.005.2
Dimensions:
Overall length: 112.7cm Sheath length (incl. caps): 98cm Stranded wire diameter: 2mm Sheath diameter: 5mm
End cap length: 21.5mm End cap diameter: 6-8mm

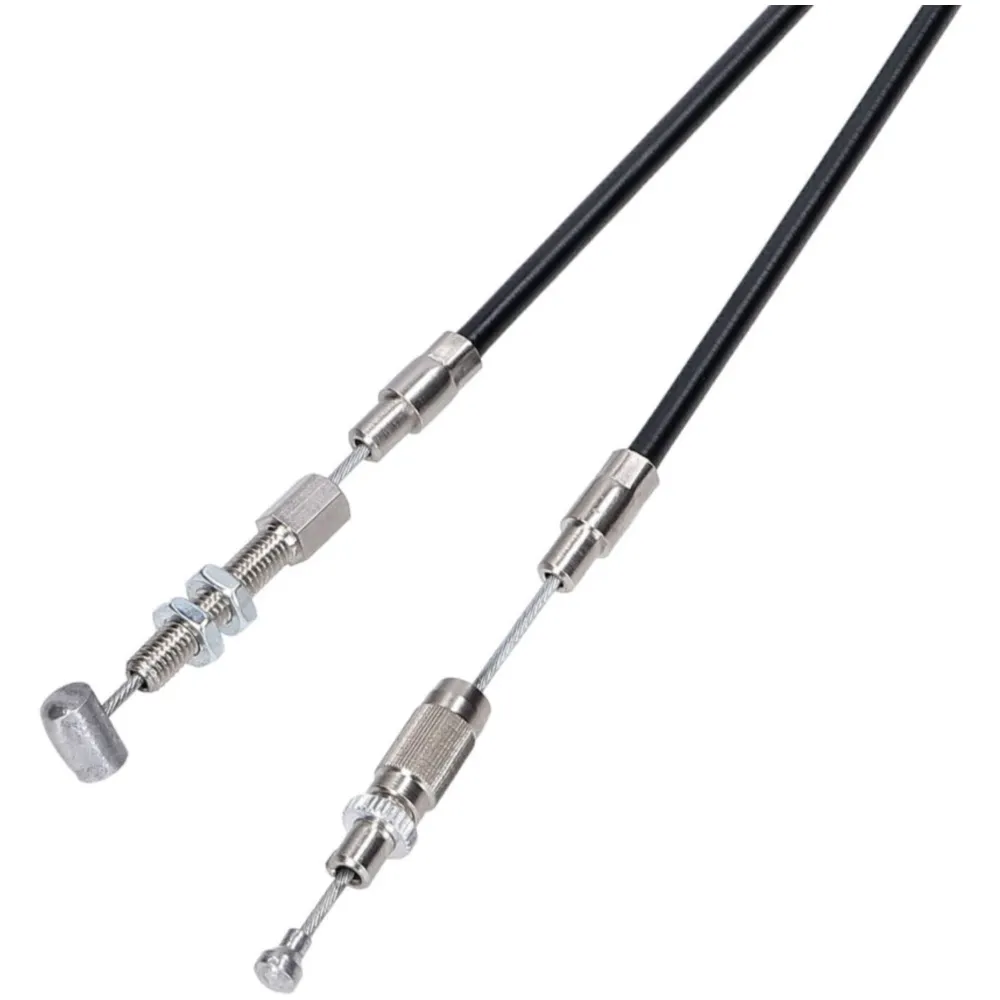

Threaded bolt length (w/ hexagonal adjusting screw): 40mm Thread length: 29mm Nut: M6
Adjustment wheel diameter: 10mm Adjusting bush length: 20mm Adjusting bush width: 9mm Thread length: 14mm Threaded bolt overall length: 22mm Thread diameter: 6mm Width incl. latch: 7mm
Step nipple diameter: 6mm head, 3.5mm stem Step nipple length: 8mm
Nipple diameter, cylindrical: 7.5mm Nipple length, cylindrical: 11mm
