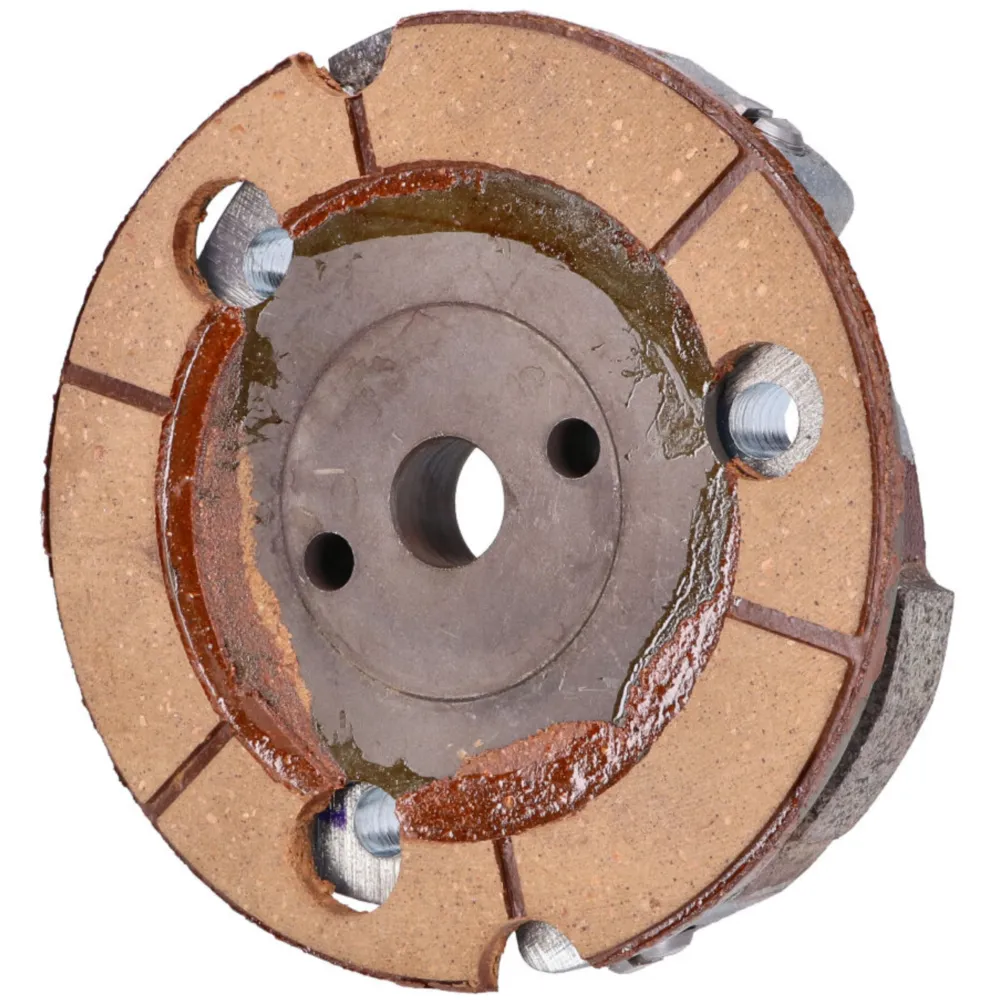

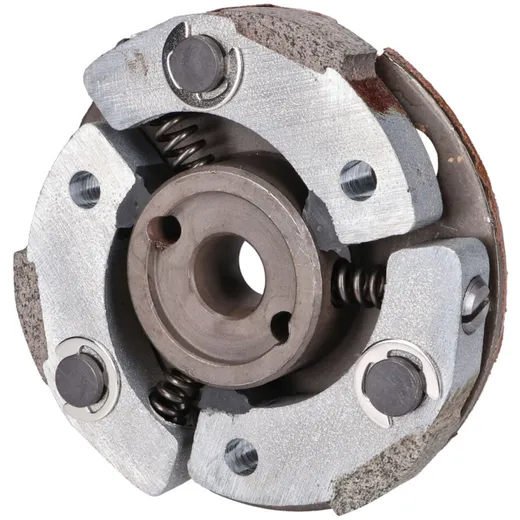

3 jaw replacement clutch with aluminum claws for Puch Maxi moped with 1-speed automatic E50 engine.
Reproduction clutch for moped with original engine power in good quality. Also replaces the 2-jaw clutch of the older models without adjustments. For tuned, performance-enhanced engines, we strongly recommend a racing clutches from our range.
OEM number for reference: 344.1.12.304.1
Assembly note:
First, set all adjustment screws flush with the clutch jaws. Then tighten each screw 2.5 turns. This achieves an almost optimal clutch engagement for a series engine. If an old crankshaft with spline and keyway is still present, the spline must be removed before installing the clutch. This was omitted from 1980 onwards anyway.
