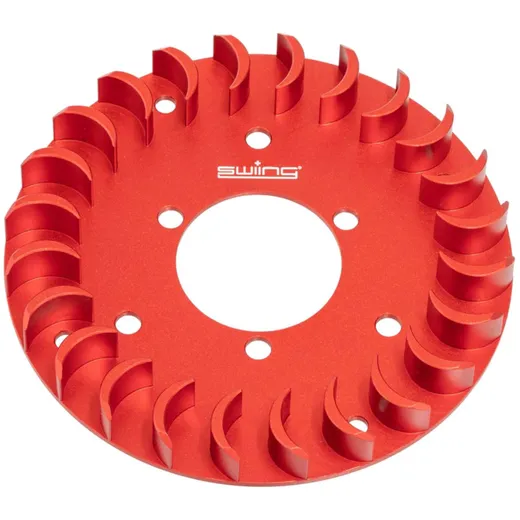

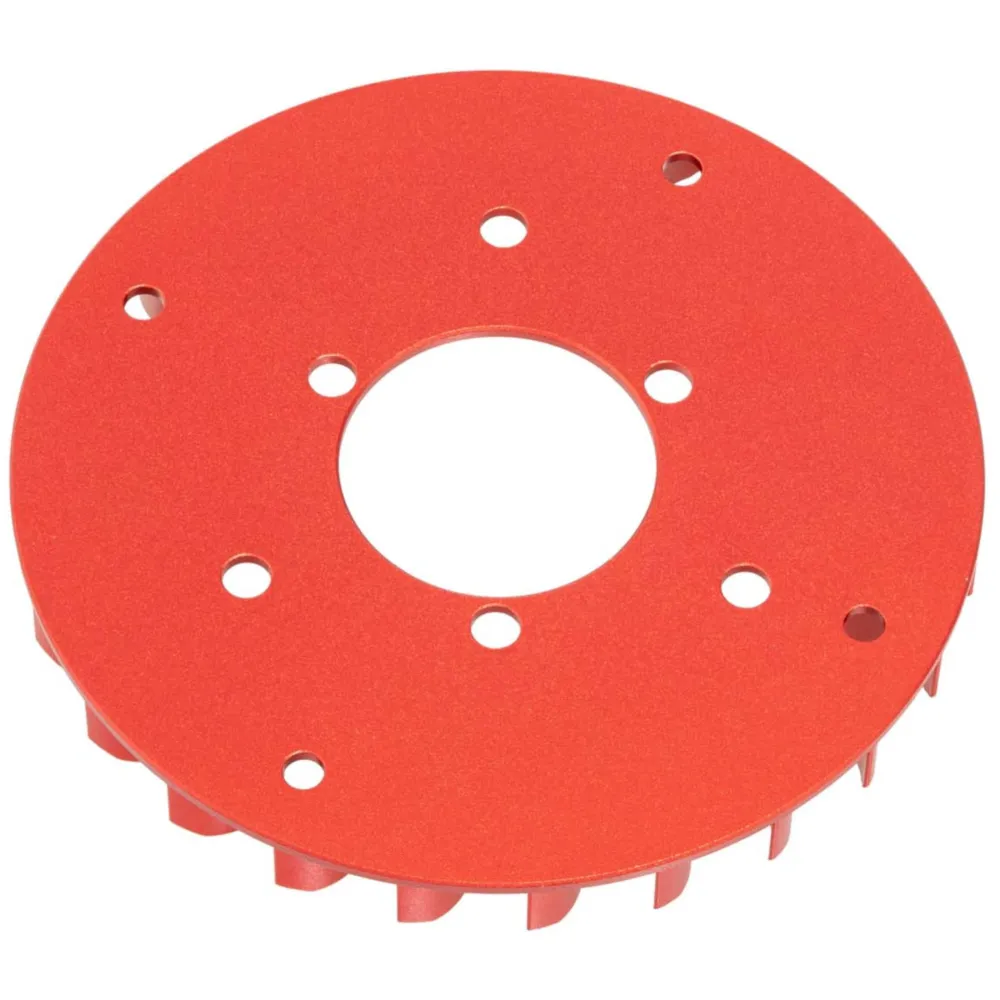

Red anodized fan wheel suitable for Sachs 503, Puch X30 Velux, as well as Zündapp Belmondo mopeds with fan cooling. Due to the different bolt circles, the fan wheel can be fitted to Bosch / Ducati, swiing ingenious EVO and HPI flywheels.
Manufactured from solid material using the CNC milling process, the fan wheel offers the highest quality and guarantees absolute accuracy of fit. Four mounting points on the outer edge of the fan wheel allow for easy installation of additional weights.
Attention: Never use screws that are too long to mount the fan wheel, otherwise the stator winding underneath may be damaged.
Technical data:
Suitable for:
Puch ZA50 (fan-cooled)
Puch Z50 (X30 Velux)
Sachs 503 - AAL, ABL, 2AL / 2BL
Pony / Cilo Beta 512
Pony / Cilo Beta 521 (engine)
Zündapp Belmondo
Manufactured from solid material using the CNC milling process, the fan wheel offers the highest quality and guarantees absolute accuracy of fit. Four mounting points on the outer edge of the fan wheel allow for easy installation of additional weights.
Attention: Never use screws that are too long to mount the fan wheel, otherwise the stator winding underneath may be damaged.
Technical data:
- Material: aluminum
- Surface: anodized
- Color: red
- Internal diameter: 39mm
- Outer diameter: 120mm
- Height: 13.5mm
- Diameter bolt circle: 48mm, 70mm, 100mm
- Diameter of mounting hole: 6mm
- Number of mounting points: 10
Suitable for:
Puch ZA50 (fan-cooled)
Puch Z50 (X30 Velux)
Sachs 503 - AAL, ABL, 2AL / 2BL
Pony / Cilo Beta 512
Pony / Cilo Beta 521 (engine)
Zündapp Belmondo
