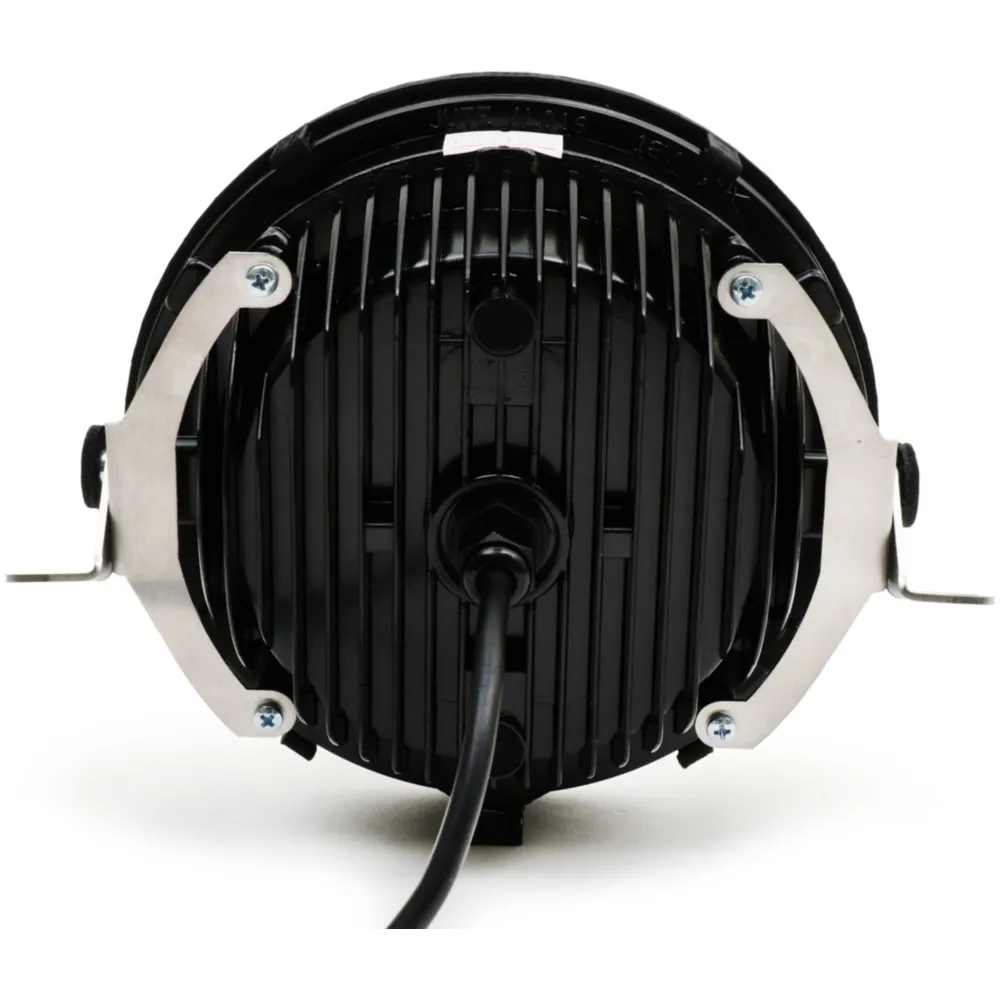

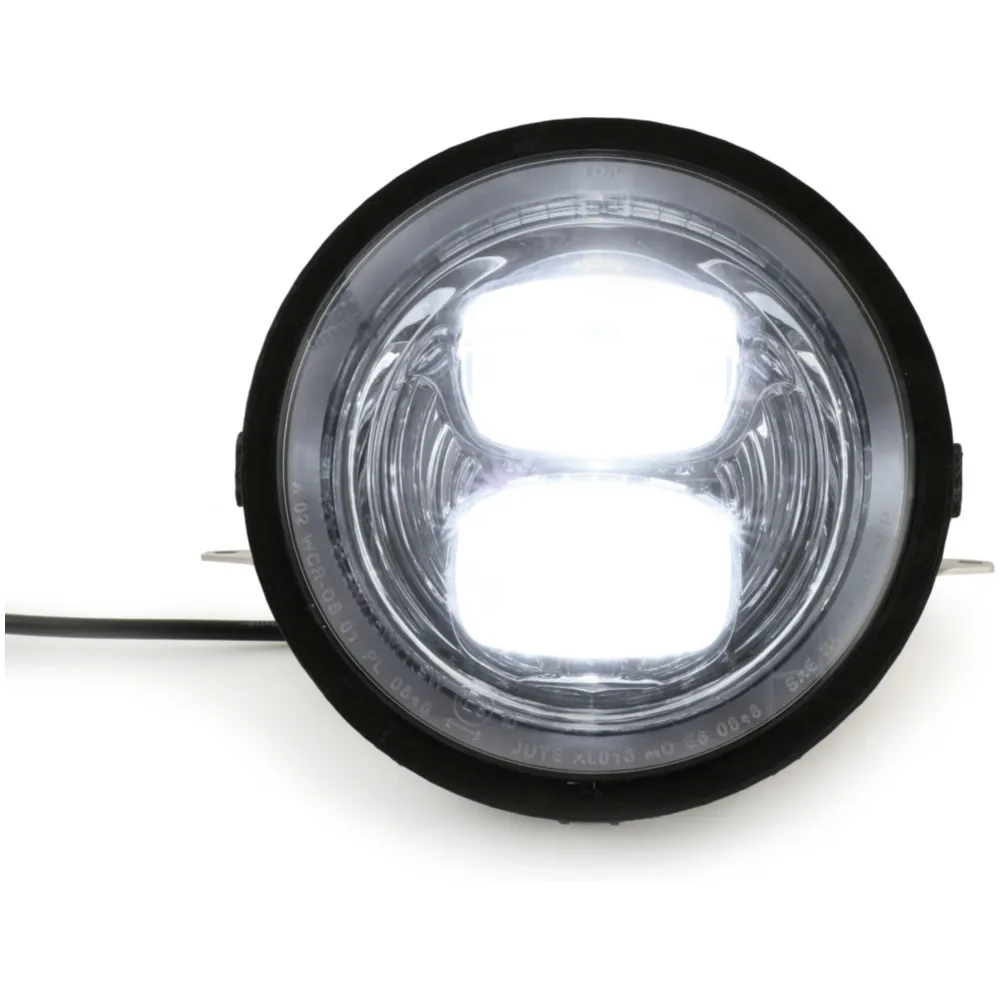

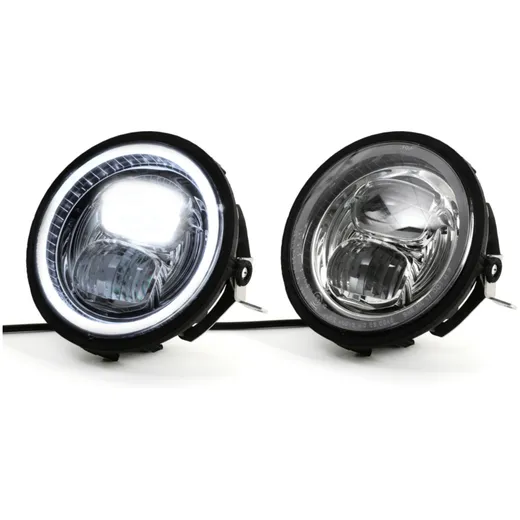

LED headlamp with E9 marking (road approval) and high-intensity main/dipped beam. Additional feature is a separately switchable position light. With a diameter of 143mm and the included mounting frame kit it fits perfectly into the steering head of the PX models.
BENEFIT LED
NOTE
The LED headlight works exclusively with direct current, it therefore requires a battery or another equivalent power source with 12V DC. Operation with an AC voltage source will result in immediate failure.
AI-translation
BENEFIT LED
The limit with conventional Bilux bulbs is a 45/45W headlight bulb on most scooters. The usually 80 W to max. 120 W power output of the ignitions does not give more. The luminosity measured in lumens is less than 400.
The LED headlight has a luminosity three times as high (1300 lumens). The power consumption is only 20 W. This corresponds to the luminous efficiency of a conventional 100 watt spotlight.
This means that a considerably better illumination can be achieved with a given generator/power supply. In addition, more capacity remains for other consumers.
- luminous power 1300 Lumen
- voltage: 12 Volt DC (direct current)
- current consumption: 1.8A/1.3A
- power consumption: 21.5W/15W/1.9W
- Diameter: Ø143mm
- Building depth body: 54mm (measured from headlight ring without glass bulge)
- Building depth overall: 79mm (measured from headlight ring without glass curvature with cable entry)
- mounting frame kit enclosed
NOTE
The LED headlight works exclusively with direct current, it therefore requires a battery or another equivalent power source with 12V DC. Operation with an AC voltage source will result in immediate failure.
AI-translation
The product has a registration number valid within the territory of the European Union.
