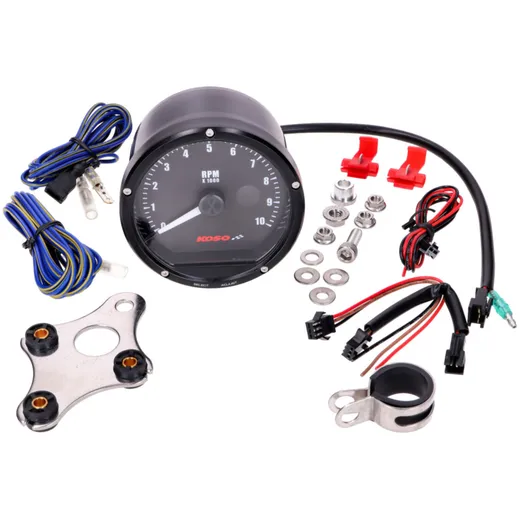

Koso analog tachometer in black. Very easy to read due to the large dial and its illumination.
The meter is ideally suited for the steering head cover of the classic Vespa PX models (until about 1984). The adjustment knobs can be easily hidden by the edge of the steering head cover. Compared to the original speedometer, the tachometer does not close so seamlessly. Nevertheless, the tachometer has the advantage that it does not have to be installed so deep into the cover, which allows it to be recessed further into the cover according to individual preferences.
Dimensions
The meter is ideally suited for the steering head cover of the classic Vespa PX models (until about 1984). The adjustment knobs can be easily hidden by the edge of the steering head cover. Compared to the original speedometer, the tachometer does not close so seamlessly. Nevertheless, the tachometer has the advantage that it does not have to be installed so deep into the cover, which allows it to be recessed further into the cover according to individual preferences.
- Tachometer: display range 0~10000 rpm .
- Response time: 0.5 seconds
- U/Min settings input signal number: 0.5 - 1~6
- U/Min pulse input HI (CDI) / Lo (contacts)
- Backlight brightness: 5 different setting options .
- Switching flash: setting range: 0~10000RPM / setting unit: 500 rpm
- Effective voltage: DC 9~12 V
- Effective temperature range: -10~ + 60°C
- Standard: JIS D 0203 S2
Dimensions
- Dimensions: 120 x 68.5 x 44.1 mm
- Weight: approx. 127.3 g
