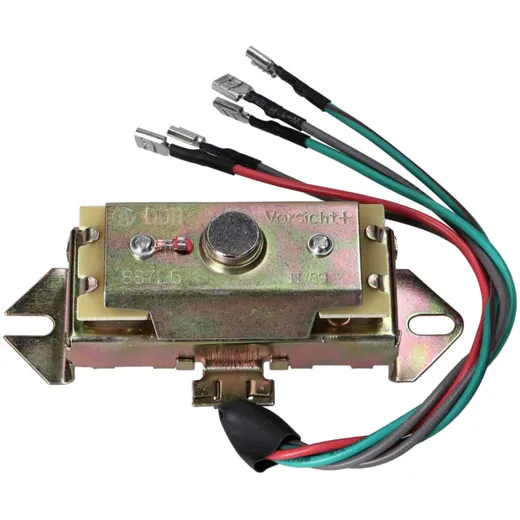

This charging device is intended for a 6V electrical system / on-board voltage and equipped with 5 cables and 2 coils suitable for Simson Moped / Mokick S50, S51, S50B2, S51B2.
Scope of delivery as illustrated on the product picture.
The cable assignment is as follows:
Scope of delivery as illustrated on the product picture.
The cable assignment is as follows:
- Red = Red
- Green = will not be connected (economy mode)
- Green White = Green, thin Red
- 2x Blue = 2x Grey, thin Black
