Regulated DC output for the horn (12V DC)
12V USB charging output with up to 3A charging power
12V flasher relay for LED flashers
Internal temporary safety shutdown, if more than 2A are requested at one output
Each rectifier is tested individually and is supplied with a test protocol
exclusively for 12Volt alternating current (AC) on-board voltage
Designed and MADE in Germany

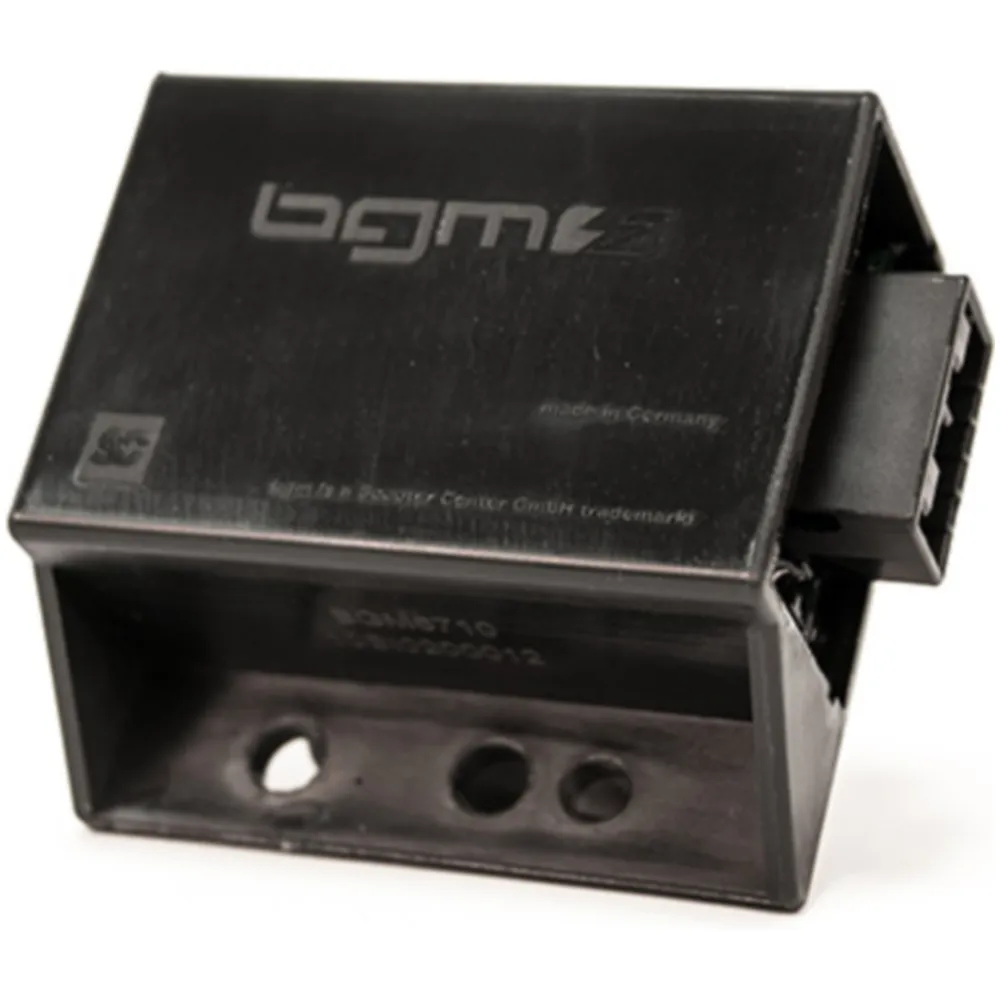

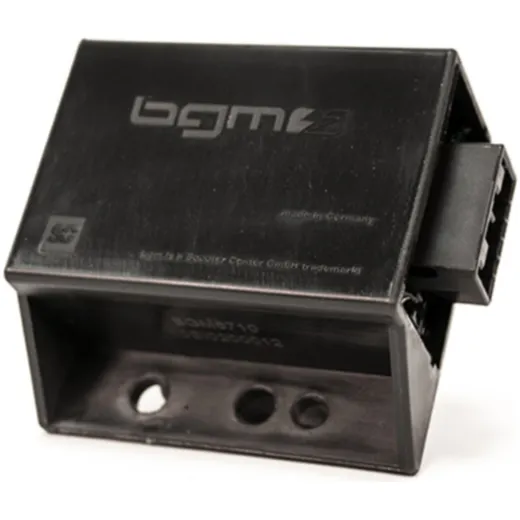

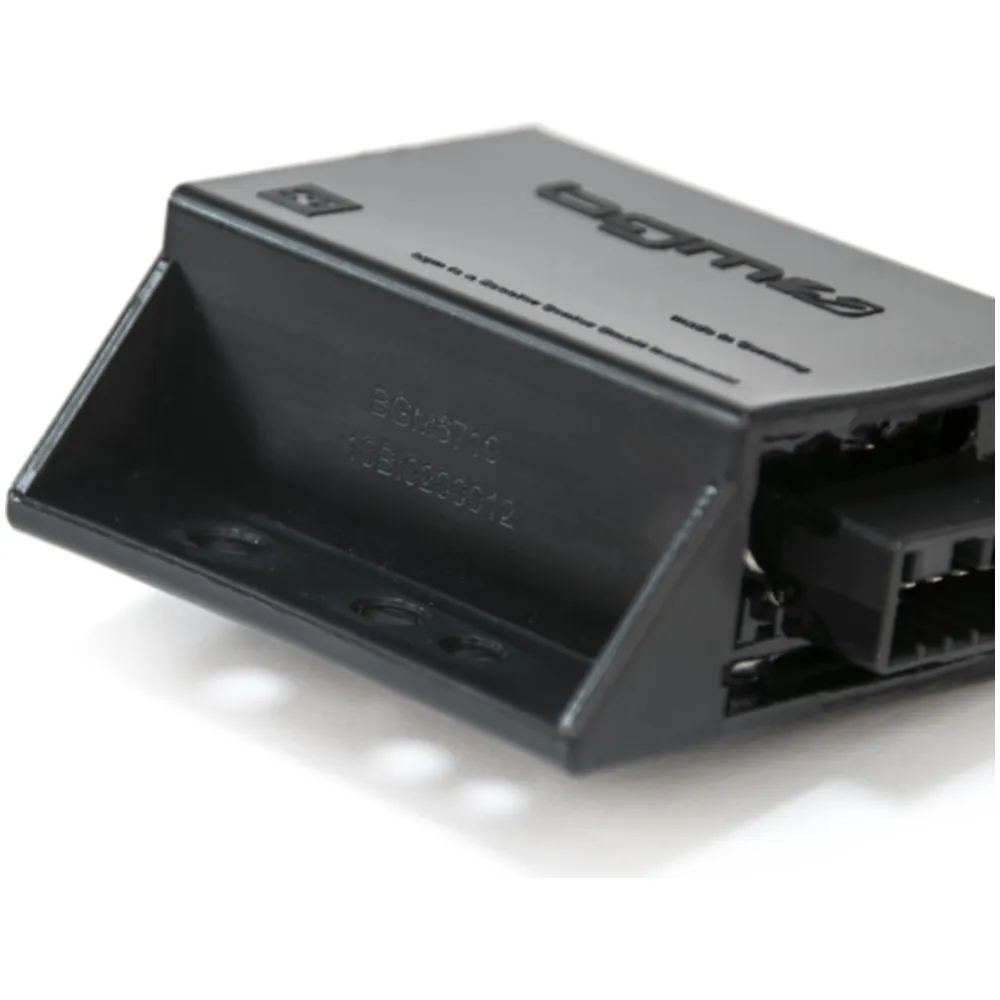

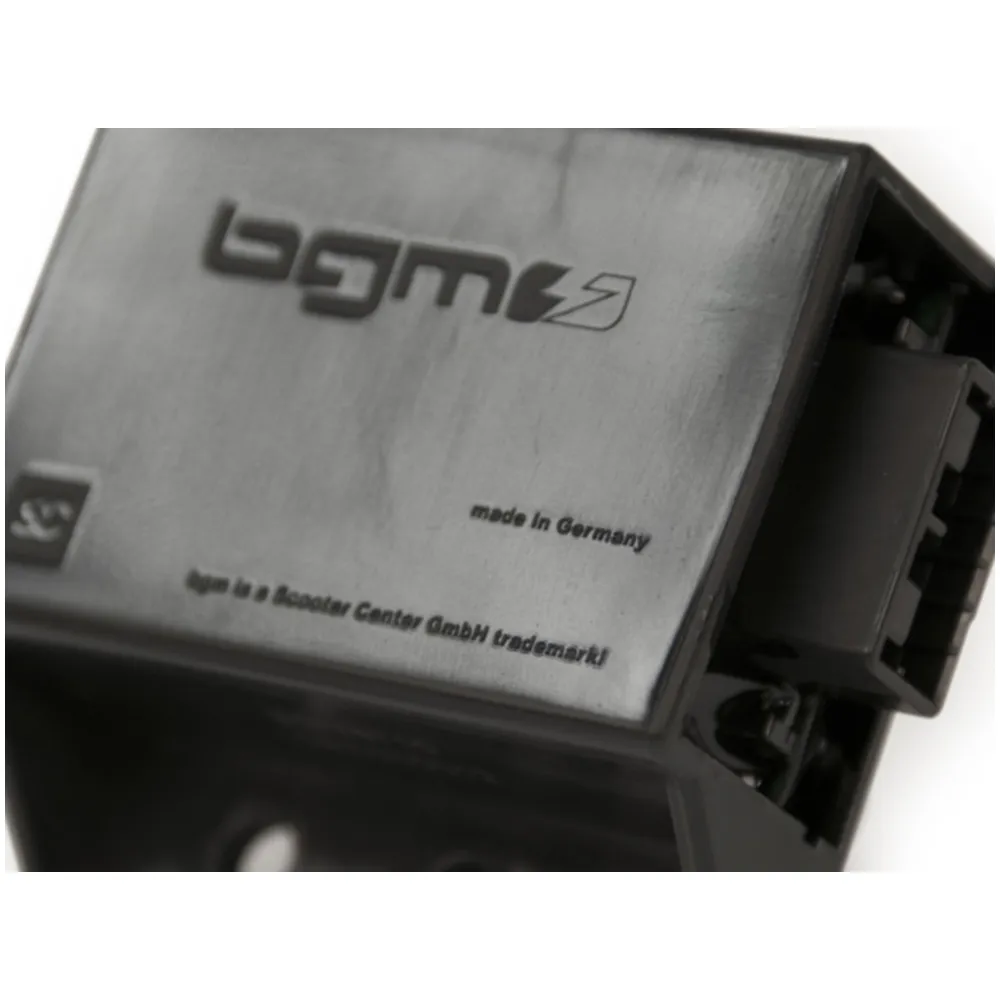

In addition to its function as a spare part, the BGM Pro horn rectifier allows you to use a horn instead of a (no longer admissible ratchet = alternating current horn) on your oldie.
While driving it offers the possibility to charge your navigation system or mobile phone very effectively. LED flashers can be connected directly to the rectifier, a conventional flasher relay is no longer needed. Therefore it is a perfect addition to the bgm PRO conversion wiring harness (for conversion to 12V and electronic ignition for Vespa V50, PV, Sprint, Rally, VBB, etc.)
Available in three versions:
BGM6710KT1 - with adapter cable set for free integration into an existing wiring harness incl. waterproof connection plug set
-
BGM6710KT2 - with connection plug for individual cabling with direct connection to the rectifier
BGM6710 - with adapter cable set for free integration into an existing cable harness Version without connector plug (as replacement for BGM6710KT1/KT2 or if a connector is already available))
You will find a detailed technical description under the tab "Downloads".
AI-translation
