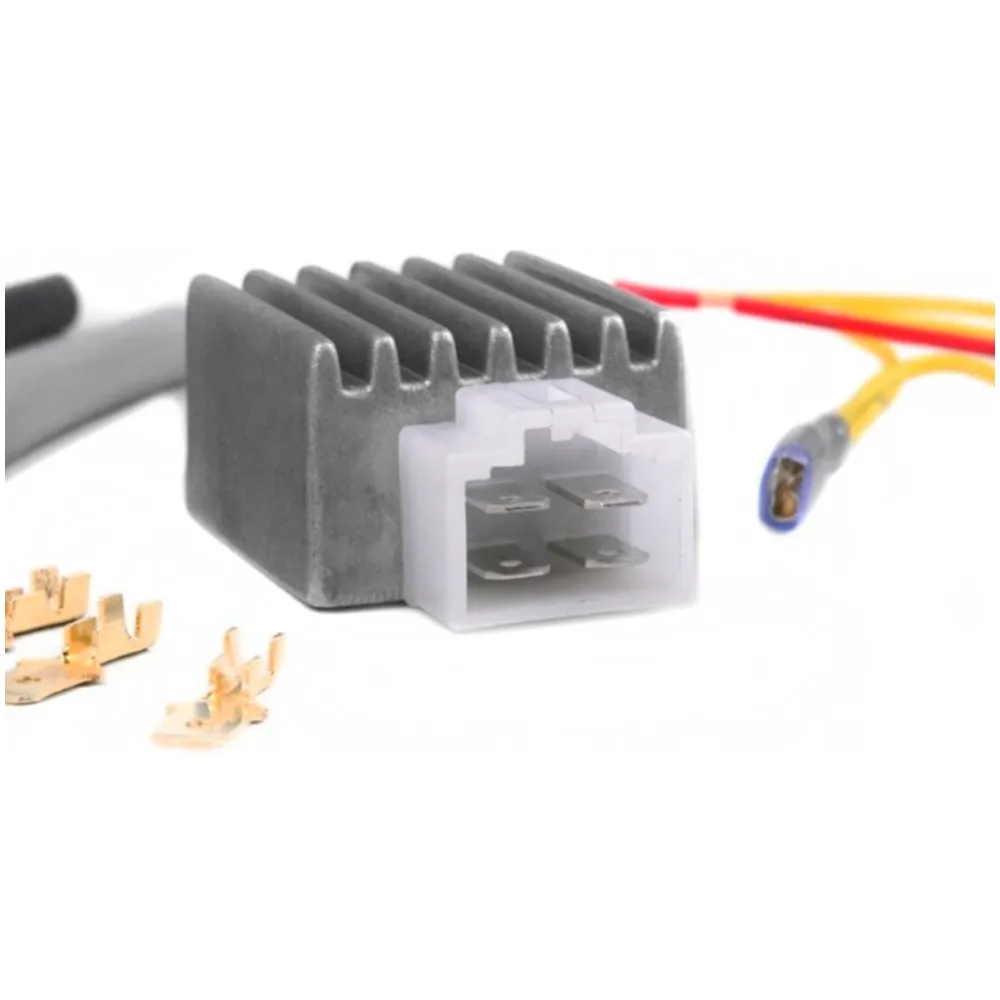

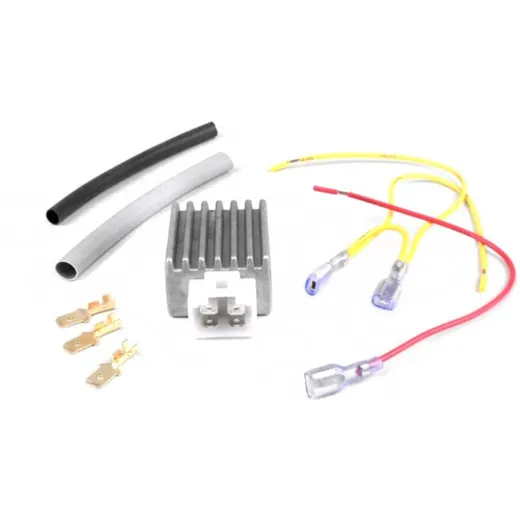

Compact voltage regulator for all 12V alternators. The regulator supplies alternating current and optionally also direct current. This not only makes it the perfect and reliable replacement for all conventional voltage regulators, it also enables a modern expansion of the existing vehicle electrical system.

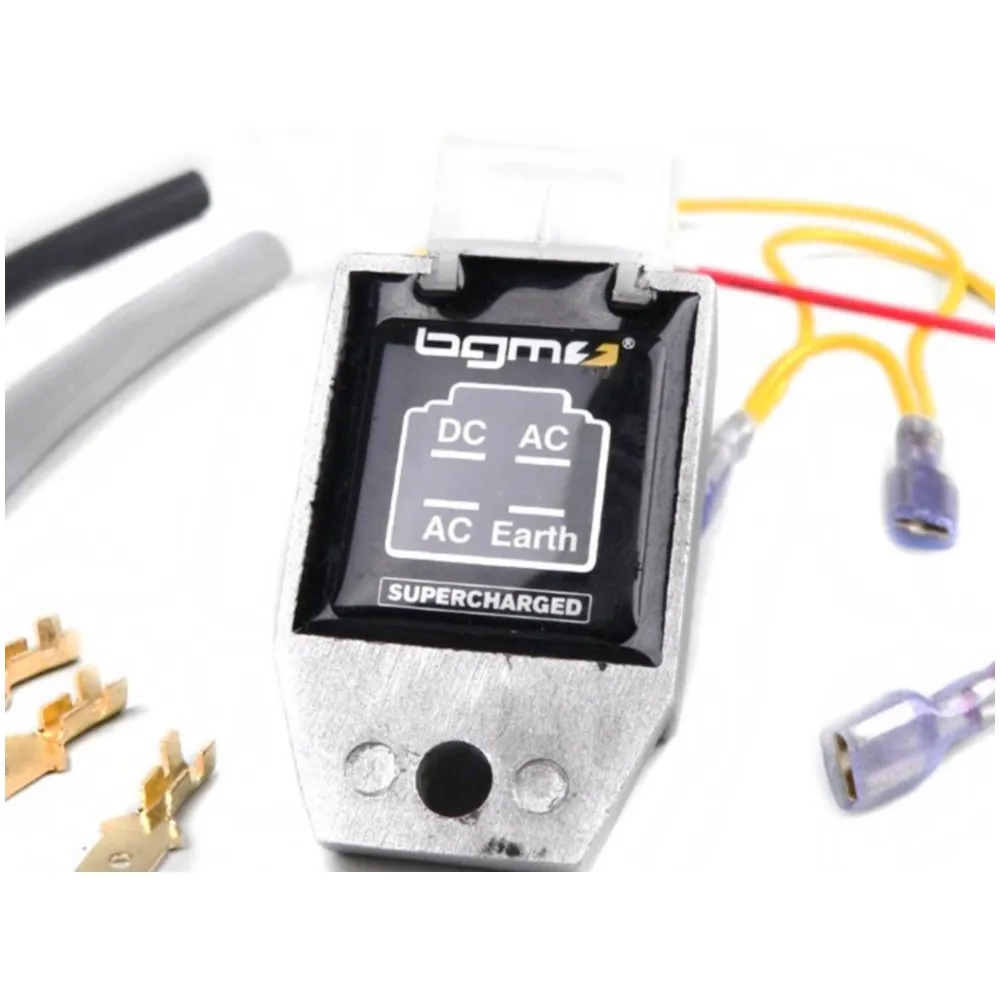

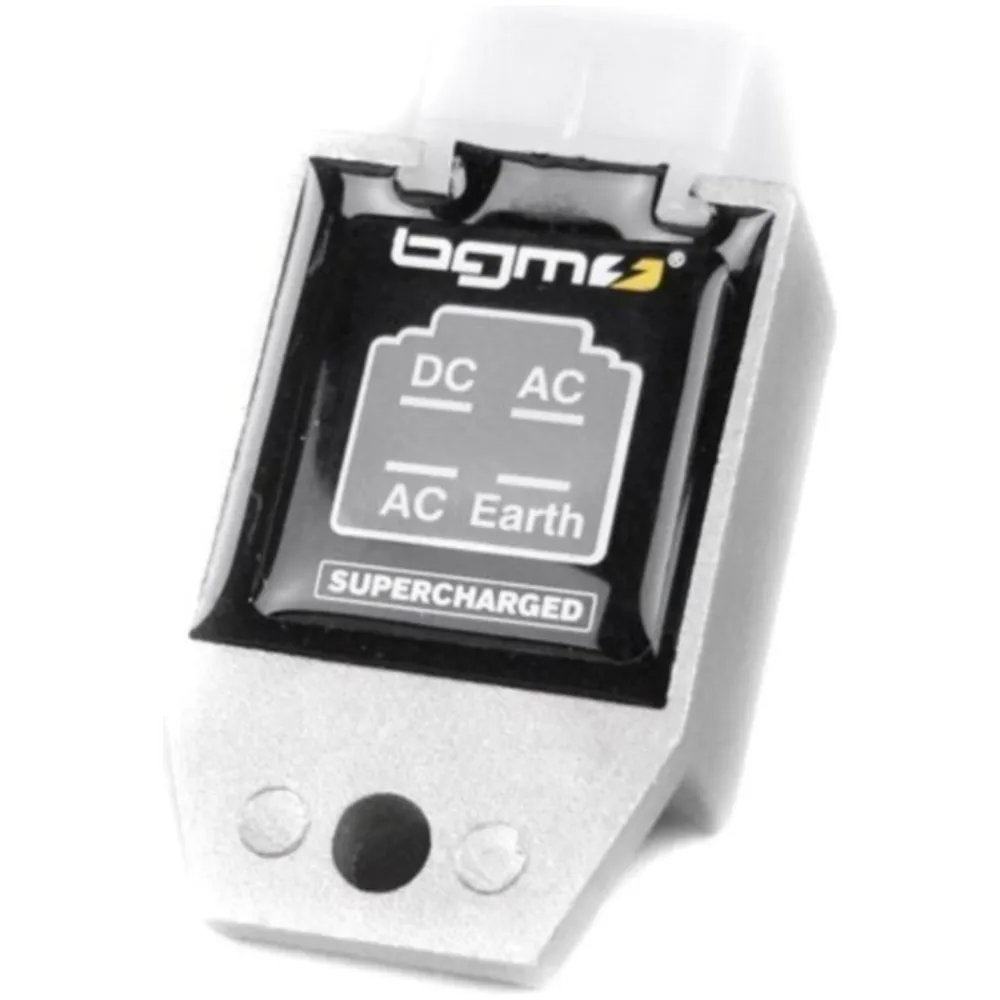

AC - AC alternating current: Input and output for the unregulated alternating current of the ignition base plate and the regulated current for the wiring harness.
- SENSE: The AC input and output must be bridged. The output voltage is compared with a reference via the sense line (bridge). This ensures that the voltage remains constant even when the load fluctuates.
- DC direct current: Output with direct current for charging the battery. With a correspondingly powerful ignition system, consumers can also be connected directly. For example: Satnav systems, water pumps, rev counters, speedometers and all other imaginable toys.
- Earth - Ground: Ground connection to the frame, can simply be taken over from the old regulator. Otherwise, connect the ground output to the frame and preferably to the controller housing.
Connecting to the existing wiring harness is very simple. For complete AC systems, simply connect the regulated AC current to the cables for the electrical consumers. For systems that are operated with AC and DC, you only need to differentiate between AC and DC and wire accordingly.
