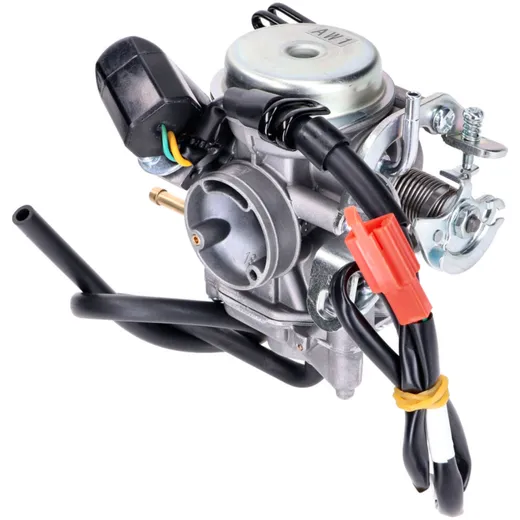

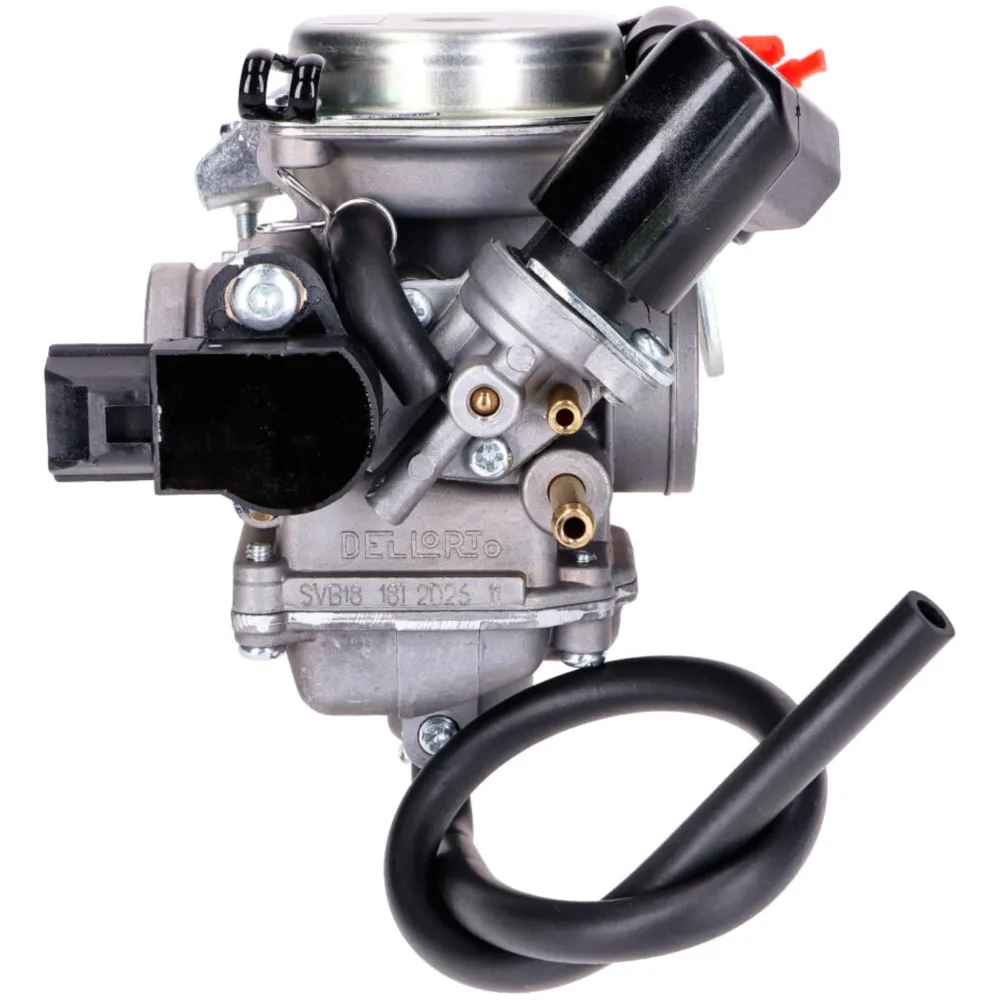

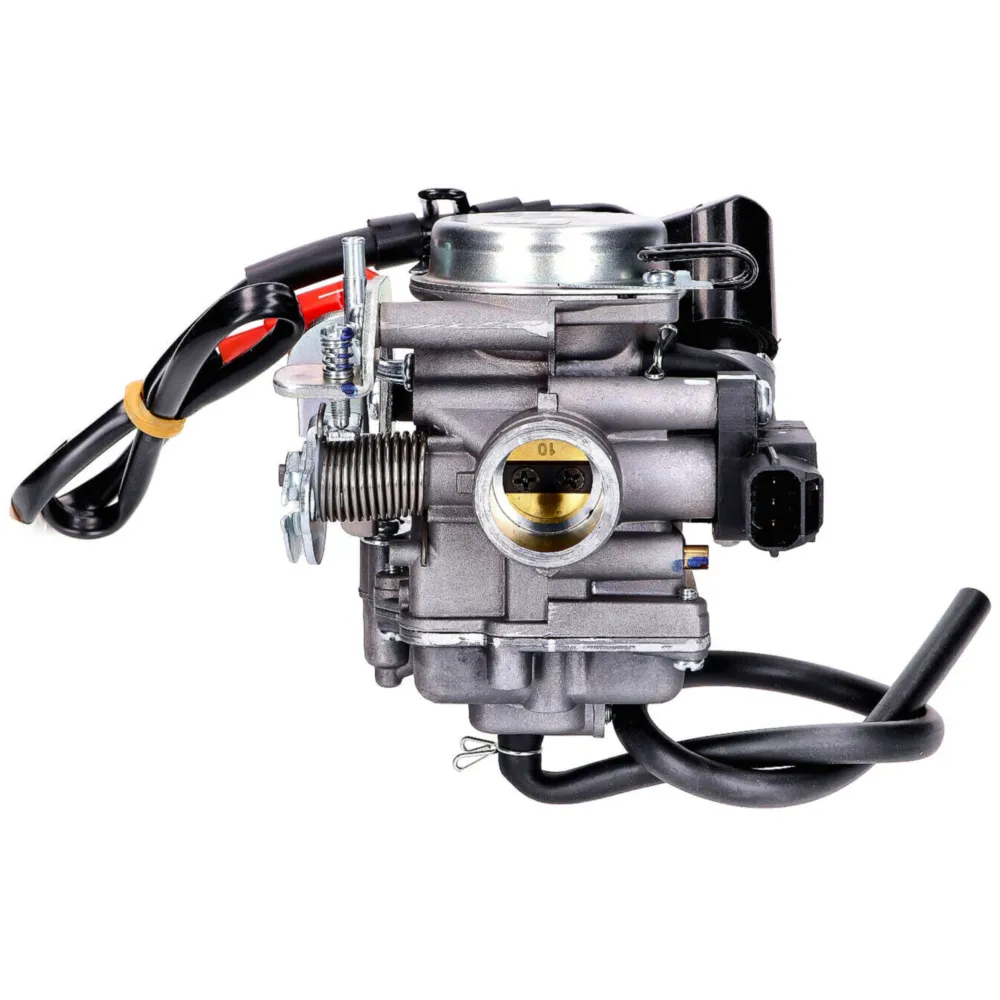

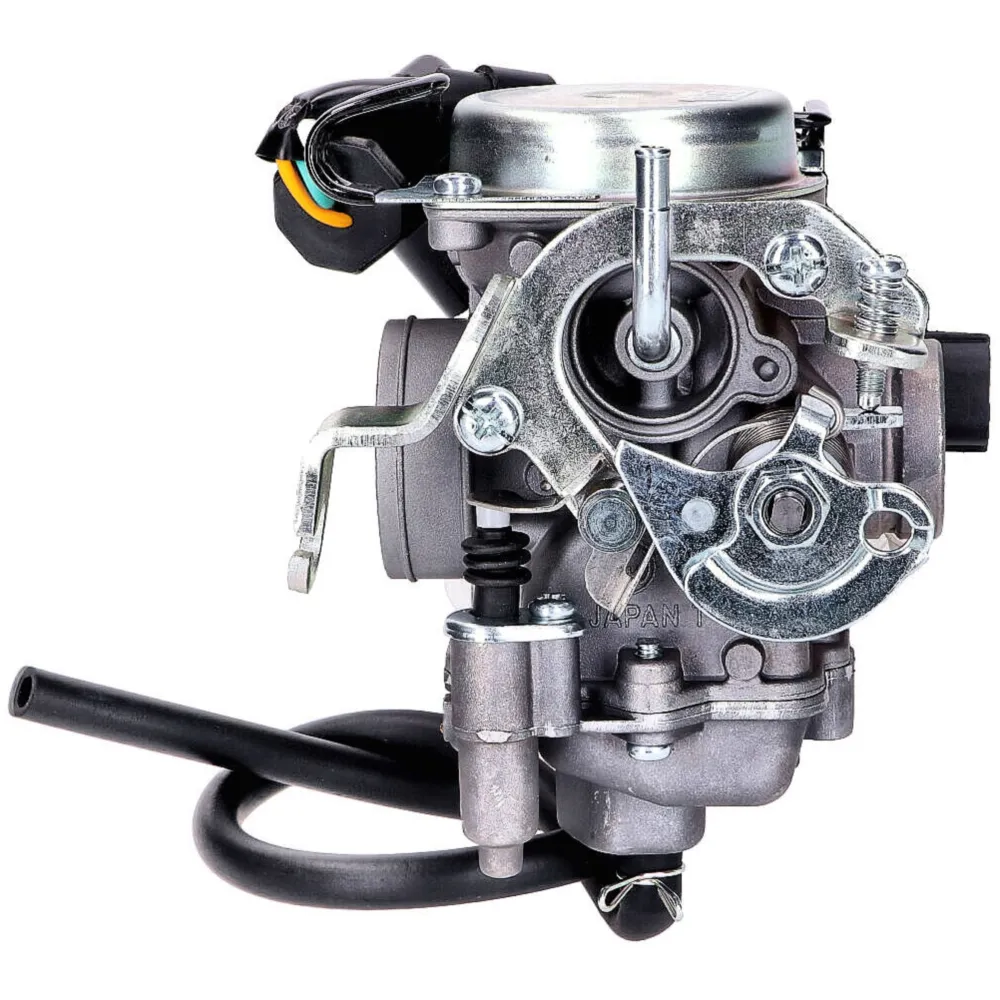

carburetor Dellorto 18mm TK SVB18 AW1 for SYM Fiddle 2, Fiddle 3, Crox, Jet 4, Orbit 2, 12" 4-stroke 50cc Euro4 25km/h, 45km/h 1

Complete replacement carburettor including electric cold start device (choke) and throttle position sensor suitable for 4-stroke Euro 4 scooters. This carburettor type is factory fitted as standard on 50cc 4-stroke SYM 12" 25km/h and 45km/h vehicles built from 2018 up to 2020 and on many newer China scooters.

The carburettor comes completely ready to install (tuned for 50cc Euro 4 scooters).

Main jet: 90 (M7)

Idle jet: 33

Intake manifold connection width: 28mm

Air filter connection width: 38mm

This carburettor is also suitable for:

• Sym Allo 25km/h AIR 4T E4 2018-2020
• Sym Allo 50 AIR 4T E4 2018-2020
• Sym Crox 25km/h AIR 4T E4 2018-2020
• Sym Crox 50 AIR 4T E4 2018-2020
• Sym Fiddle II 25km/h AIR 4T E4 2018-2020
• Sym Fiddle II 50 AIR 4T E4 2018-2020
• Sym Orbit II 25km/h AIR 4T E4 2018-2020
• Sym Orbit II 50 AIR 4T E4 2018-2020
• Sym X'Pro 25km/h AIR 4T E4 2018-2020
• Sym X'Pro 50 AIR 4T E4 2018-2020

OEM number for purpose of comparison only: SYM 16100-AW1-000, Dellorto 08082
