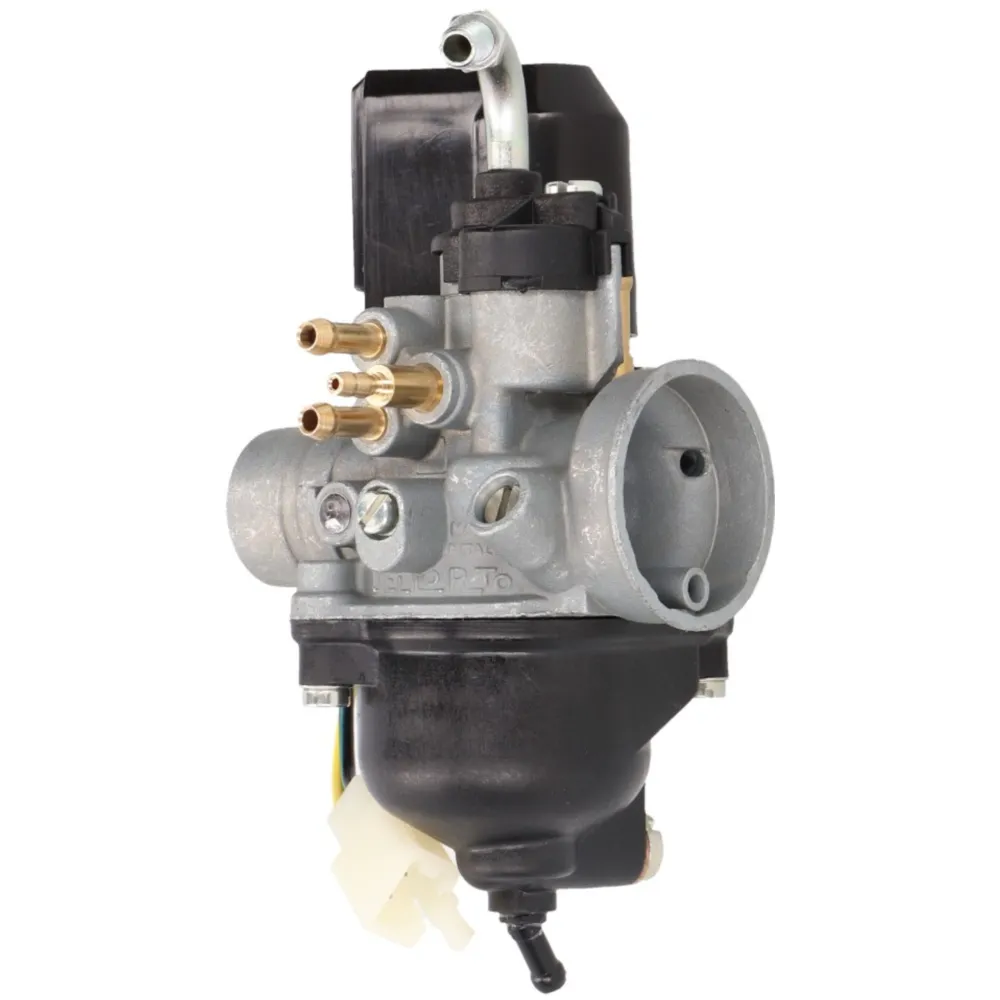

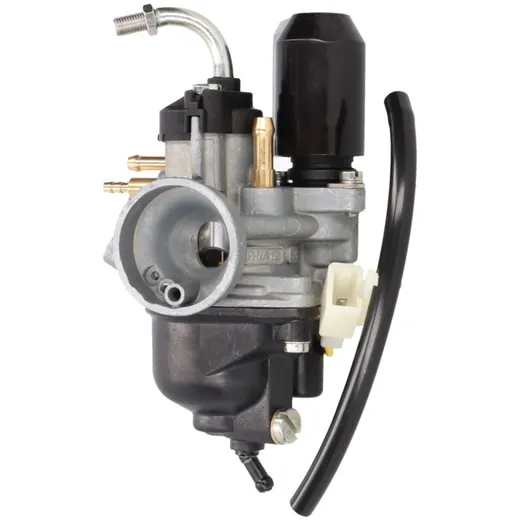

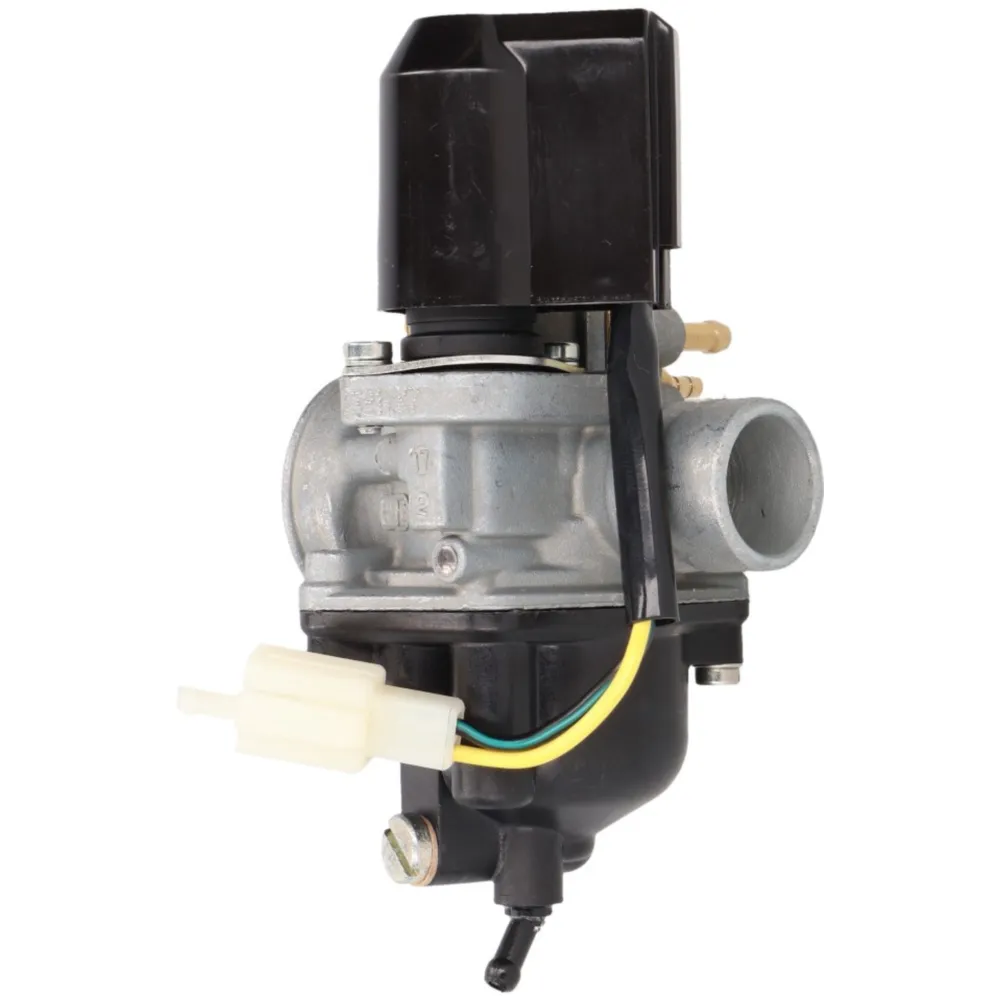

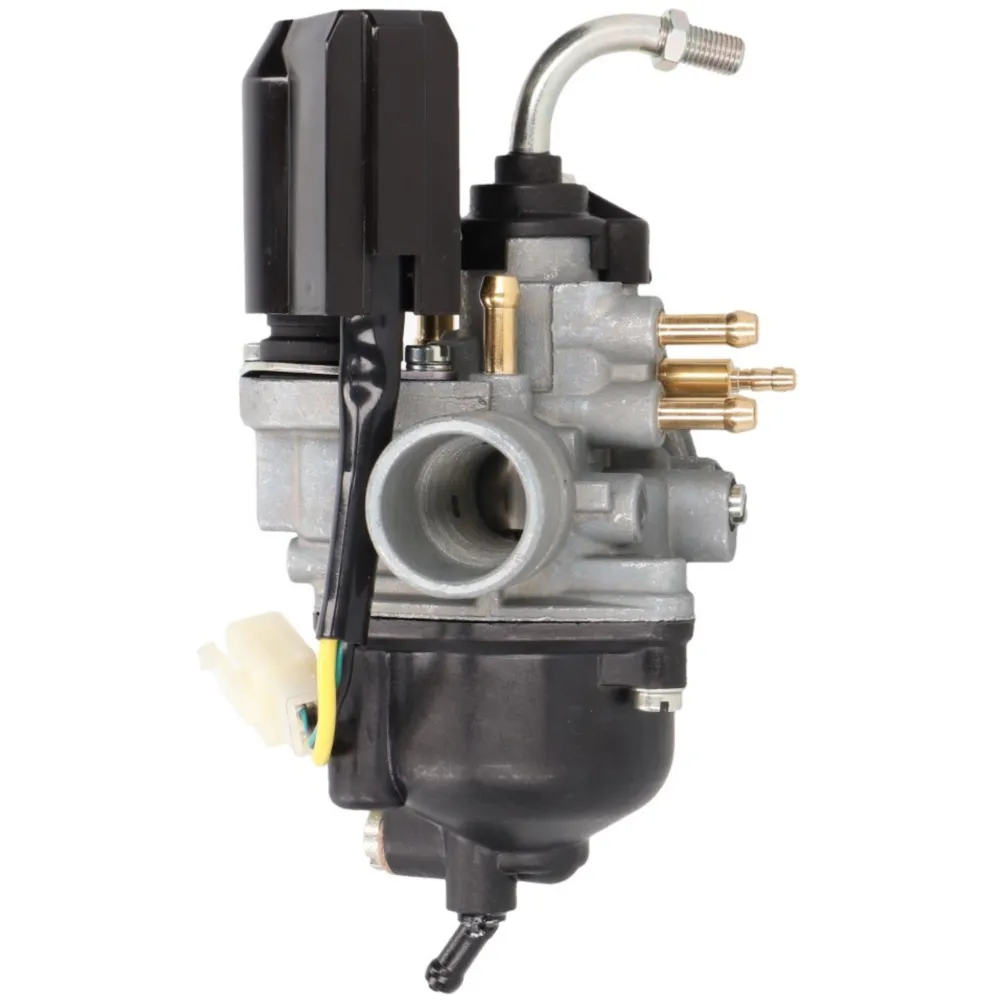

carburetor Dellorto PHVA 12 PS w/ e-choke for Minarelli AC, LC 38626

Dellorto PHVA 12mm with electric choke as a replacement part for a defective carburettor. The PHVA 12PS shares the carb set up with the other listed vehicles. Some variation in the jets may occur as some scooters were kitted with a catalytic convertor. For this reason, at least the main jet should be matched with the main jet in the factory carburettor. Fits the original air box and intake manifold. Perfect replacement for those who need to replace the faulty OEM carburettor with a new replacement part. Choke: E-Choke (included) vacuum connection Oil connection carburettor: cooling water (connections are not used in AC models) connection engine: 24mm connection Air filter side: 35mm Jet: 211 GA main jet: M6 # 074 Pilot jet: M4 # 038 choke jet: M5 # 048 float: 13700.1 carburettor slider 40 (metal version) needle choice: A20
