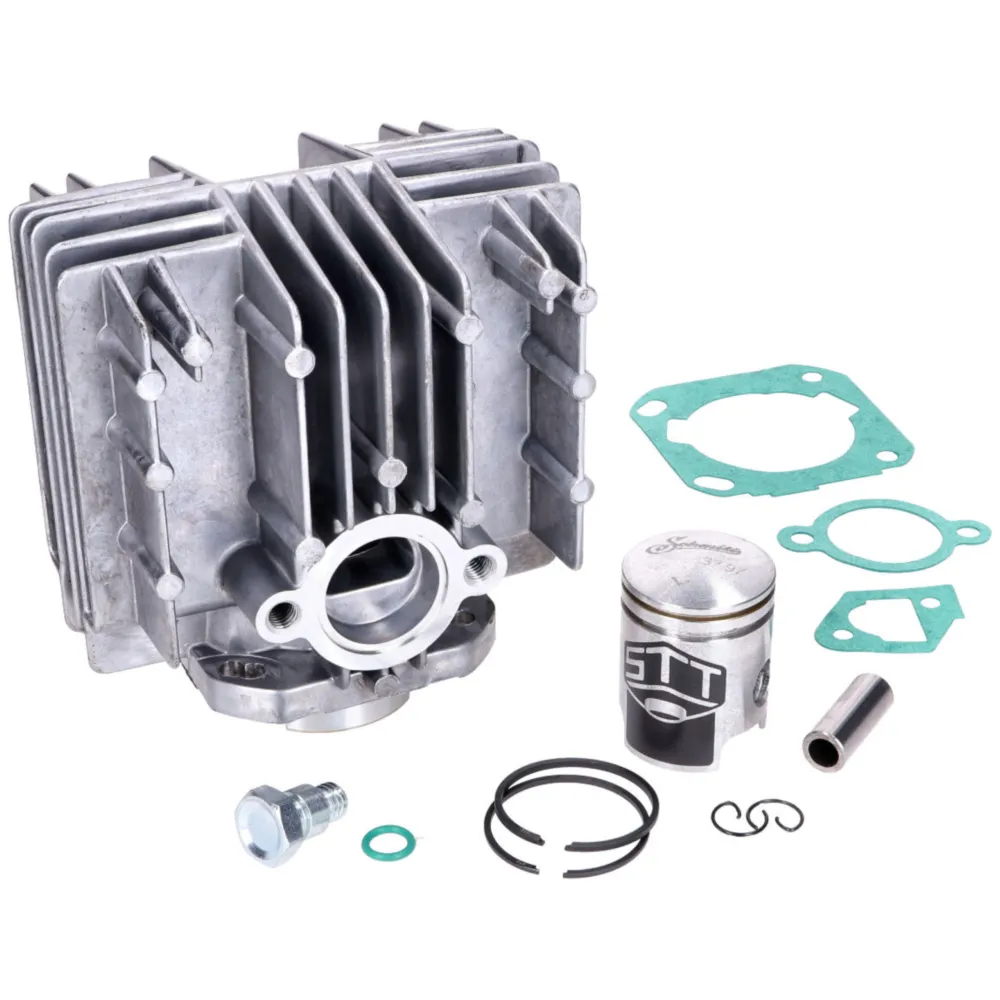

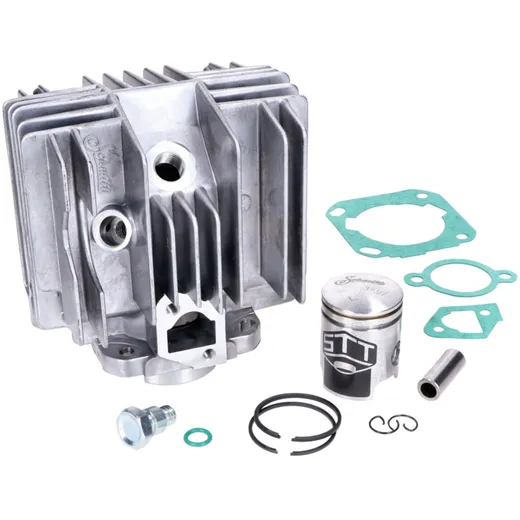

Cylinder kit Schmitt 38mm, 50cc version Mokick with 44mm stroke, suitable for Mokick and mopeds with Sachs 504, 505 engine such as Hercules Prima, M, Sachs 504/505, KTM Pony, Hobby.
OEM no. for comparison purposes: 0213 146 376
Cylinder designed from scratch in original look. Not a copy of the copy. Schmitt has clearly defined the focus here: familiar quality, modern production and the old look.

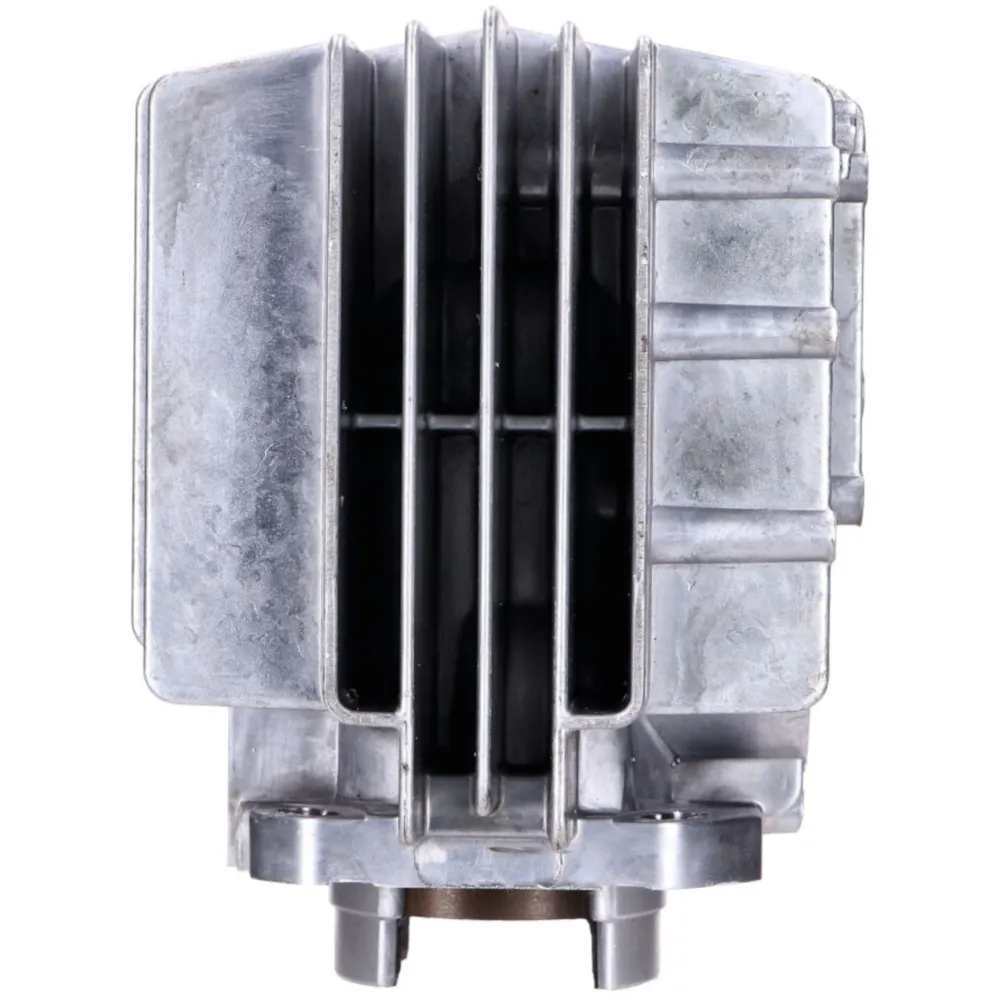

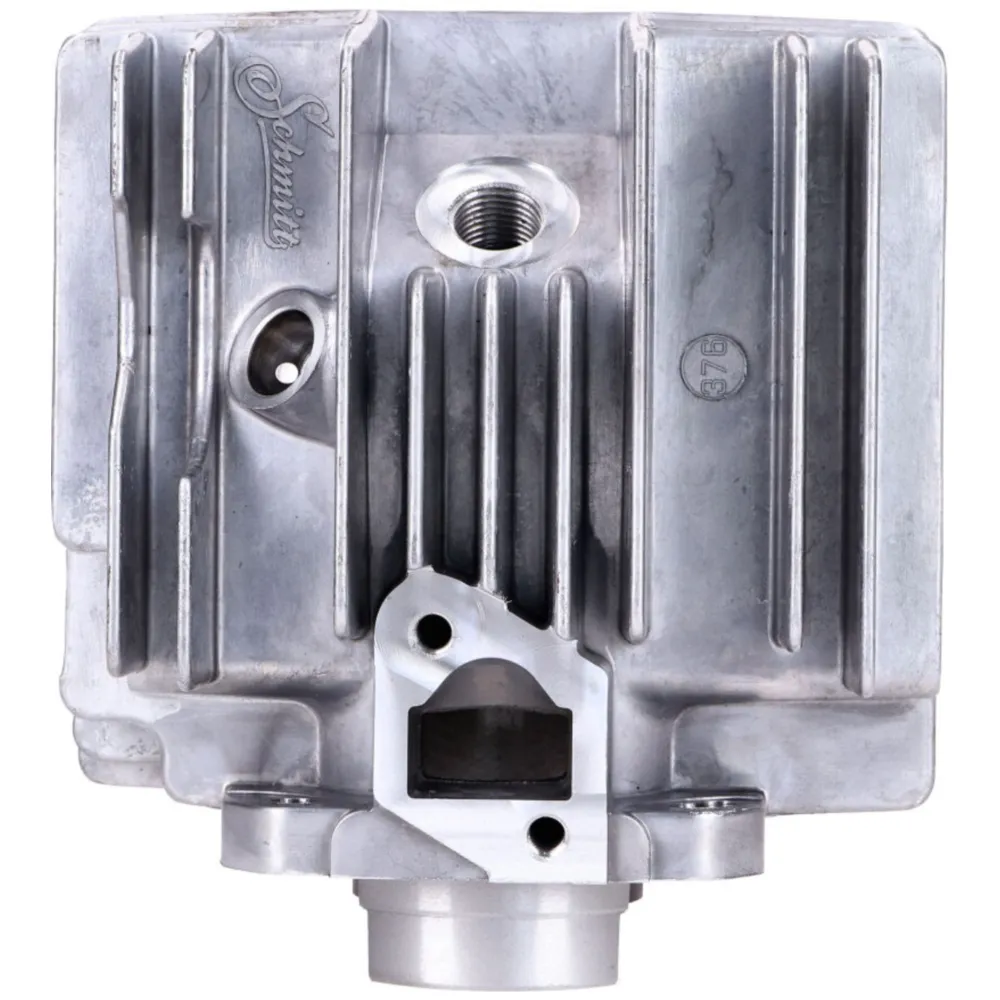

100% true-to-original timing as well as channel and combustion chamber geometry. The engine performance corresponds to the original part. The cylinder is manufactured using the die-casting process and therefore has a great surface finish. Thanks to the precisely manufactured 3 mm gray cast iron liner, the cylinder is durable, can be overhauled several times and has a very long product life. Original splash-proof deco connection with O-ring seal.
The piston is manufactured with the original profile contour from an aluminum alloy with 18% silicon content. The maximum mileage and very good emergency running properties are enhanced by two piston rings with different thicknesses, just like the original. During the running-in phase, the printed molybdenum disulphide coating additionally supports and protects the sliding properties of the new piston.
Scope of delivery:
OEM no. for comparison purposes: 0213 146 376
Cylinder designed from scratch in original look. Not a copy of the copy. Schmitt has clearly defined the focus here: familiar quality, modern production and the old look.
100% true-to-original timing as well as channel and combustion chamber geometry. The engine performance corresponds to the original part. The cylinder is manufactured using the die-casting process and therefore has a great surface finish. Thanks to the precisely manufactured 3 mm gray cast iron liner, the cylinder is durable, can be overhauled several times and has a very long product life. Original splash-proof deco connection with O-ring seal.
The piston is manufactured with the original profile contour from an aluminum alloy with 18% silicon content. The maximum mileage and very good emergency running properties are enhanced by two piston rings with different thicknesses, just like the original. During the running-in phase, the printed molybdenum disulphide coating additionally supports and protects the sliding properties of the new piston.
Scope of delivery:
- Cylinder with d=38mm
- Piston
- Piston rings
- Piston pin with clips
- Foot gasket
- Blind screw for decompression
