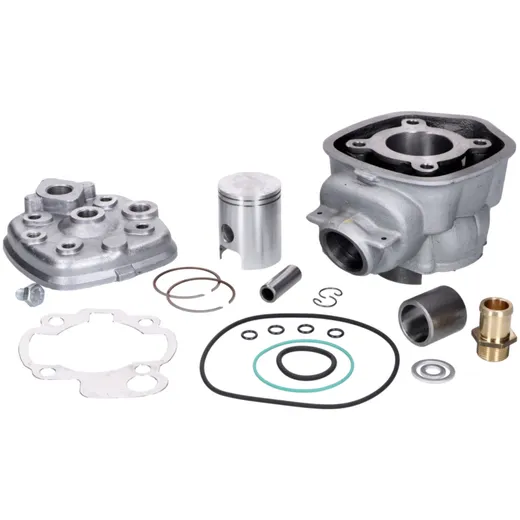

50cc cast iron cylinder kit from Metrakit with 40.3mm bore and 2 piston rings suitable for water-cooled Minarelli AM6 engines. The kit is supplied including cylinder head and gaskets.
Dimensions:
Displacement: 50ccm
Bore: 40.30mm
Piston diameter: 39.90mm
Piston pin: 12mm
Piston rings: 2
Excess flow channels: 5
Connecting rod length: 85mm (original)
The cylinder retains the original displacement of 50cc and offers a significant improvement in acceleration and a slight increase in top speed thanks to its 5 transfer ports.

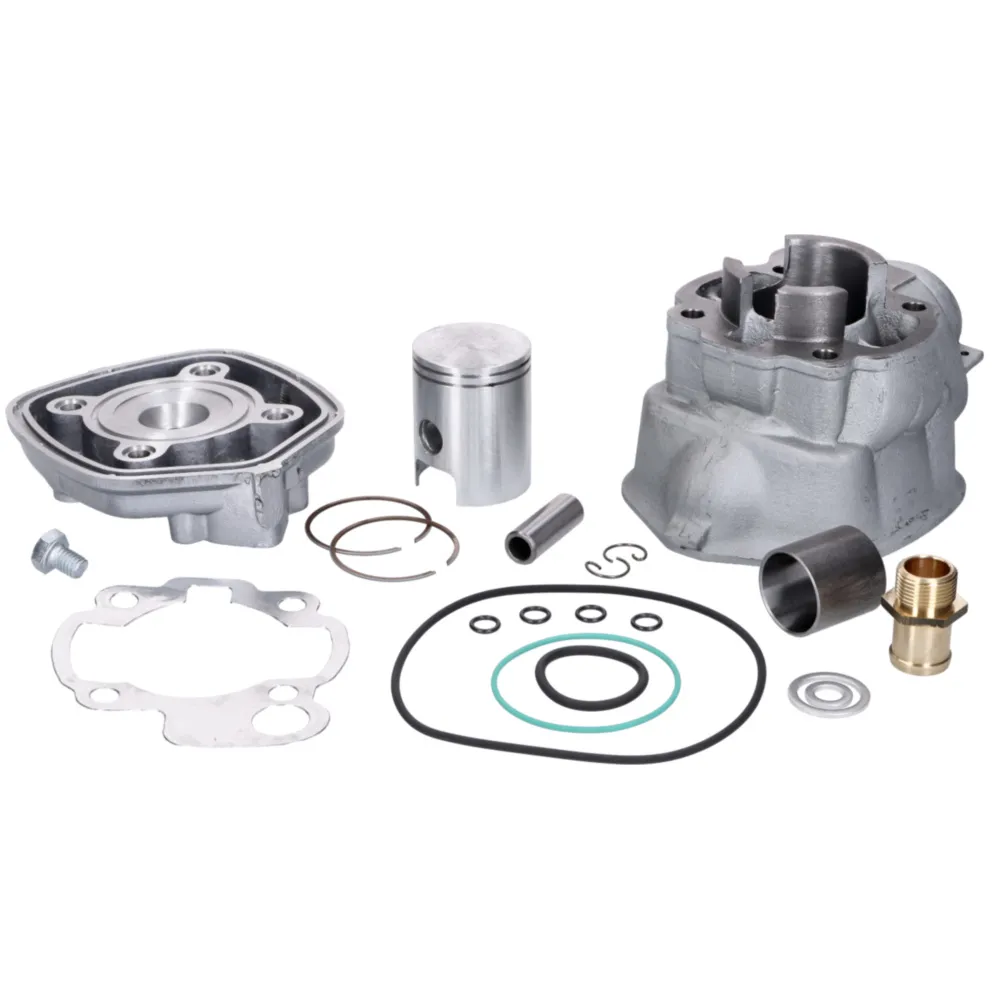

Scope of delivery:

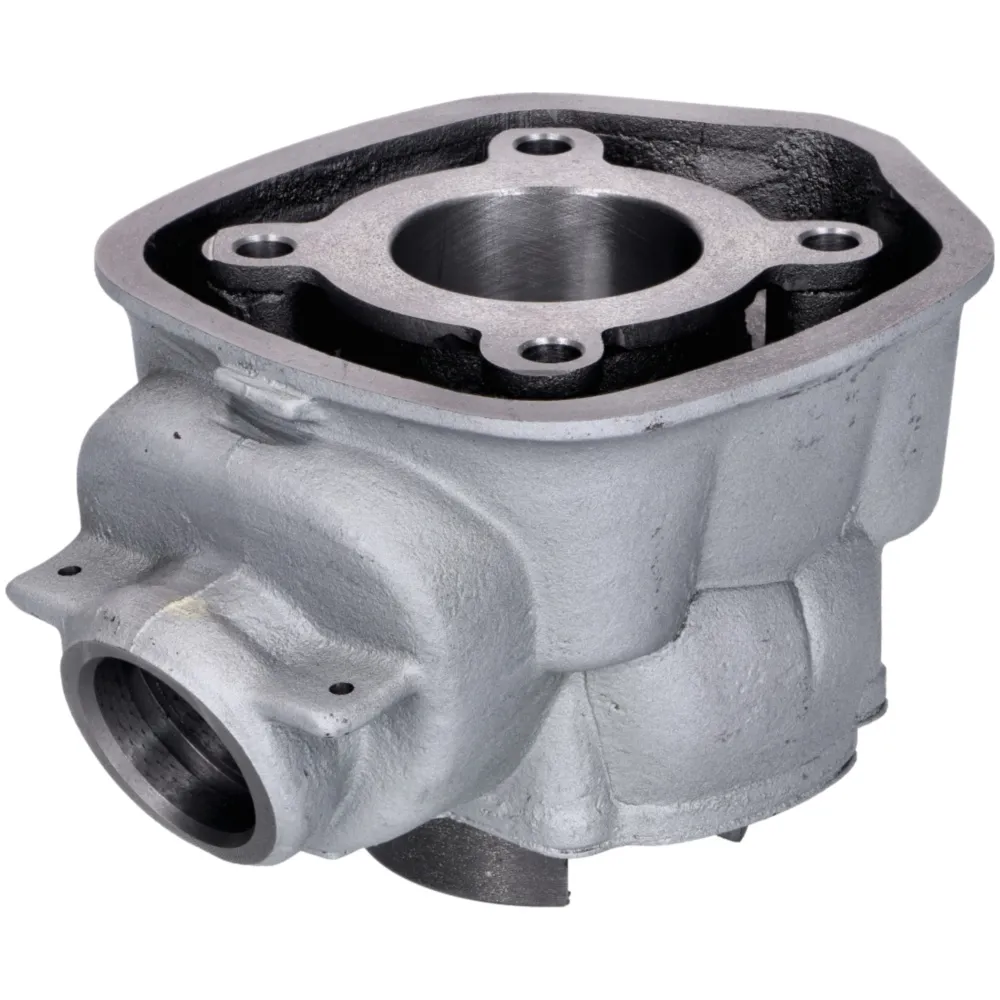

Cylinder
Cylinder head

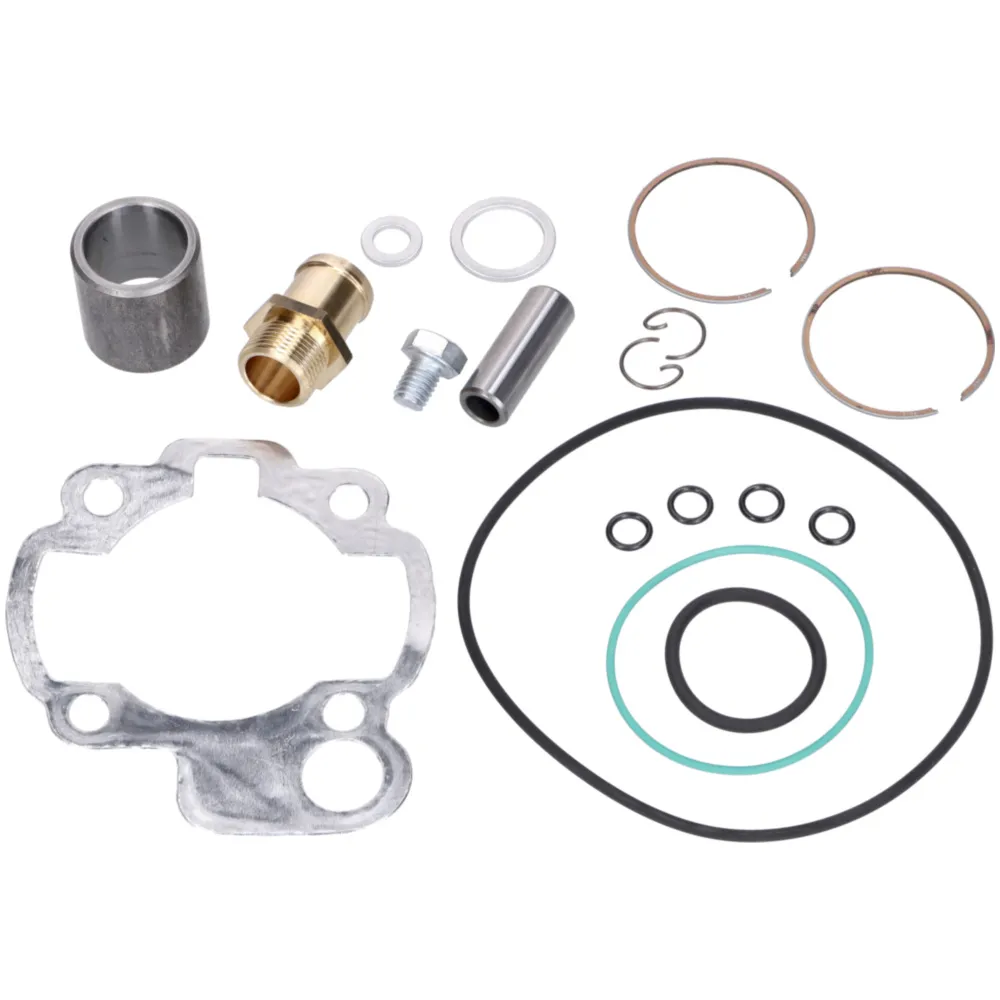

Piston, 2x piston rings
Piston pin, 2x piston pin retaining clips
Foot gasket, head gasket, O-rings
Sleeve (spacer bushing)
Washer
Screw
Water connection piece (brass)
Dimensions:
Displacement: 50ccm
Bore: 40.30mm
Piston diameter: 39.90mm
Piston pin: 12mm
Piston rings: 2
Excess flow channels: 5
Connecting rod length: 85mm (original)
The cylinder retains the original displacement of 50cc and offers a significant improvement in acceleration and a slight increase in top speed thanks to its 5 transfer ports.
Scope of delivery:
Cylinder
Cylinder head
Piston, 2x piston rings
Piston pin, 2x piston pin retaining clips
Foot gasket, head gasket, O-rings
Sleeve (spacer bushing)
Washer
Screw
Water connection piece (brass)
