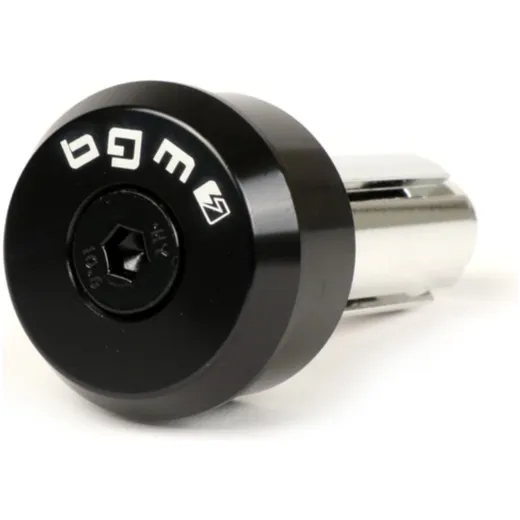

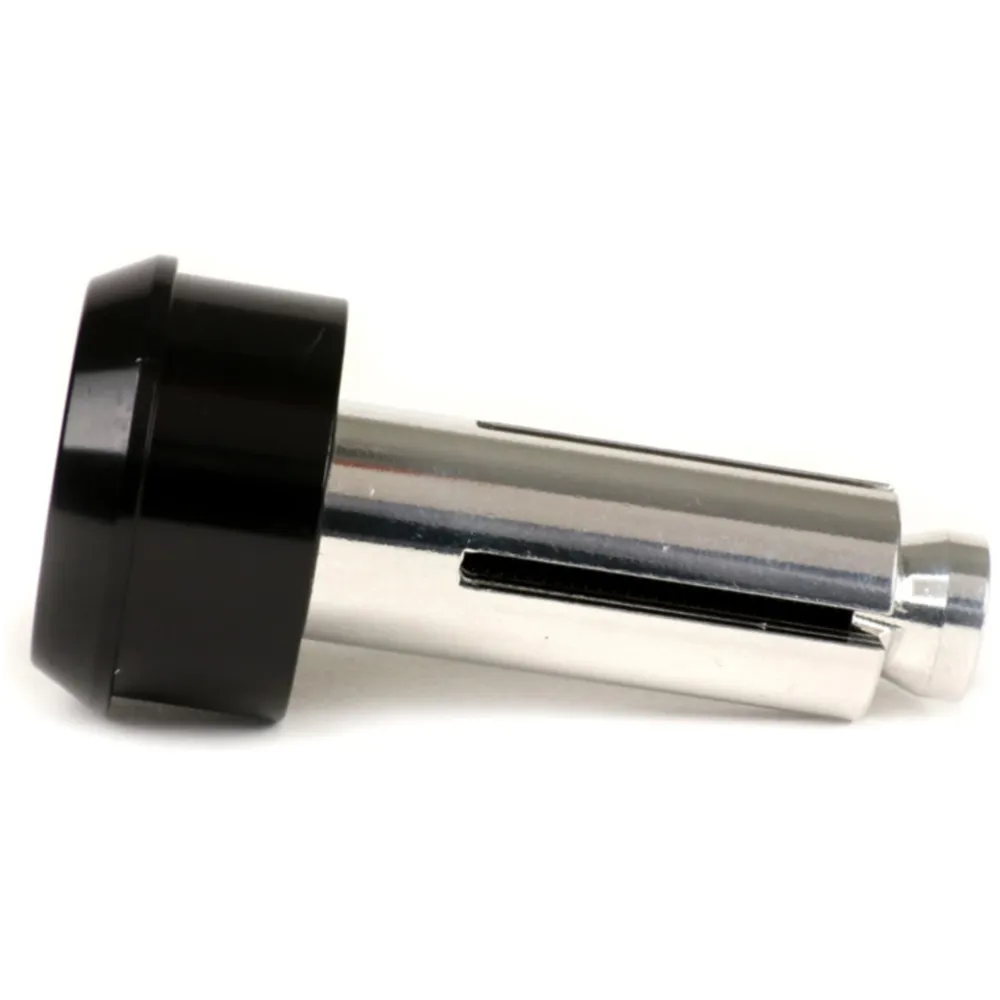

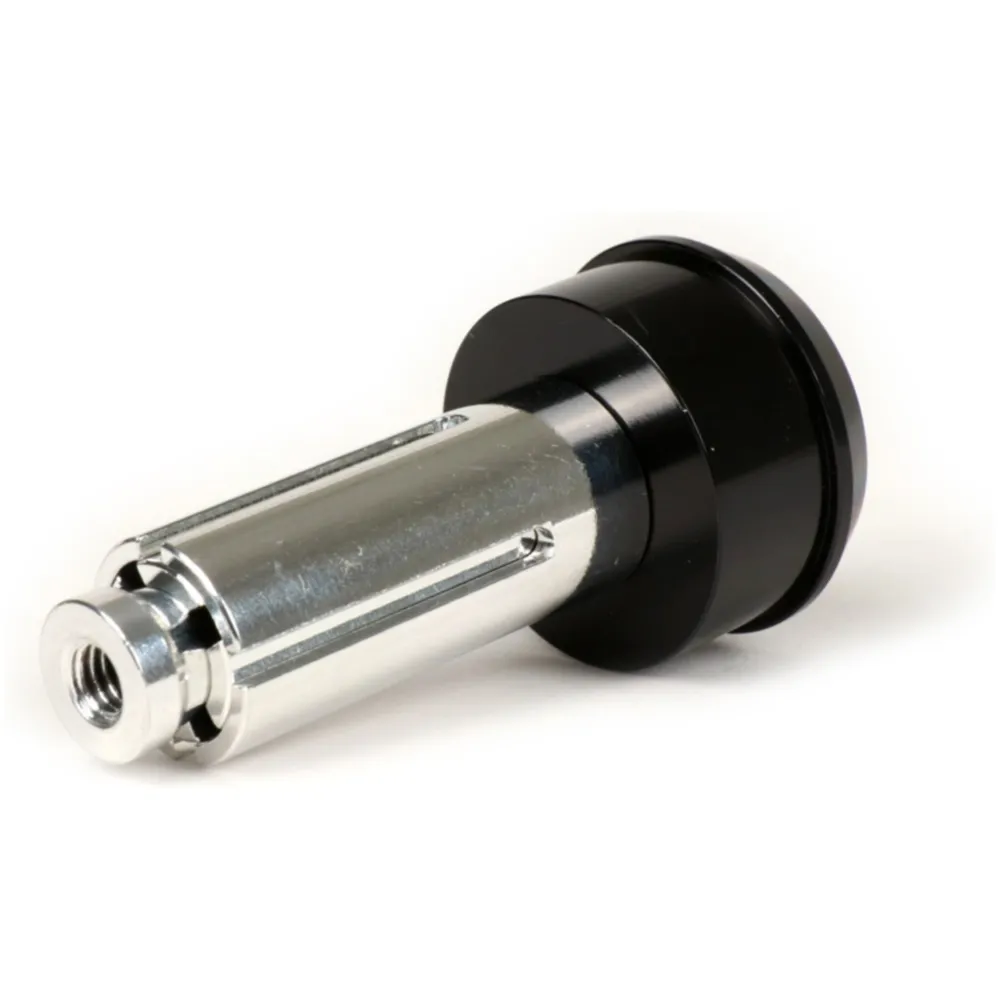

The BGM PRO mounting kit for handlebar end mirrors is universally applicable for all motorcycles and scooters. With the adapter a handlebar end mirror can be mounted quickly and easily. No modifications to the fittings or the handlebars are necessary.
(Vehicles whose rubber grips are still closed at the end can be equipped with open grips or alternatively the existing grips can be provided with an opening).
HANDLEBAR TYPE
The adapter kit has a universal design. Whether aluminium handlebars, steel handlebars, with or without internal thread, the BGM PRO mirror adapter always fits. This is made possible by a multi-part clamping sleeve, which is suitable for different handlebar inner diameters. If the handlebars already have handlebar end weights ex works, they usually have an M6 thread in the middle for fixing. Here the sleeves are not needed but the adapter is fixed directly with the screw in the handlebars. If you want to use bar end weights which are available ex works together with the adapter, you may have to use a longer screw. Please check this individually on the vehicle.
dimensions and material

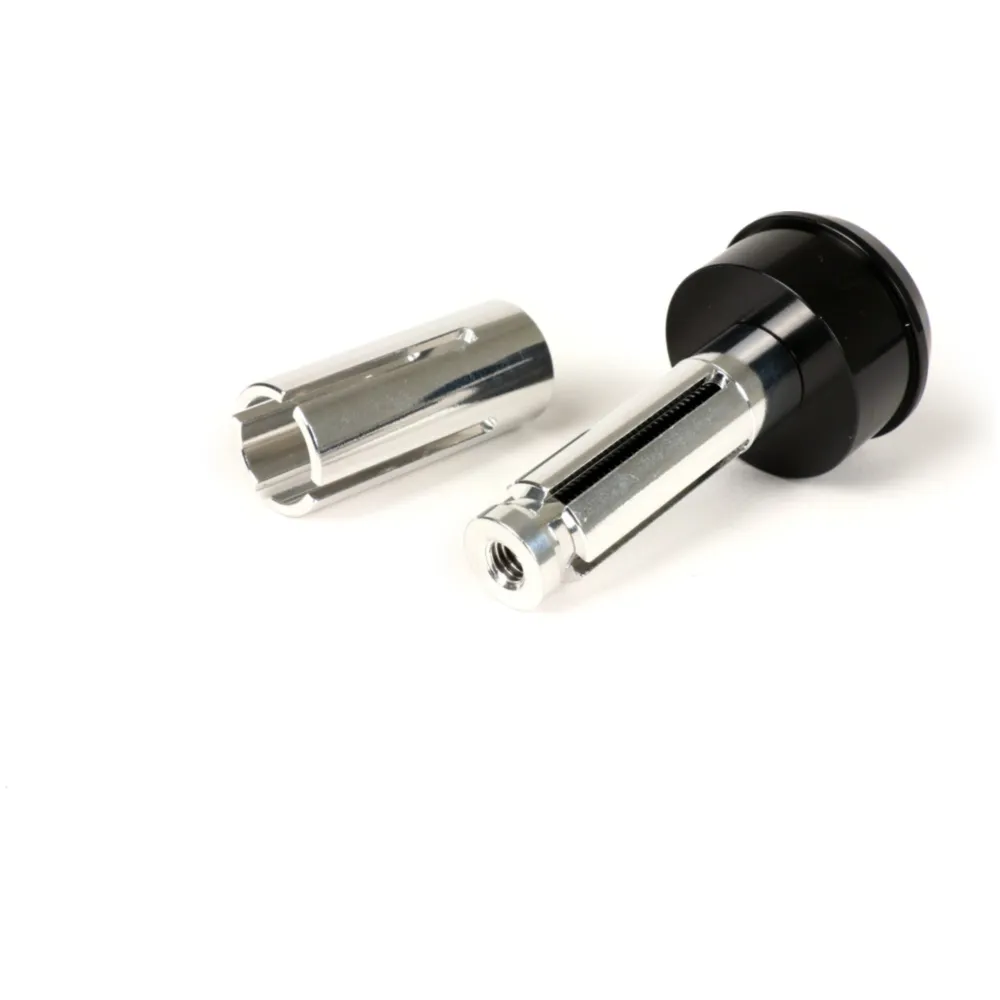

The adapter consists of high-strength aluminium which is hard anodised for perfect oxidation resistance. The enclosed clamping sleeves for mounting in an open handlebar are suitable for aluminium handlebars (use sleeve with Ø13mm) and steel handlebars (use sleeve Ø13mm + Ø17mm). The clamping is done by spreading the adapters inside the handlebars by tightening the enclosed hexagon socket screw (SW4).
- width of the clamping surface for the mirror arm: 12mm
- total width of the adapter ring: 18mm
- clamping sleeves: 1x Ø13mm, 1x Ø17mm
- screw: M6x60mm
